High Speed Multi T ray Feeder STF-100NA 用户手册 11-76 No. TECHWIN Part No. JINYOUNG Part No. Part Name Q'ty Type ( Specification) Remark 1 AM16- 001187A KJ_100NA_E_C035 ASSY,CABLE- SOLENOID-BUFFER4-100NA 1 2464 24AWG- …
A
/S
器具资材信息
11-75
SMT顶级人脉圈平台资料下载
High Speed Multi Tray Feeder STF-100NA
用户手册
11-76
No.
TECHWIN
Part No.
JINYOUNG
Part No.
Part Name Q'ty
Type
( Specification)
Remark

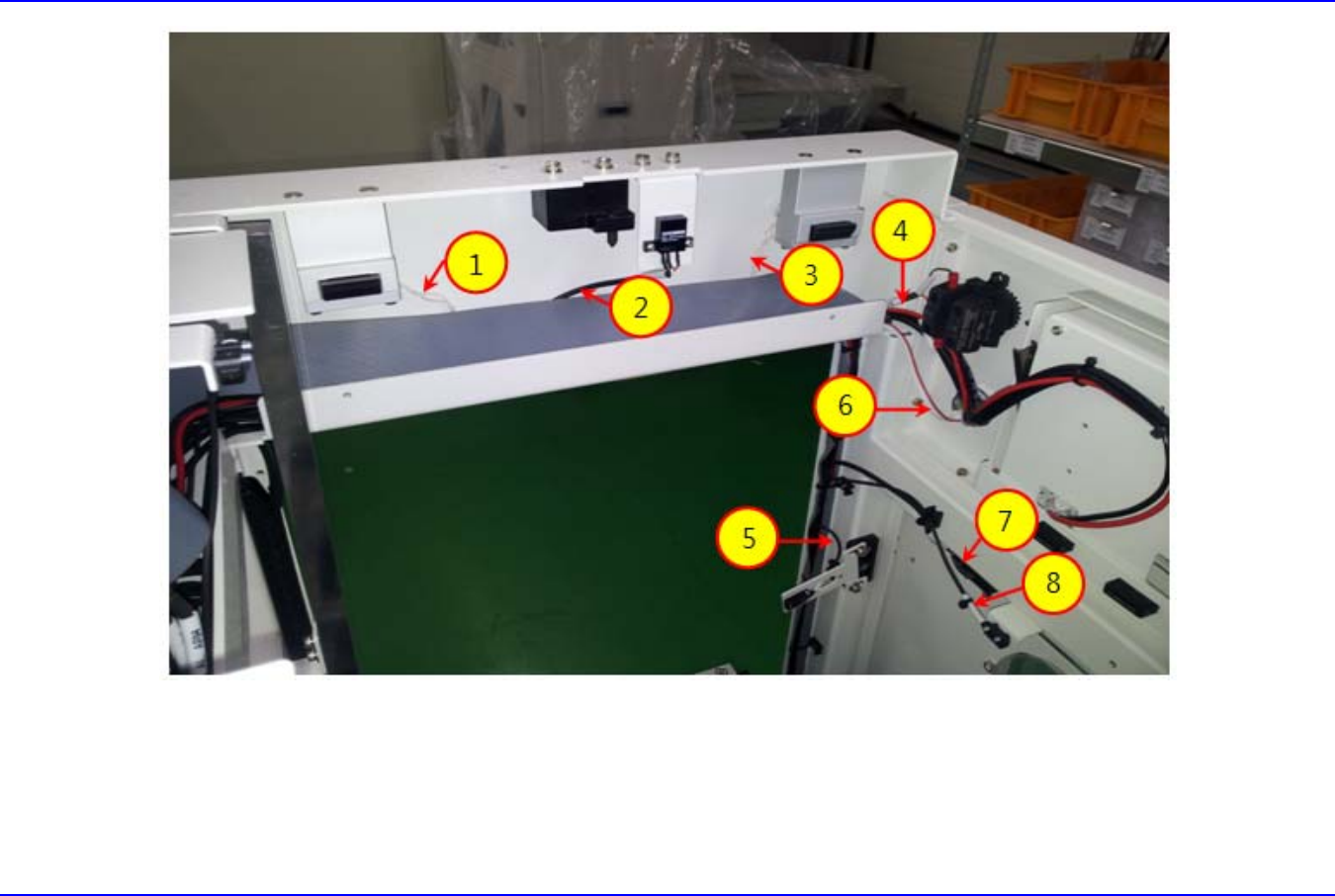

1
AM16-
001187A
KJ_100NA_E_C035 ASSY,CABLE-SOLENOID-BUFFER4-100NA 1
2464 24AWG-
3C
BSOL4
2
EP19-
001006A
KJ_100NA_E_C036
ACCESSORY,SENSOR-MICROPHOTO-100NA(BUFFER
PALLET CHECK2)
1 EE-SPY401 BPC
3
AM16-
001188A
KJ_100NA_E_C037 ASSY,CABLE-SOLENOID-BUFFER2-100NA 1
2464 24AWG-
3C
BSOL2
4
AM16-
001189A
KJ_100NA_E_C023 ASSY,CABLE-SWITCH,ETC-EMERGENCY-100NA 1
2464 24AWG-
3C
ESW
5
EP19-
000043A
KJ_100NA_E_C029
ACCESSORY,SENSOR-PHOTO-100NA
(MAGAZINE IN PALLET CHECK SENSOR)
1 E3T-FD11 MICS
6
AM16-
001190A
KJ_100NA_E_C024 ASSY,CABLE-CHANGE-SWITCH-100NA 1
2464 24AWG-
3C
LEDB/CHANGE
7
EP20-
001001A
KJ_100NA_E_C025
SWITCH,ETC-LIMIT-100NA
(FRONT DOOR SWITCH SENSOR)
1
2464 24AWG-
3C
FDSW
8
EP20-
001002A
KJ_100NA_E_C026
SWITCH,ETC-PHOTO-100NA
(BACK PALLET CHECK_ EMITTER)
1 E3T-ST11 BPCE
