High Speed Multi Tray Feeder STF-100NA
用户手册
11-90

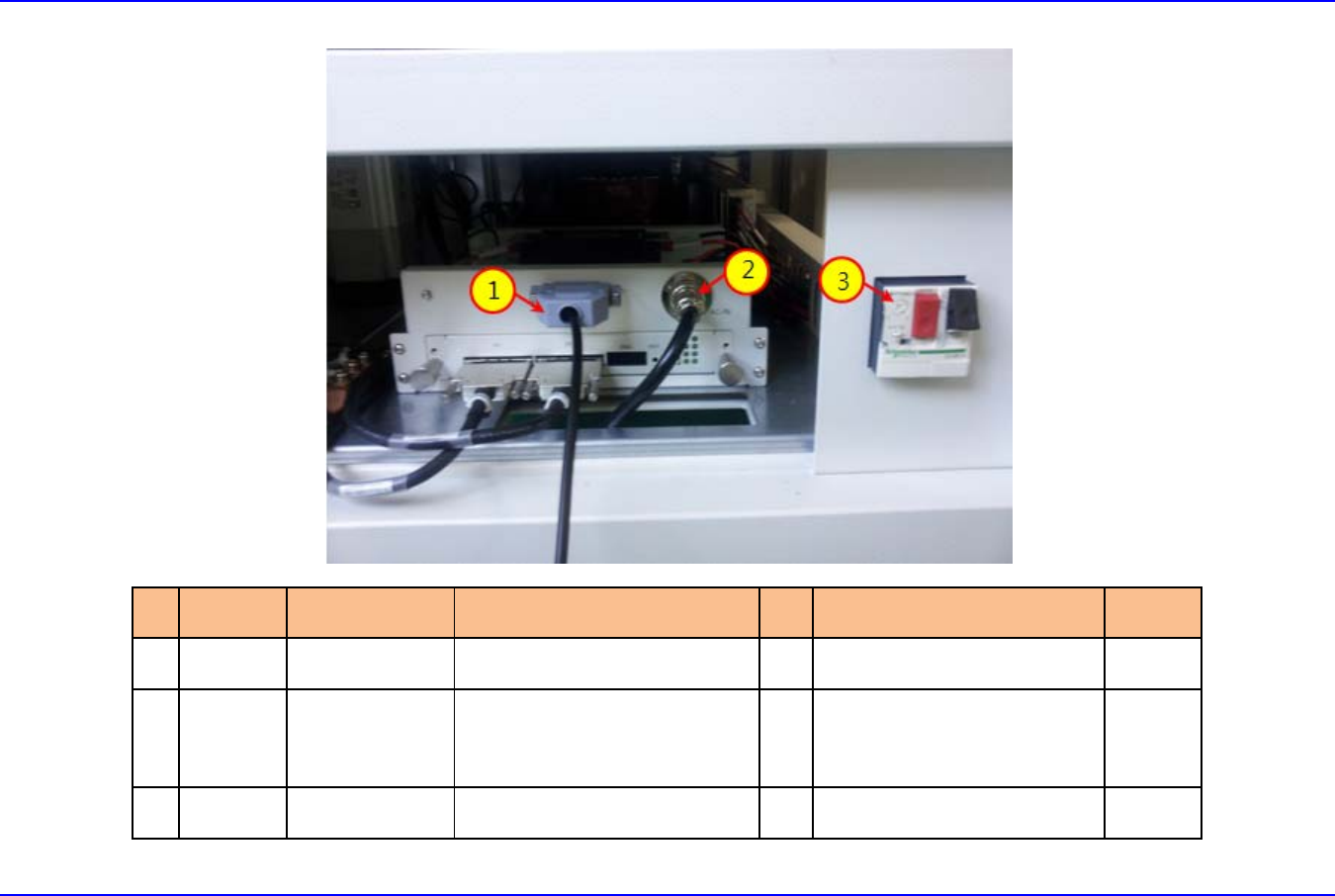

No.
TECHWIN
Part No.
JINYOUNG
Part No.
Part Name Q'ty Type ( Specification) Remark
1
AM03-
017425A
KJ_100NA_E_C076
ELEVATOR MOTOR BRAKE CABLE ASS'Y-
STF100NA
1 MFMCB0013PJT0.5M EMB
2
AM03-
017436A
KJ_100NA_E_C069
ELEVATOR MOTOR POWER CABLE ASS'Y-
STF100NA
1 MFMCA0013RJD1.3M EMP
3
AM03-
017438A
KJ_100NA_E_C066
ELEVATOR MOTOR ENCODER CABLE
ASS'Y-STF100NA
1 MFECA0013TJD1.3M EME
4
AM03-
017445A
KJ_100NA_E_C056 SMPS_AC_CABLE ASS'Y -STF100NA 1 KVI 1.5mm L41/L42
5
AM03-
017439A
KJ_100NA_E_C060 SMPS_FG_CABLE ASS'Y -STF100NA 1 KVI 1.5mm PE
6
AM16-
001182A
KJ_100NA_E_C079 ASSY,CABLE-SMPS DC5V POWER-100NA 1 KVI 1.5mm A24V/A0V
7
AM03-
017420A
KJ_100NA_E_C078 SMPS DC5V POWER CABLE ASS'Y-STF100NA 1 KVI 1.5mm B5V/B0V
SMT顶级人脉圈平台资料下载
A
/S
器具资材信息
11-91
No.
TECHWIN
Part No..
JINYOUNG
Part No.
Part Name Q'ty Type ( Specification) Remark
1
AM16-
001024A
KJ_100NA_E_C083 ASSY,CABLE-RS232-100NA 1
CABLE_ASSY-J W100N-RS232-
000
2
AM16-
001019A
KJ_100NA_E_C084 ASSY,CABLE-POWER-100NA 1
MAIN_POWER_CABLE_ASSY-
JW100N-PWRC-000
3
EP10-
001009A
KJ_100NA_E_P014
MODULE,ELECTRONIC-CIRCUIT-
BREAKER-100NA
1 GV2-ME10
SMT顶级人脉圈平台资料下载
High Speed Multi Tray Feeder STF-100NA
用户手册
11-92

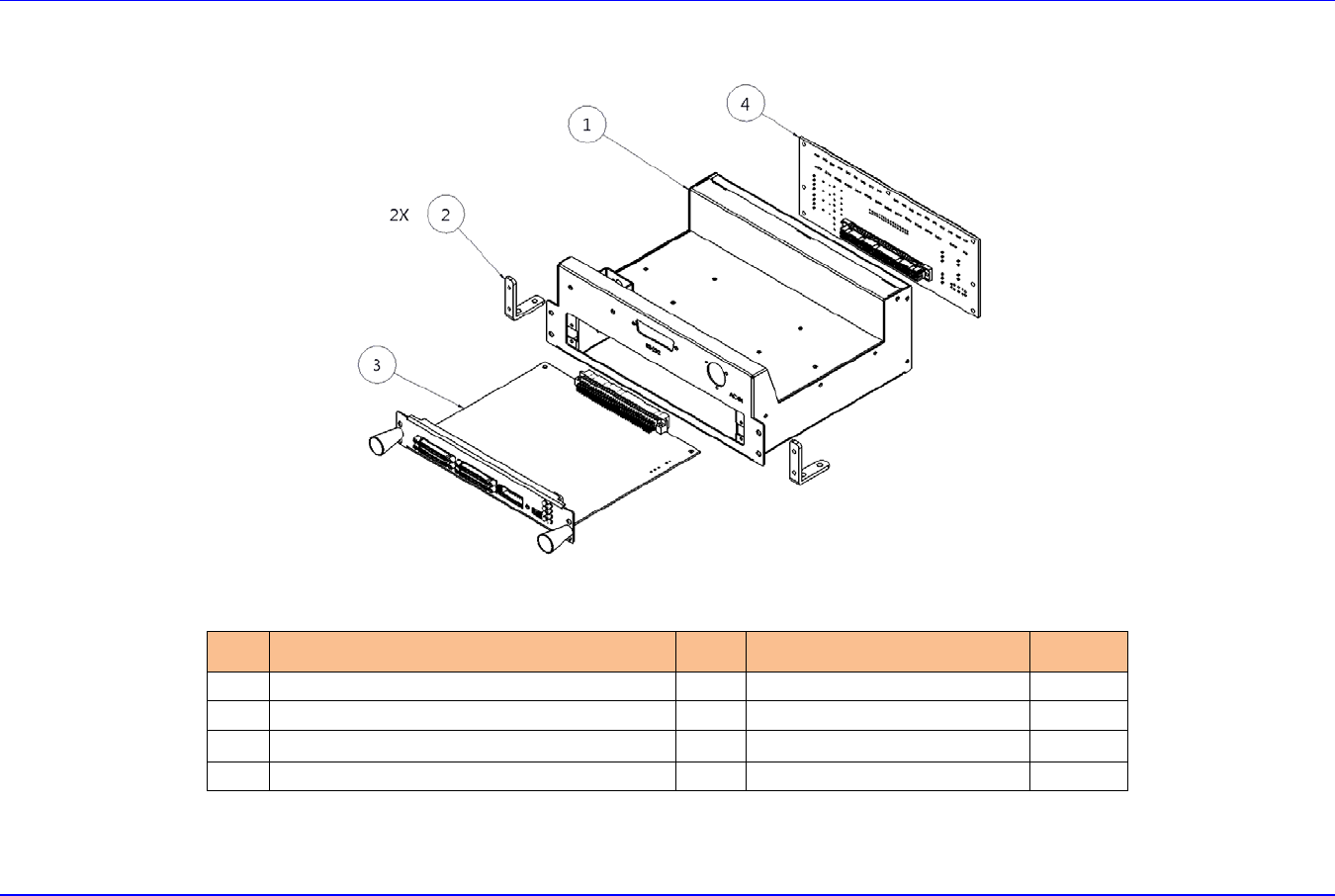

11.1.37. DSP 电路板安装方法
No. Part Name Q'ty Type ( Specification) Remark
1 BOTTOM COVER 1 238*164.5*80*1.2T
2 BRACKET 2 38*35*10*3T
3
ASSY,BOARD-MOTION_CONTROL_100NA 1 KJ-S01MBF00
4 ASSY,BOARD-IO-100NA 1 KJ_S01MOT00
* 机构部组装，请参考6.6.4 MOTION BOARD BOX。
