Service Manual: Hoses for C&P20 placement head FS02 upgraded to FS03 on SIPLACE X-series
08/2006 Edition
24

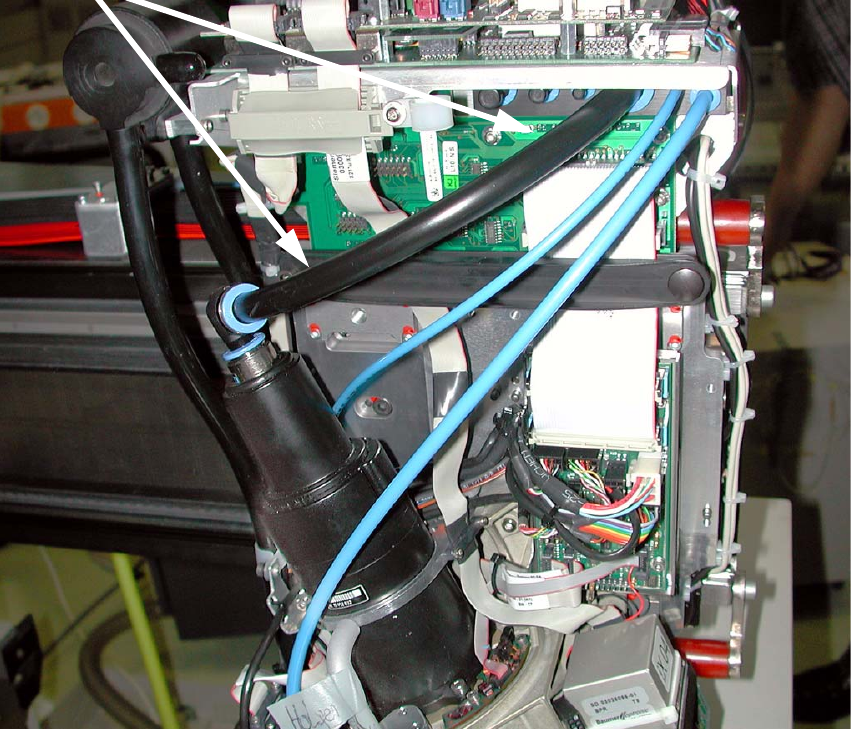

Fig. 2.8 - 2 C&P20 for compressed air or vacuum
: Attach the Ø 8 mm hose to the pressure control valve.
: Attach the Ø 6 mm hose to the return cylinder.
2
