Instruction manual SIPLACE X-Series 3 Technical data and assemblies
From software version 713.0 Edition 11/2019 3.2 Ambient conditions and connection values
109
3.2.4 Electrical ratings and energy consumption
3
PLEASE NOTE
Use of a residual current protection device
The low ground leakage current of the system makes it possible to use an upstream
residual current protection device at the customer end. This must be all-current sen-
sitive (RCD type B).
SIPLACE X2 S
Electrical ratings
Supply voltage Fuse
Main power supply 3 x 380 V~ to 3 x 415 V~ ± 10 %; 50/60 Hz
3 x 200 V~ to 3 x 220 V~ ± 10 %; 50/60 Hz
*a
3 x 16A characteristic C
3 x 15A characteristic C
*b
Mains power con-
nection
Without cable
Cable 5 x 4 mm² WITH CEE plug, red 16 A (in accordance with IEC 60309) (3 x 380 V~ to 3 x 415 V~)
Cable 5 x 4 mm² WITHOUT plug (3 x 200 V~ to 3 x 220 V)
Short circuit rating (SCCR)
*c
10 kA
Energy consumption
With a vacuum pump
*d
With two vacuum pumps
d
Without vacuum pumps
*e
Nominal apparent
power
2.5 kVA -- 1.3 kVA
Nominal active
power
1.7 kW -- 1.0 kW
SIPLACE X3 S / X 4 S / X4i S
Electrical ratings
Supply voltage Fuse
Main power supply 3 x 380 V~ to 3 x 415 V~ ± 10 %; 50/60 Hz
3 x 200 V~ to 3 x 220 V~ ± 10 %; 50/60 Hz
a
3 x 16A characteristic C
3 x 15A characteristic C
b
Mains power con-
nection
Without cable
Cable 5 x 4 mm² WITH CEE plug, red 16 A (in accordance with IEC 60309) (3 x 380 V~ to 3 x 415 V~)
Cable 5 x 4 mm² WITHOUT plug (3 x 200 V~ to 3 x 220 V)
Short circuit rating (SCCR)*
c
10 kA
Energy consumption
With one vacuum pump
d
With two vacuum pumps
d
Without vacuum pumps
e
Nominal apparent
power
2.5 kVA 3.85 kVA 1.3 kVA
Nominal active
power
1.7 kW 2.45 kW 1.0 kW
*)a With options package
*)b e.g. Siemens circuit breakers in accordance with IEC and UL 489 (order no.: 5SJ4 316-7HG42)
or
EATON Industries circuit breaker FAZ-C16/3-NA 16A 3p (UL 489, CSA C22.2 no. 5, IEC 60947-2)
*)c With the original mains connection cable. The marked short circuit rating (SCCR) relates to the beginning of the original mains
cable. In the case of customer modifications, the factory-set length of the mains cable to the placement machine may not be
shortened nor the factory-set conductor cross-section increased, as this would have a negative impact on the short circuit rating
(SCCR).
*)d Vacuum pump for the C&P20 P / C&P20 P2 head only (optional)
*)e Standard
3 Technical data and assemblies Instruction manual SIPLACE X-Series
3.3 Dimensions and weight From software version 713.0 Edition 11/2019
110
3.3 Dimensions and weight
3.3.1 Technical data - dimensions and weight
3
Length
*a
Without conveyor extension and without hand guard
Without conveyor extension and with hand guard
With conveyor extension (one end)
With conveyor extension (two ends)
1915 mm
1948 mm
2191 mm
2433 mm
Width
Outer contour of machine protection
With monitor and keyboard
*b
On the component trolley and table position "outermost" (handle folded in)
On the component trolley and table position "outermost" (handle folded
out)
2647 mm
2940 mm
2890 mm
3640 mm
Height of placement machine (for PCB conveyor height 930 mm)
Up to the top edge of the monitor
With 2-color indicator lamp
With 3-color indicator lamp
Without indicator lamp (height of packaging)
With folded-up protective covers
1630 mm
1852 mm
1893 mm
1658 mm
2120 mm
Floor clearance of placement machine
(for PCB conveyor height 900 mm)
(for PCB conveyor height 930 mm)
(for PCB conveyor height 950 mm)
195 mm ± 15 mm
225 mm ± 15 mm
245 mm ± 15 mm
Weight
SIPLACE X4i S (machine without component trolley)
SIPLACE X4i S (fully equipped with feeder modules)
SIPLACE X4 S (placement machine without component trolley)
SIPLACE X4 S (fully equipped with feeder modules)
SIPLACE X3 S (placement machine without component trolley)
SIPLACE X3 S (fully equipped with feeder modules)
SIPLACE X2 S (placement machine without component trolley)
SIPLACE X2 S (fully equipped with feeder modules)
3430 kg
4000 kg
3430 kg
4000 kg
3410 kg
3970 kg
3390 kg
3950 kg
Location
*c
5.73 m²
Load per unit area
X-Series S with 4 component trolley X 6.1 kN/m²
Number of machine feet 6
Max. noise emissions 75 dB (A)
*)a Measured at the outer contour of the machine protection.
*)b Optional
*)c Measured at the outer contour of the machine protection and at the keyboard (without conveyor extension).
Important notes
When setting up a machine (S; F, HS, HF, X or D-Series) next to a SIPLACE X-Series S, be aware that there is limited room between the
two placement machines. In these cases, use suitable conveyor extensions to create room of 0.5m for the operator between the two
machines.
To achieve top placement performance, fit the first placement machine in a SIPLACE X-Series S line with an input conveyor extension and
the last placement machine in the line with an output conveyor extension.
Instruction manual SIPLACE X-Series 3 Technical data and assemblies
From software version 713.0 Edition 11/2019 3.3 Dimensions and weight
111
3.3.1.1 Overview of dimensions
3

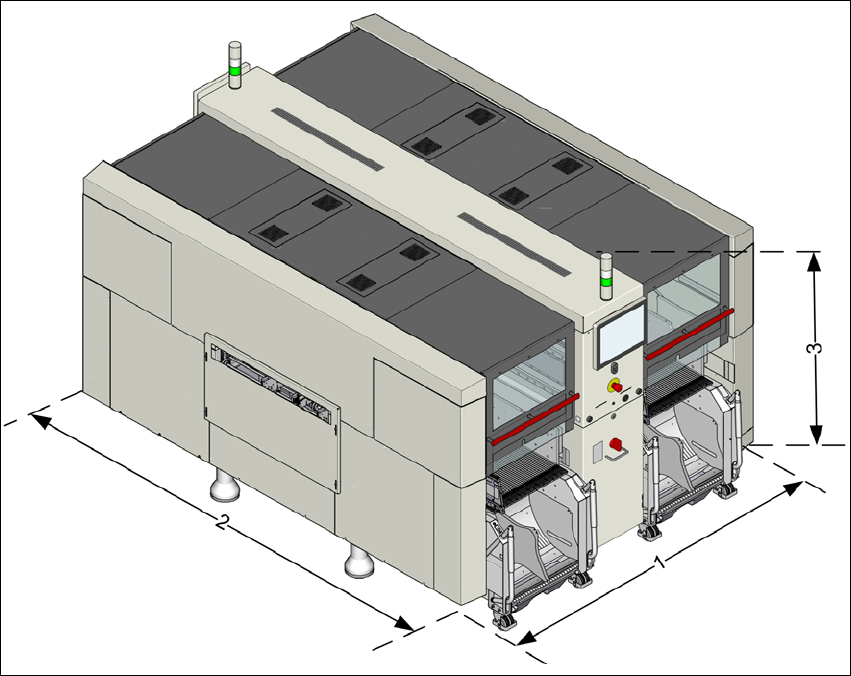

Fig. 3.3 - 1 Overview of dimensions - example X2 S / X3 S / X4 S
Example:
(1) Length = 1948 mm
(2) Width = 2647 mm
(3) Height = 1852 mm
