4 Setting up and commissioning
4.1 Transportation and delivery configuration
4.1.1 Shipping packaging
Within Europe, the placement machine and component trolleys will be shipped on two wooden
pallets, packaged in plastic film. Outside Europe, the placement machine and component trolleys
are supplied in wooden crates.
4.1.1.1 Shipping packaging dimensions
The dimensions of the pallets and wooden crates are listed in the following table:
4

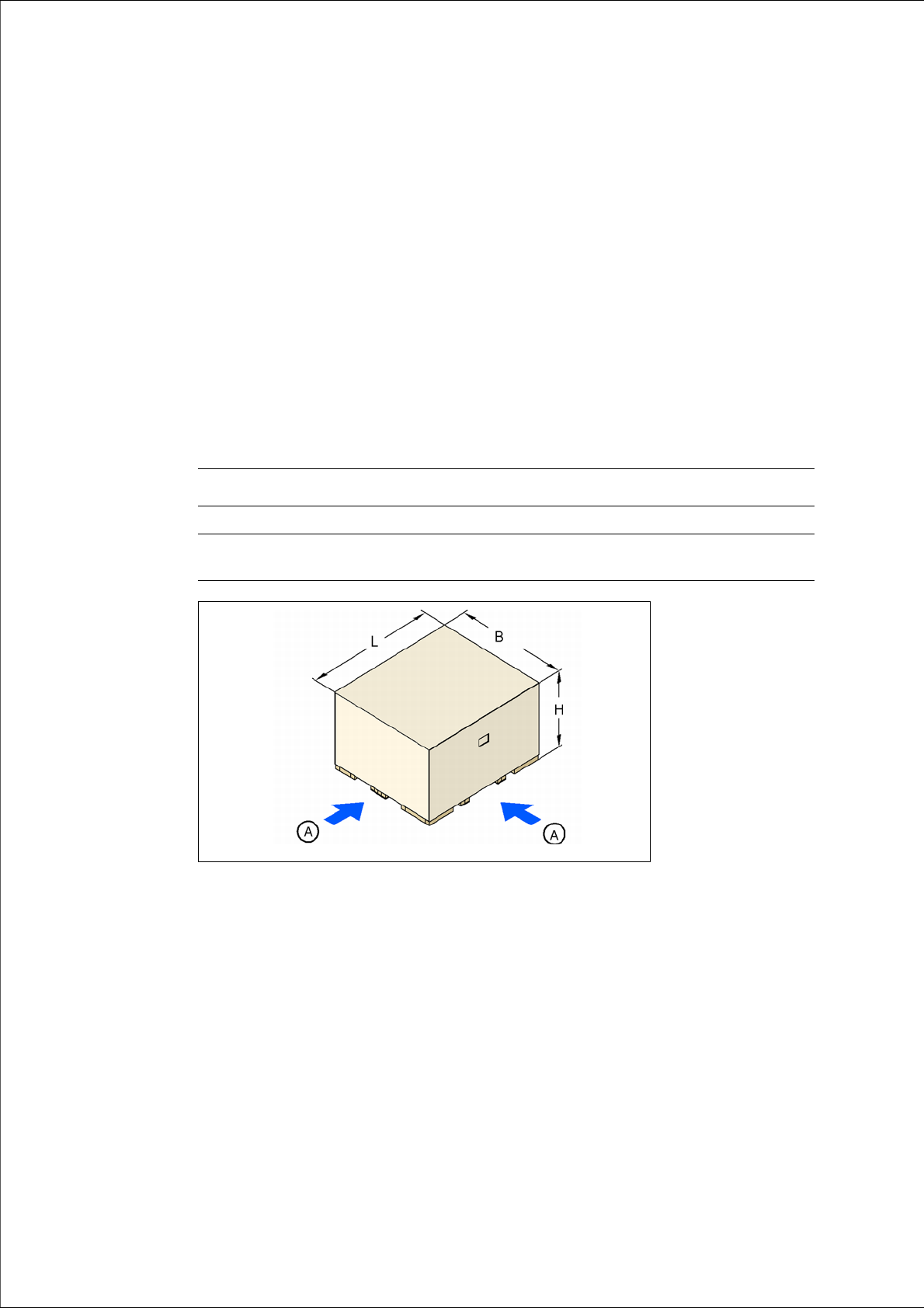

Fig. 4.1 - 1 Transport crate - dimensions in millimeters
(A) Fork-lift attachment points
Placement machine (L x W x H) Component trolley
Pallet 2790 mm x 2404 mm 2060 mm x 1350 mm
Wooden
crate
2790 mm x 24040 mm x 1600 mm 2060 mm x 1350 mm x 1300 mm
4 Setting up and commissioning Instruction manual SIPLACE X-Series S
4.1 Transportation and delivery configuration From software version 713.0 Edition 11/2019
184
4.1.1.2 Weight of machine when ready for dispatch
The following table contains the weights of the placement machines prepared for dispatch, includ-
ing packaging.
4
4.1.2 Checking a delivery
Store the placement machine in the packaging until room temperature has been reached.
There is otherwise a risk of condensation occurring.
Check the delivery for damage.
Check the shock sensors on the transportation crate.
Unpack the machine and the accessories and check the delivery for completeness (reference
delivery note).
Document the results in the installation report /acceptance protocol.
4.1.3 Configuration when delivered
The placement machine is configured as follows when delivered:
– The lanes of the dual conveyor are set to a width of 210 mm. This width setting will be import-
ant when fine-tuning the placement machine.
– Both monitors are dismantled.
– Both indicator lamps are dismantled.
– All the gantry axes are fixed with shipping braces.
Placement
machine
Dispatch within Europe Dispatch overseas
X-Series S 4,004 kg 4,504 kg
Component trolley 470 kg 550 kg
Instruction manual SIPLACE X-Series S 4 Setting up and commissioning
From software version 713.0 Edition 11/2019 4.1 Transportation and delivery configuration
185
4

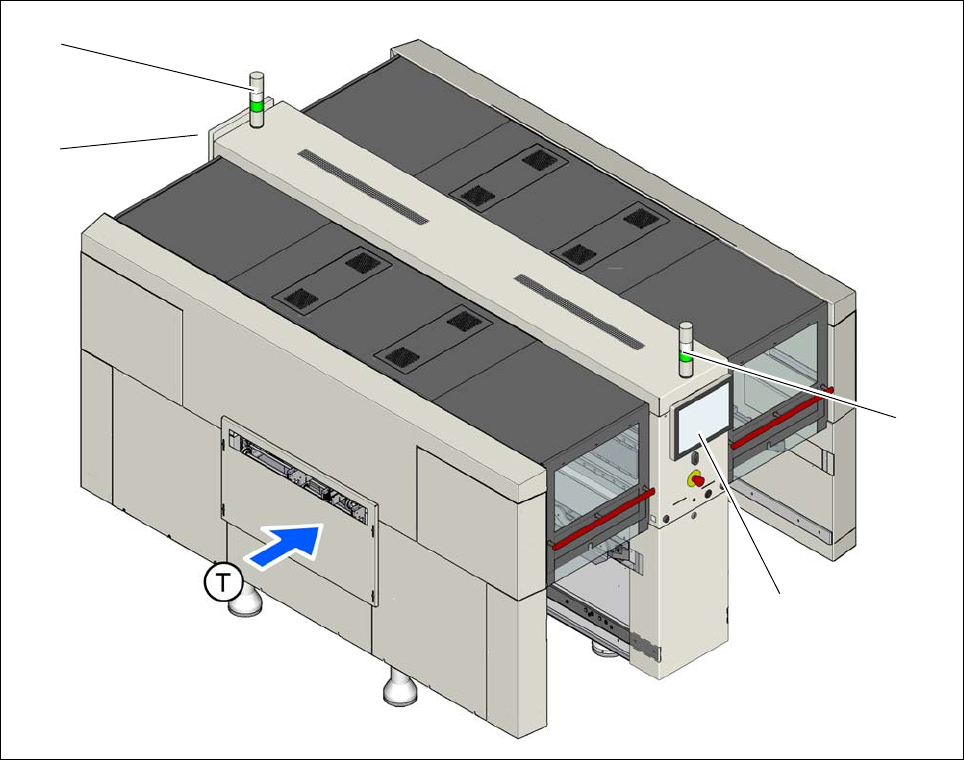

Fig. 4.1 - 2 Configuration when delivered (example of SIPLACE X2 S / X3 S / X4 S shown)
(1) Signal lamp (dismantled)
(2) Monitor (dismantled)
(T) PCB transport direction
(1)
(2)
(1)
(2)
