Instruction manual SIPLACE X-Seri es S 4 Setting up and commissioning From software version 713.0 Edition 11/2019 4.2 In frastructure at the in stallation location 199 4.2.3.6 Mains connection - mains connec tion cable W…
4 Setting up and commissioning Instruction manual SIPLACE X-Series S
4.2 Infrastructure at the installation location From software version 713.0 Edition 11/2019
198
Connect L1,L2, L3, N and PE to the mains connection terminals X94 (item 1) in fig. 4.2 - 4,
page 197
. Make sure that the connection terminal is not damaged when you insert the wire
into it.
4
Hand-tighten the cable fixture (item 2) in fig. 4.2 - 4, page197.
Make sure that the wires and the cable do not rub or get caught anywhere.
Fix the wires and the cable into place with cable ties, if needed.
4.2.3.5 Mains connection - mains connection cable WITH plug (configuration 2)
The placement machine is supplied with an approx. 5 m mains connection cable WITH a CEE
plug, red 16 A (in accordance with IEC 60309).
4
– The machine is configured for voltages of 3 x 380 V~ to 3 x 415 V ± 10 %, 50/60 Hz.
4

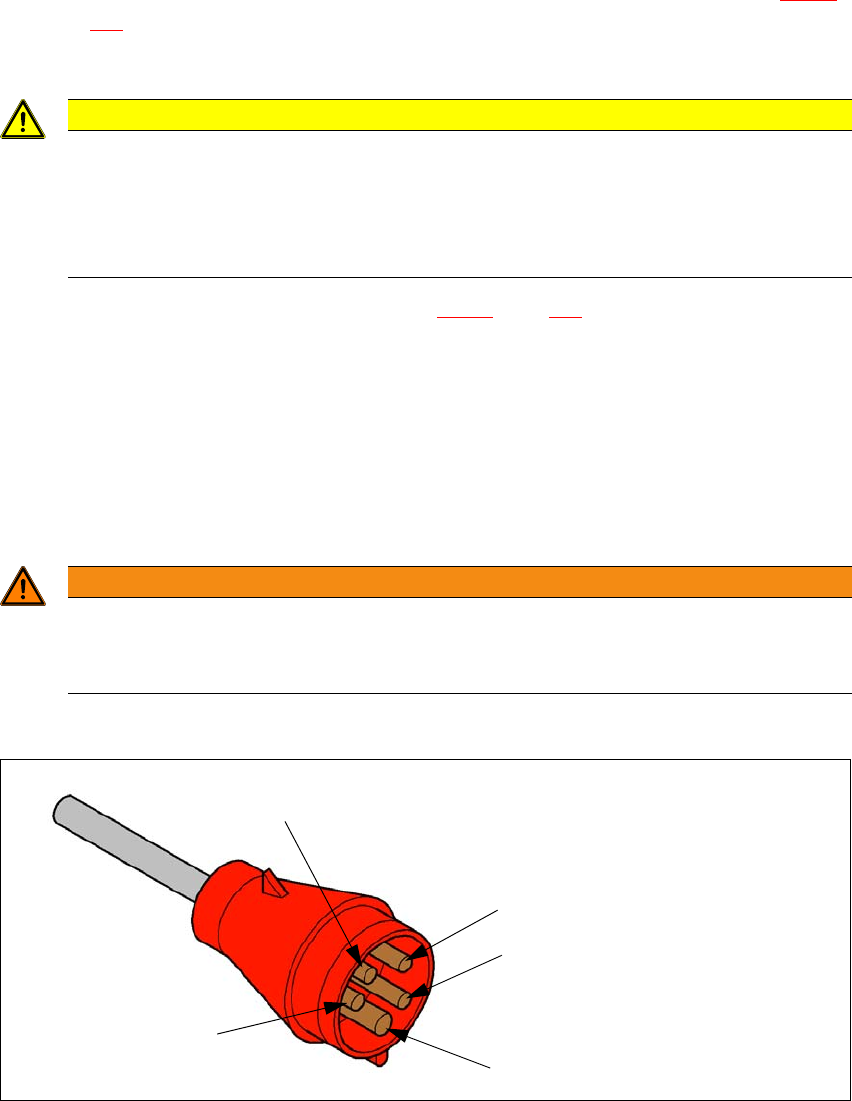

Fig. 4.2 - 5 Assignment in the CEE plug
CAUTION
Pay attention to correct phase sequence!
Pay attention to correct phase sequence. Incorrect phase sequence could lead to mal-
functions and cause damage to the vacuum pump! Check the vacuum pump (s) for cor-
rect direction of running when putting the placement machine into action.
Check the PE connection on the placement machine for correct function.
WARNING
The mains connection cable may only be connected by a qualified electrician.
The mains connection cable may only be connected by a qualified electrician.
The regulations of the country in which the placement machine is operated apply.
PE
L1
L2
L3
N
Instruction manual SIPLACE X-Series S 4 Setting up and commissioning
From software version 713.0 Edition 11/2019 4.2 Infrastructure at the installation location
199
4.2.3.6 Mains connection - mains connection cable WITHOUT plug (configuration 3)
The placement machine is supplied with an approx. 5m mains connection cable WITHOUT plug.
4
– The placement machine is configured for voltages of 3 x 200 V~ to 3 x 220 V~ ± 10 %; 50/60
Hz.
4

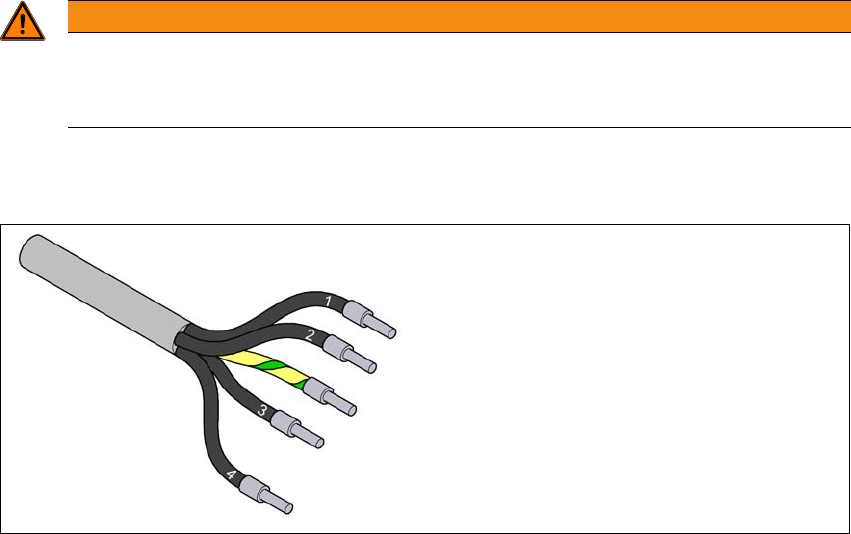

Fig. 4.2 - 6 Description of wires in the mains power cable
WARNING
The mains connection cable may only be connected by a qualified electrician.
The mains connection cable may only be connected by a qualified electrician.
The regulations of the country in which the placement machine is operated apply.
1 = (L1): three-phase
2 = (L2): three-phase
3 = (L3): three-phase
4 = (N): neutral conductor
green/yellow = (PE): conductor
4 Setting up and commissioning Instruction manual SIPLACE X-Series S
4.2 Infrastructure at the installation location From software version 713.0 Edition 11/2019
200
4.2.4 Overview of the microfuses
4

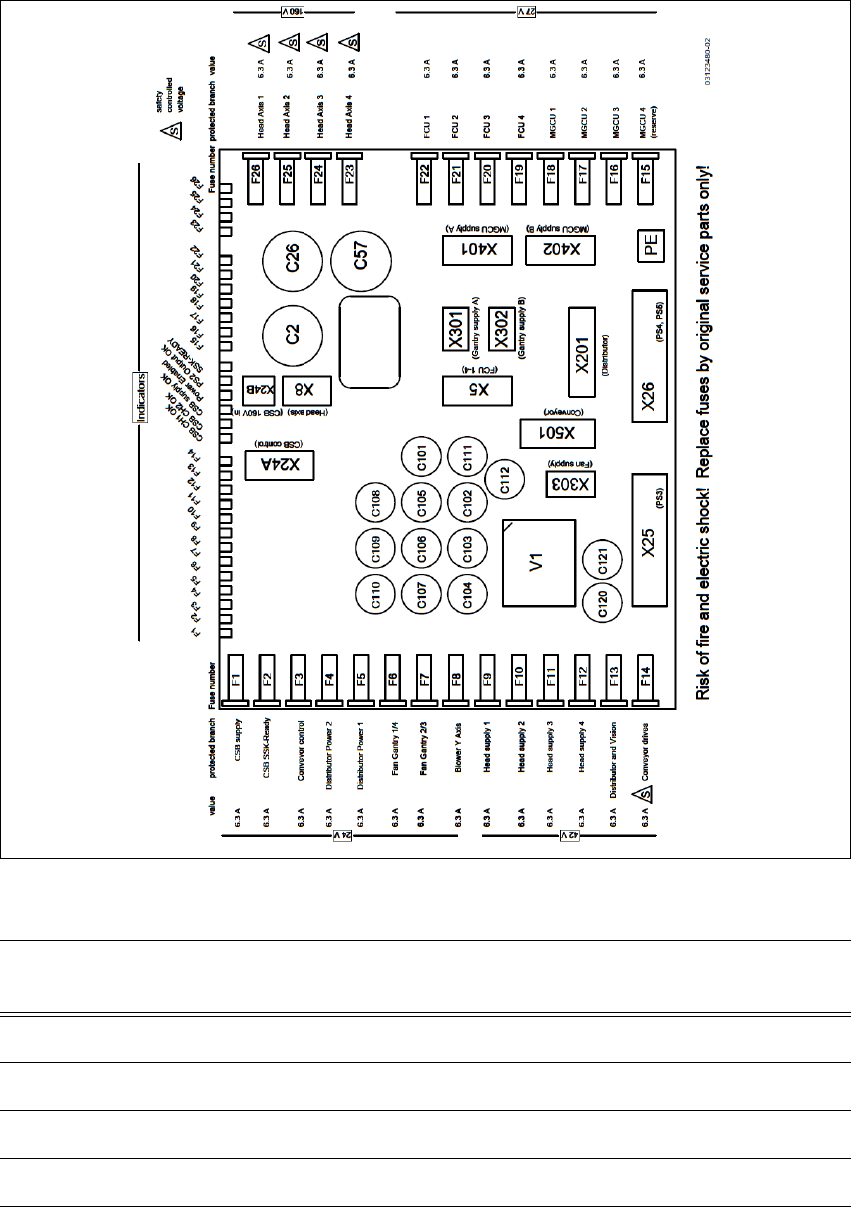

Fig. 4.2 - 7 Overview of the microfuses
4
Fuse Components Electricity
[A]
Voltage [V]
F1 CSB supply 6,3 24
F2 SSK-Ready CSB 6,3 24
F3 Conveyor control 6,3 24
F4 Distributor power 2 6,3 24
