Instruction manual SIPLACE X-Seri es S 4 Setting up and commissioning From software version 713.0 Edition 11/2019 4 .6 Commissioning the placement machine 229 4.6.3 Instructing the customer's personnel  Explain all…

4 Setting up and commissioning Instruction manual SIPLACE X-Series S

4.6 Commissioning the placement machine From software version 713.0 Edition 11/2019

228

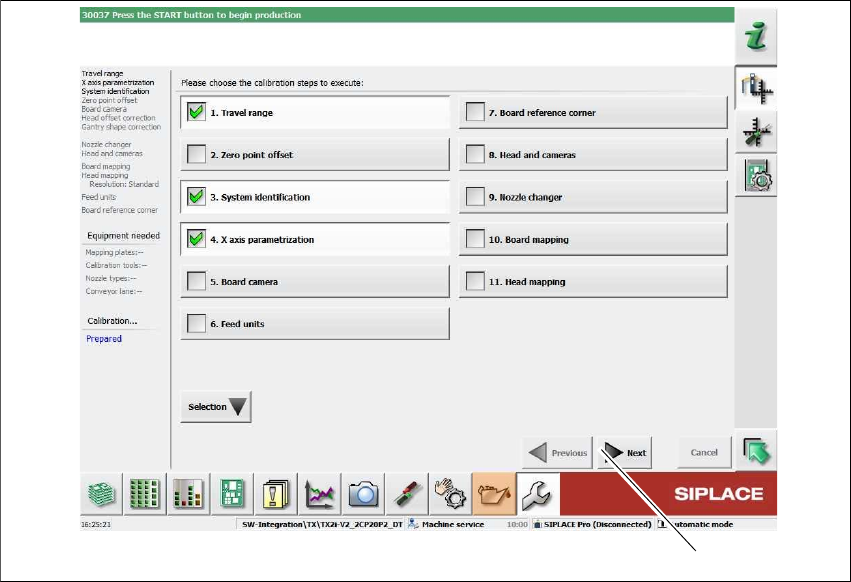

Fig. 4.6 - 2 Service tools => automatic calibration => calibrating the gantry axes (example)

The following calibration steps are enabled:

– 1. Travel range

– 3. System identification

– 4. Parameterization X axis

 Click on Next (1).

The calibration must be completed without errors.

(1)

Instruction manual SIPLACE X-Series S 4 Setting up and commissioning

From software version 713.0 Edition 11/2019 4.6 Commissioning the placement machine

229

4.6.3 Instructing the customer's personnel

 Explain all customer-specific installed options, in particular software / software compatibility.

 Explain the programming of SIPLACE Pro editors.

 Instruct the operators and line engineers in using the station software.

 Explain about password protection.

 Instruct the customer's personnel according to the instruction manual and the preventive

maintenance.

4.6.4 A test run or starting production

 Test the line using the test PCB or a PCB provided by the customer.

 Record the customer product and performance data, prepare the data and document the data

in the installation report.

 Secure the data and give the customer security copies.
