5.7.2 Status displays and their meanings
5.7.2.1 Configuration of three-color indicator lamp and audio signal

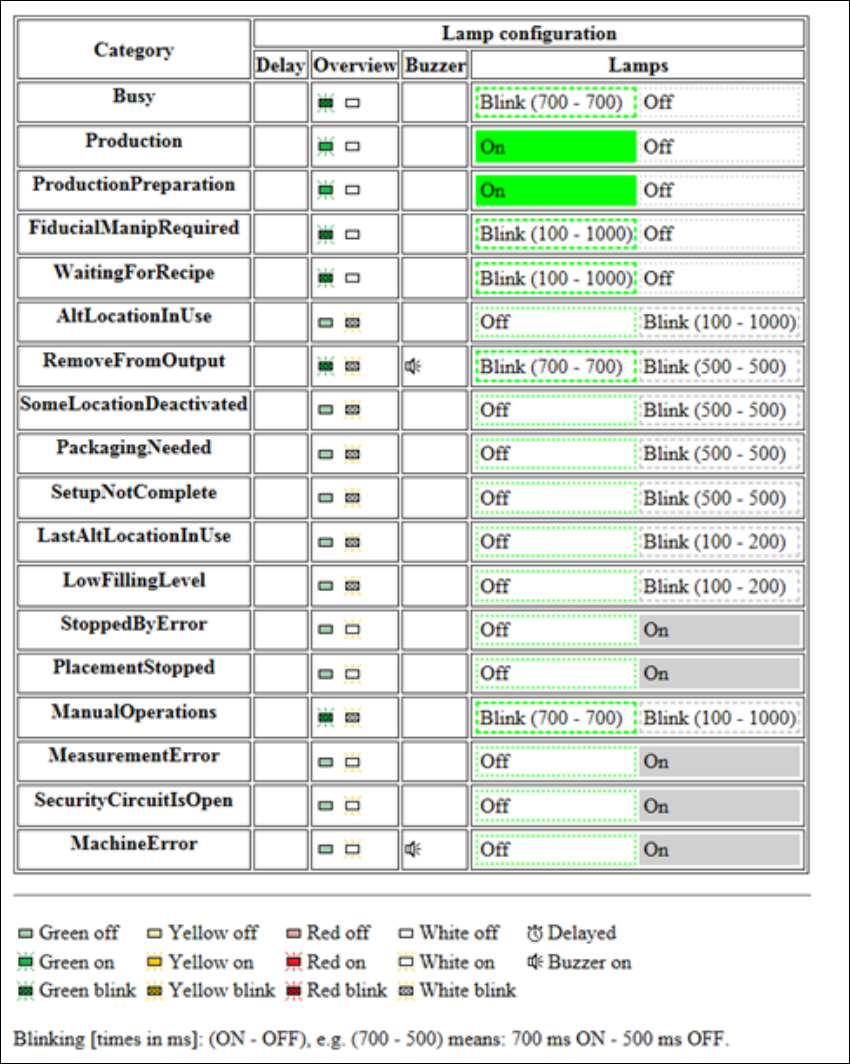

Fig. 5.7 - 3 Configuration of three-color indicator lamp and audio signal
5 Tasks at the placement machine Instruction manual SIPLACE X-Series S
5.7 Indicator lamps with horn From software version 713.0 Edition 11/2019
256
5.7.2.2 Configuration of three-color indicator lamp with delay and audio signal
Fig. 5.7 - 4 Configuration of three-color indicator lamp and audio signal
Instruction manual SIPLACE X-Series S 5 Tasks at the placement machine
From software version 713.0 Edition 11/2019 5.7 Indicator lamps with horn
257
5.7.2.3 Configuration of two-color indicator lamp and audio signal (optional)
Fig. 5.7 - 5 Configuration of two-color indicator lamp and audio signal
