There are four locations available for supplying components. These can be fitted with component
trolleys and configured with up to 40 tracks.
The SIPLACE X2 S placement machine has two gantries. The gantry in placement area 1 points
to location 4. The gantry in placement area 2 points to location 2.
These can be quickly and accurately positioned by linear motors, moving independently of one
another in the X and Y directions.
1.2.4.1 Overview of placement head configuration
1
CPP_H = SIPLACE Multistar CPP in high assembly position
CPP_L = SIPLACE Multistar CPP in low assembly position
Placement area 1 Placement area 2
C&P20 P C&P20 P
C&P20 P CPP_L
C&P20 P CPP_H
C&P20 P2 C&P20 P2
C&P20 P2 CPP_L
C&P20 P2 CPP_H
CPP_L CPP_L
CPP_H CPP_H
CPP_L CPP_H
C&P20 P TH
C&P20 P2 TH
CPP_L TH
CPP_H TH
TH TH
Instruction manual SIPLACE X-Series S 1 Introduction
From software version 713.0 Edition 11/2019 1.2 Placement machine description
27
1.2.5 Placement machine serial number
The serial number of the placement machine can be found on the inside of the machine frame at
location 1.
1

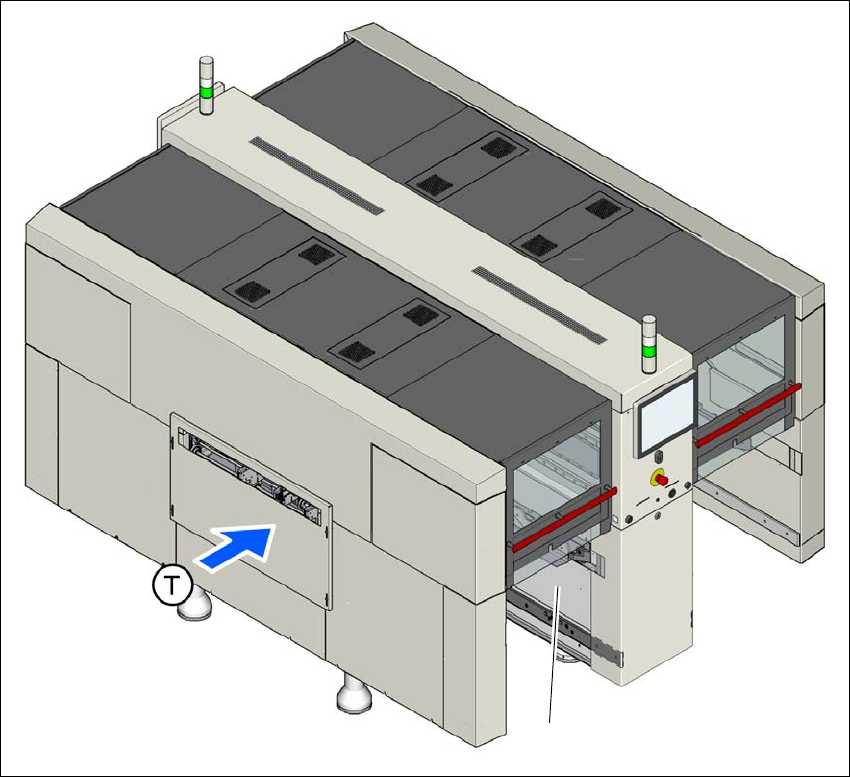

Fig. 1.2 - 5 Position of typeplate with serial number (example of SIPLACE X2 S / X3 S / X4 S machine shown)
(T) Direction of travel
(1) Typeplate
(1)
1 Introduction Instruction manual SIPLACE X-Series S
1.2 Placement machine description From software version 713.0 Edition 11/2019
28
1.2.6 EC Declaration of conformity
The product described below:
1
Manufactured by
ASM Assembly Systems GmbH&Co.KG
Rupert-Mayer-Str. 44
81379 Munich 1
conforms to the regulations and standards listed in the EC Declaration of
Conformity provided.
1.2.7 Use as prescribed
The product may only be used for the areas of application specified in the catalogues and techni-
cal descriptions i.e. for the placement of SMD components and may only be used together with
the third party devices and components recommended or approved by ASM Assembly Systems
GmbH & Co. KG. Use for a different or extended purpose is not prescribed.
In the case of incorrect usage, ASM Assembly Systems GmbH & Co. KG will not assume liability
for any damage which occurs and will not guarantee the correct and proper function of machine
components.
Use as prescribed also includes compliance with all the instructions in the instruction manual.
For the product to operate correctly and reliably, it must have been transported, stored, erected
and assembled correctly and must be operated and maintained with care.
Product
Placement machine
Type SIPLACE X4i S SIPLACE X4 S SIPLACE X3 S SIPLACE X2 S
Item no.: 520440 520480 520310 520210
