Instruction manual SIPLACE X-Series S 6 Station extensions
From software version 713.0 Edition 11/2019 6.1 Nozzle changer
293
6.1.1.7 Nozzle changer "row 2" for the SIPLACE SpeedStar
The "nozzle changer for row 2" option enables you to configure an additional row of nozzle chang-
ers for the SIPLACE SpeedStar C&P20 P / C&P20 P2. The retrofit package contains the nozzle
changer and an assembly kit.
6.1.2 Nozzle changer for the SIPLACE MultiStar CPP
6.1.2.1 Nozzle changer with 4 magazines
Item no. 03103649-xx Nozzle changer basic assembly CP/all - short
Item no. 03066107-xx Nozzle magazine 20xx with 20 garages
Item no. 03065782-xx Nozzle magazine 28xx with 20 garages
6

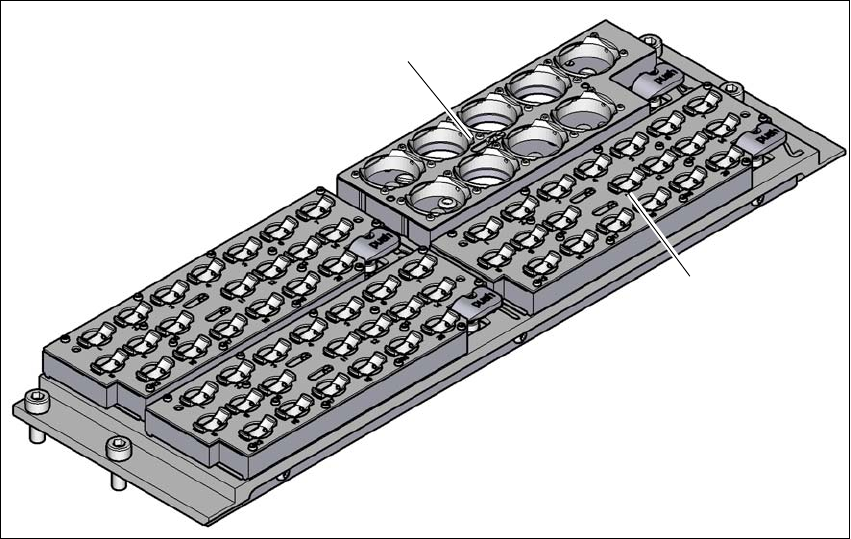

Fig. 6.1 - 6 Nozzle changer for the SIPLACE MultiStar CPP with 4 magazines
(1) Nozzle magazine for 20xx nozzles
(2) Nozzle magazine for 28xx nozzles
(1)
(2)
6 Station extensions Instruction manual SIPLACE X-Series S
6.1 Nozzle changer From software version 713.0 Edition 11/2019
294
6.1.2.2 Nozzle changer with 6 magazines
Item no. 03103514-xx Nozzle changer basic assembly CP/all - long
Item no. 03066107-xx Nozzle magazine 20xx with 20 garages
Item no. 03065782-xx Nozzle magazine 28xx with 20 garages
6

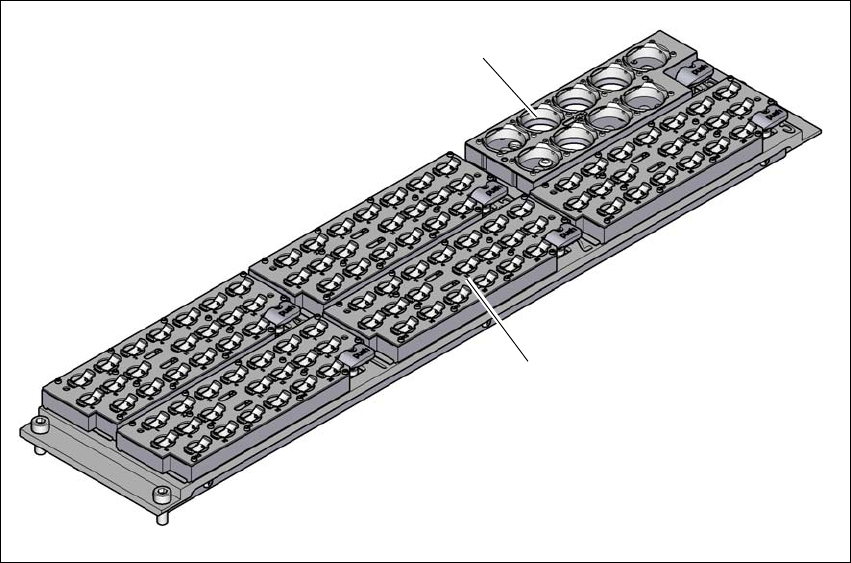

Fig. 6.1 - 7 Nozzle changer for the SIPLACE MultiStar CPP with 6 magazines
(1) Nozzle magazine for 20xx nozzles
(2) Nozzle magazine for 28xx nozzles
(1)
(2)
Instruction manual SIPLACE X-Series S 6 Station extensions
From software version 713.0 Edition 11/2019 6.1 Nozzle changer
295
6.1.2.3 Nozzle magazine with 20 garages for 20xx nozzles
6

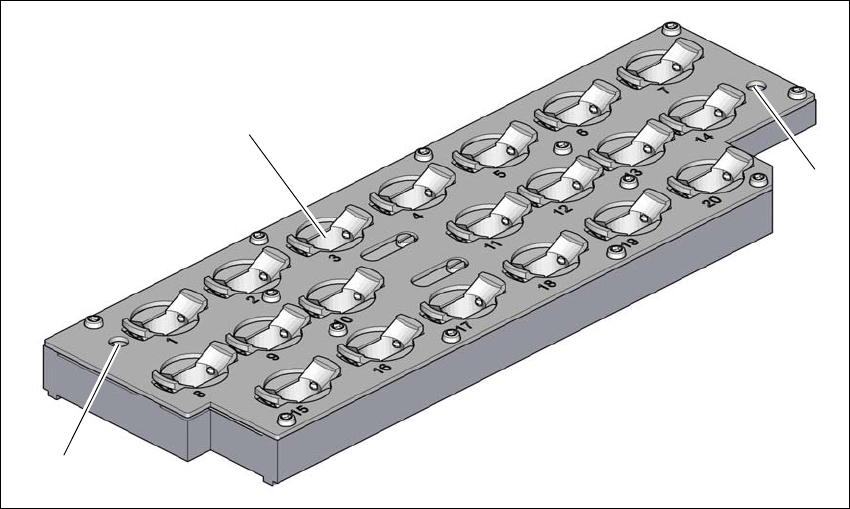

Fig. 6.1 - 8 Nozzle magazine for 20xx nozzles with 20 garages - locking plate open
(1) 20 garages for 20xx nozzles
(2) Fiducials (only visible when locking plate open)
(2)
(1)
(2)
