Instruction manual SIPLACE X-Series S 6 Station extensions From software version 713.0 Edition 11/2019 6.1 Nozzle changer 295 6.1.2.3 Nozzle magazine with 20 garages for 20xx nozzles 6 Fig. 6.1 - 8 Nozzle magazine for 20…
6 Station extensions Instruction manual SIPLACE X-Series S
6.1 Nozzle changer From software version 713.0 Edition 11/2019
294
6.1.2.2 Nozzle changer with 6 magazines
Item no. 03103514-xx Nozzle changer basic assembly CP/all - long
Item no. 03066107-xx Nozzle magazine 20xx with 20 garages
Item no. 03065782-xx Nozzle magazine 28xx with 20 garages
6
Fig. 6.1 - 7 Nozzle changer for the SIPLACE MultiStar CPP with 6 magazines
(1) Nozzle magazine for 20xx nozzles
(2) Nozzle magazine for 28xx nozzles
(1)
(2)
Instruction manual SIPLACE X-Series S 6 Station extensions
From software version 713.0 Edition 11/2019 6.1 Nozzle changer
295
6.1.2.3 Nozzle magazine with 20 garages for 20xx nozzles
6
Fig. 6.1 - 8 Nozzle magazine for 20xx nozzles with 20 garages - locking plate open
(1) 20 garages for 20xx nozzles
(2) Fiducials (only visible when locking plate open)
(2)
(1)
(2)
6 Station extensions Instruction manual SIPLACE X-Series S
6.1 Nozzle changer From software version 713.0 Edition 11/2019
296
6.1.2.4 Nozzle magazine for 28xx nozzles
6

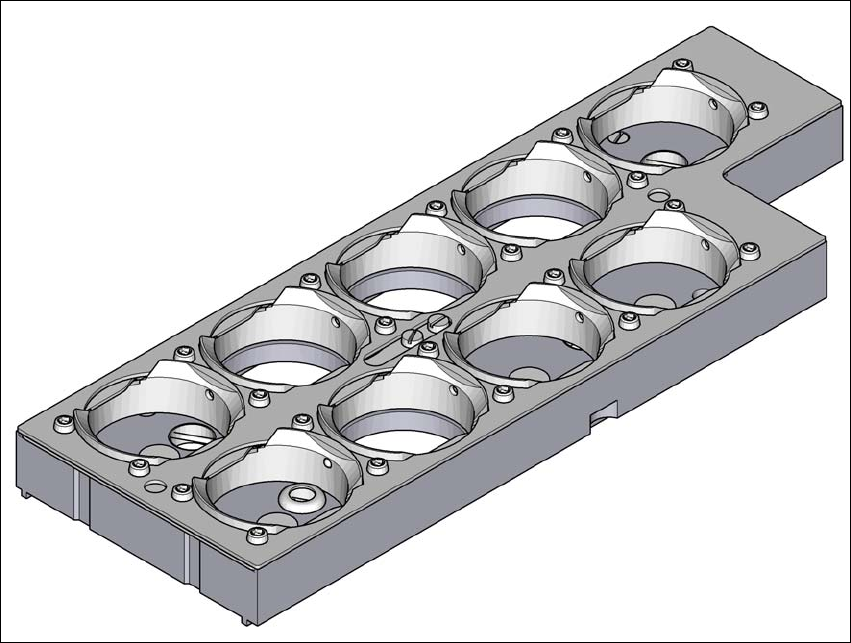

Fig. 6.1 - 9 Nozzle magazine for 28xx nozzles
(1) 5 garages for 28xx nozzles with a maximum nozzle length of 12.5 mm
(garage numbers 1, 5, 6, 8 and 9)
(2) 4 garages for 28xx nozzles with a maximum nozzle length of 16.5 mm
(garage numbers 2, 3, , 4 and 7)
(3) Fiducials (only visible when locking plate open)
