Instruction manual SIPLACE X-Series S 6 Station extensions
From software version 713.0 Edition 11/2019 6.1 Nozzle changer
303
Place the magazine on the snap fastener balls (item 5 in fig. 6.1 - 12, page 302).
Press the magazine down evenly so that the snap fastener balls engage in all the snap fas-
teners at the same time.
6.1.3.3 Position detection
Each nozzle changer magazine has two fiducials for determining the position.
6

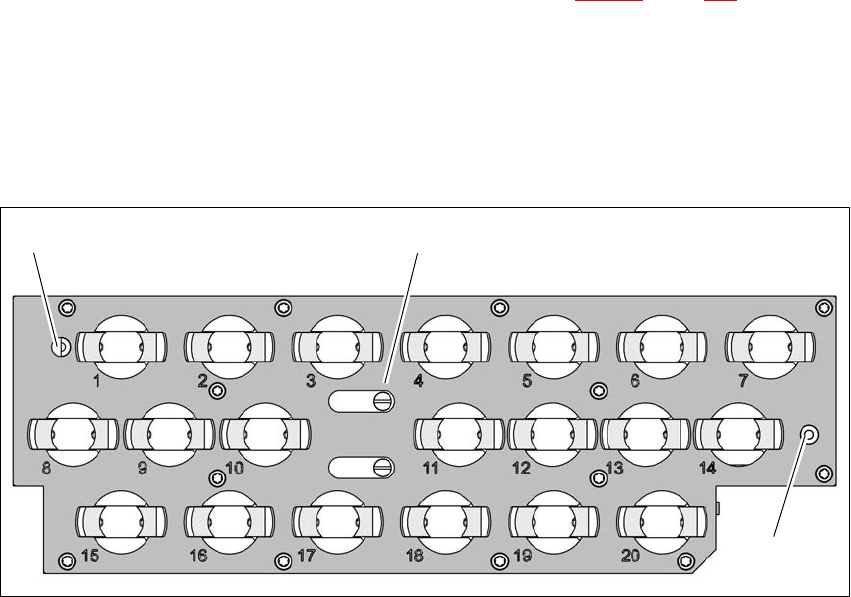

Fig. 6.1 - 13 Nozzle magazine - holder numbering, fiducials for determining the position and angular position
(1) Locking plate in the "magazine open" position
(2) Fiducials for determining the position
(1)
(2)
(2)
6 Station extensions Instruction manual SIPLACE X-Series S
6.1 Nozzle changer From software version 713.0 Edition 11/2019
304
6.1.4 Nozzle changer for the SIPLACE TwinStar
Item no. 03005191-xx Magazine for 2 nozzles
Item no. 03001807-xx Magazine for 1 nozzle
6

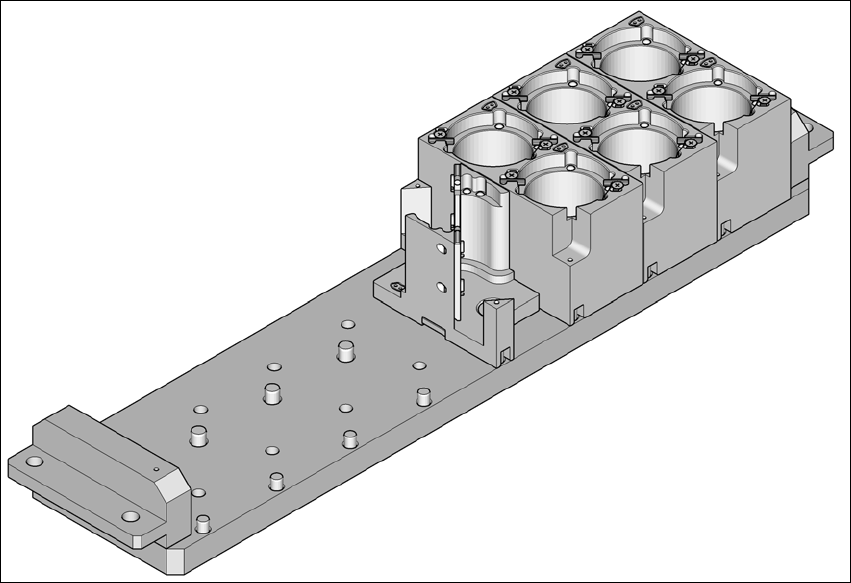

Fig. 6.1 - 14 Nozzle changer for the SIPLACE TwinStar
6.1.4.1 Description
This nozzle changer can accommodate up to 12 nozzle magazines. There are two different mag-
azine types available: standard magazines and magazines for special nozzles or grippers. The
magazines are seated on a common support. They are centered with two parallel pins and fixed
in place with two countersunk screws.
Instruction manual SIPLACE X-Series S 6 Station extensions
From software version 713.0 Edition 11/2019 6.1 Nozzle changer
305
6.1.4.2 Technical data
6
Nozzle changer for the SIPLACE TwinStar
Number of magazines
Locations 1 and 3 6
Locations 2 and 4 6
max. 12 magazines for max. 24 nozzle garages
max. 10 magazines for max. 20 nozzle garages
Number of nozzle holders may be freely configured
Standard configuration 3 magazines with two nozzle garages each
1 magazine with one nozzle garage
Nozzle types 4 xx with adapter
5xx (standard)
9 xx with adapter
Special nozzle, gripper
