6 Station extensions Instruction manual SIPLACE X-Series S
6.4 Matrix tray changer From software version 713.0 Edition 11/2019
312
6.4.3 Technical data
6.4.3.1 Dimensions, weight, other data
6
Tower 1 (XL) Tower 2
Dimensions
Length x width
Height
1305 mm x 600 mm
1560 mm for 900 mm PCB conveyor height
1590 mm for 930 mm PCB conveyor height
1610 mm for 950 mm PCB conveyor height
Weight (basic package) Approx. 500 kg (with cassettes and waffle pack tray carri-
ers)
Weight (fully configured) Approx. 534 kg (with components)
Weight (moving loads) Approx. 80 kg Approx. 43.5 kg
Cassette size (L x W x H) 391.2 mm x 305.6 mm x
93.3 mm
352.7 mm x 154.8 mm x
133.8 mm
Cassette weight
(fully configured)
(without waffle pack tray carrier)
Approx. 11 kg
Approx. 1.7 kg
Approx. 7.5 kg
Approx. 1.35 kg
Weight of the waffle pack tray carrier 850 g 150 g
Dimensions of waffle pack tray carri-
er (L x W x H) 368 mm x 295.8 mm x
11.1 mm
371 mm x 146 mm x
10.1 mm
Distance from cassette to cassette 96 mm 135 mm
Distance from level to level 12 mm 11.8 mm
Vertical lift
444 mm (1st to 30th WTC
*a
)
511.2 mm (1st to 40th
WTC
a
)
Horizontal lift between transfer and
pickup position Approx. 647 mm Approx. 638 mm
Storage capacity 30 waffle pack tray carrier XL
with 60 JEDEC or
30 special magazines
of maximum size
40 waffle pack tray carriers
with 40 Jedec waffle pack
trays
Changeover time (over 5 levels) Approx. 2 s Approx. 1.5 s
Max. height of component and waffle
pack tray incl. tolerances
All levels occupied
One level free
Two levels free
8.5 mm
19,5 mm
31,5 mm
8.5 mm
19,5 mm
-
*)a Waffle pack tray carrier
Instruction manual SIPLACE X-Series S 6 Station extensions
From software version 713.0 Edition 11/2019 6.4 Matrix tray changer
313
6.4.3.2 Electrical ratings
6
6.4.3.3 Noise emissions
6
6.4.3.4 Permitted environmental factors
6
6.4.4 Installation notes for the MTC
In SIPLACE X2 S / X3 S / X4 S machines, an MTC can be docked onto location 2 in place of the
component trolley. To achieve this, the COT insert for the component trolley is replaced with the
docking unit for the MTC. If you want to use this MTC somewhere else, the free location can then
be configured again with a component trolley.
6
Supply voltage 3 x 200 V~ ± 5%; 50/60 Hz (Japan)
3 x 208 V~ ± 5%; 50/60 Hz (U.S.A.)
3 x 400 V~ ± 5%; 50/60 Hz (Europe)
Overall power 1.5 kW
Max. noise emissions 74 dB (A)
Room temperature Between 15°C and 35°C
Atmospheric humidity 30 to - 75 % (no higher than 45% on average to prevent
any possibility of condensation on the placement ma-
chine.)
PLEASE NOTE
Configuration options for MTC
– The MTC can not be configured with a CPP head.
– The MTC can only be configured at location 2 in SIPLACE X2 S / X3 S / X4 S ma-
chines.
– SIPLACE X2 S / X3 S / X4 S machines must have a service flap installed. See “Po-
sition of protective switches on the placement machine” on page 81.
– The MTC can be configured with the Twin Head and the stationary cameras of type
33, 25 or the 3D coplanarity sensor.
– Only 12 nozzle magazines can be used for configurations with an MTC.
6 Station extensions Instruction manual SIPLACE X-Series S
6.4 Matrix tray changer From software version 713.0 Edition 11/2019
314
6.4.4.1 Dimensions
6

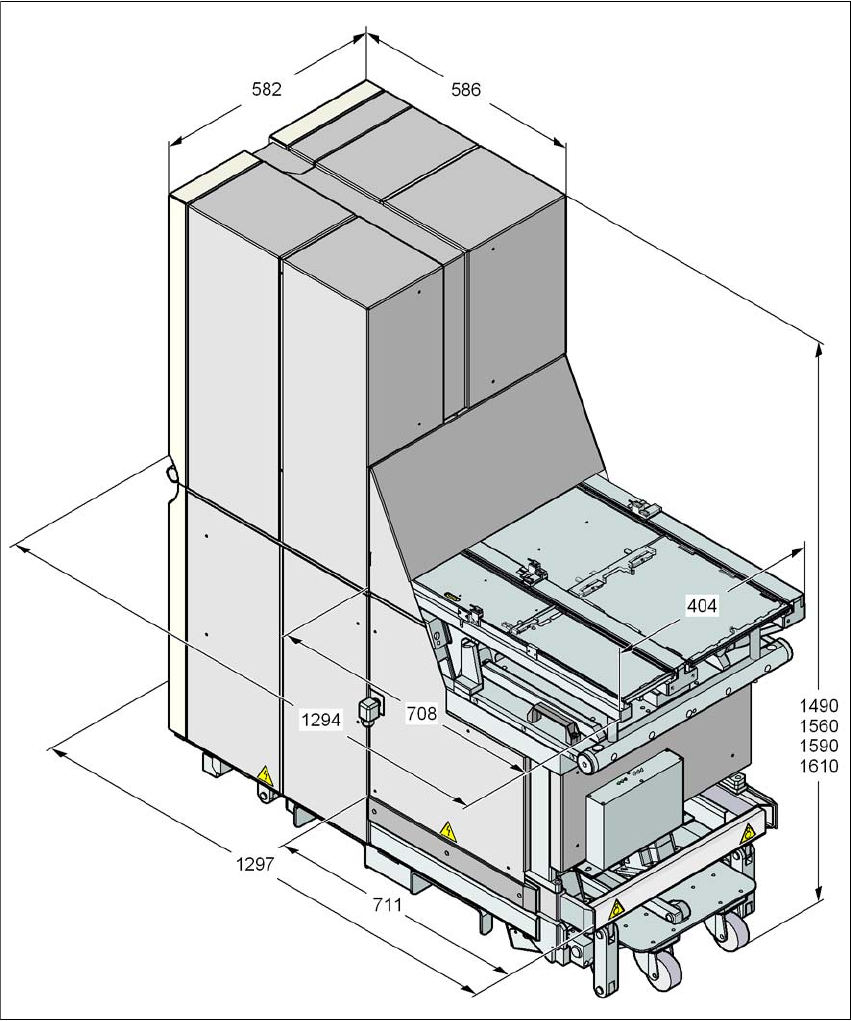

Fig. 6.4 - 1 Matrix tray changer, dimensions, all data in millimeters
