Instruction manual SIPLACE X-Series S 2 Operational safety
From software version 713.0 Edition 11/2019 2.1 Safety instructions
39
Always wear suitable work and protective clothing (e.g. gloves and safety shoes, etc) when
handling the magnet track.
Only suitably trained SIPLACE engineers may carry out assembly work and other tasks when
replacing the magnet track.
In case of emergencies, always have at least two blocks (approx. 10° to 15°) made of a solid,
nonmagnetic material (e.g. aluminum) and a nonmagnetic hammer (approx. 2 to 3 kg) avail-
able. These tools will be needed in an emergency to detach parts that are magnetically stuck
to the magnet track and possibly to release parts of the body caught between the two (fingers,
hand, foot). Never place the coil assembly of an iron-core motor directly on the magnet track.
Electronic devices and measuring instruments may be damaged or destroyed by powerful
magnetic fields. Do not place devices that contain magnetic components in the vicinity of
computers, monitors or magnetic data media (e.g.hard disks, credit cards, audio or video
tapes, etc).
Maintain a distance of at least 45 cm between individual magnet tracks or between a magnet
track and other magnetic surfaces.
The magnets must be disposed of correctly. A key part of correct disposal is the complete de-
magnetization of the permanent magnets.
2 Operational safety Instruction manual SIPLACE X-Series S
2.2 Warning labels From software version 713.0 Edition 11/2019
40
2.2 Warning labels
The following diagrams show the SIPLACE X4 S placement machine.
The positions of warning labels are identical on the SIPLACE X4i S / X2 S / X3 S /.
2
WARNING
Damage to warning labels!
The warning labels can be damaged or destroyed by abrasive cleaning agents or sol-
vents.
Do not use abrasive cleaners or solvents for cleaning warning labels.
Replace any damaged or illegible warning labels.
Instruction manual SIPLACE X-Series S 2 Operational safety
From software version 713.0 Edition 11/2019 2.2 Warning labels
41
2.2.1 Warning labels on the placement machine (default label)

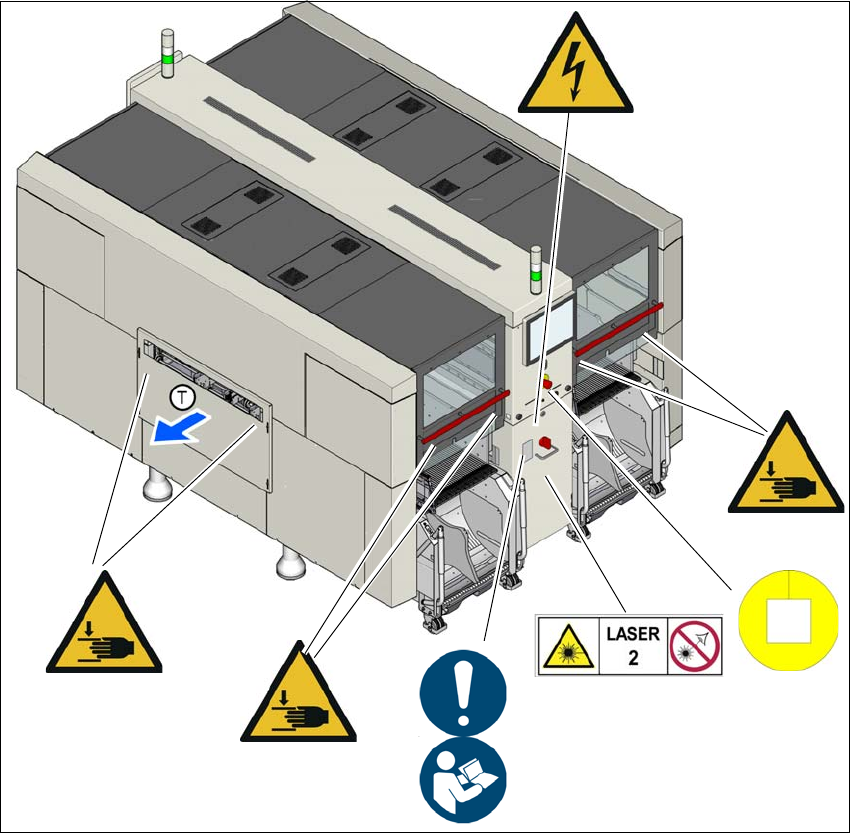

Fig. 2.2 - 1 Warning labels on the placement machine - part 1 (example of SIPLACE X4 S) default labeling
Item W 002, item no. 03155798-01
Item W 024, item no. 03155346-01
Item W 210, item no. 03009350-01
Item W 012, item no. 03155378-01
Item W laser class 2, item no. 03155298-01
(T) Direction of PCB transport
W 210
M 002
W 024
W laser class 2
W 024
W 024
W 012
