2 Operational safety Instruction manual SIPLACE X-Series S 2.2 Warning labels From software version 713.0 Edition 11/2019 42 Fig. 2.2 - 2 Warning labels on the placement machine - part 2 (example of SIPLACE X4 S with han…
Instruction manual SIPLACE X-Series S 2 Operational safety
From software version 713.0 Edition 11/2019 2.2 Warning labels
41
2.2.1 Warning labels on the placement machine (default label)
Fig. 2.2 - 1 Warning labels on the placement machine - part 1 (example of SIPLACE X4 S) default labeling
Item W 002, item no. 03155798-01
Item W 024, item no. 03155346-01
Item W 210, item no. 03009350-01
Item W 012, item no. 03155378-01
Item W laser class 2, item no. 03155298-01
(T) Direction of PCB transport
W 210
M 002
W 024
W laser class 2
W 024
W 024
W 012
2 Operational safety Instruction manual SIPLACE X-Series S
2.2 Warning labels From software version 713.0 Edition 11/2019
42

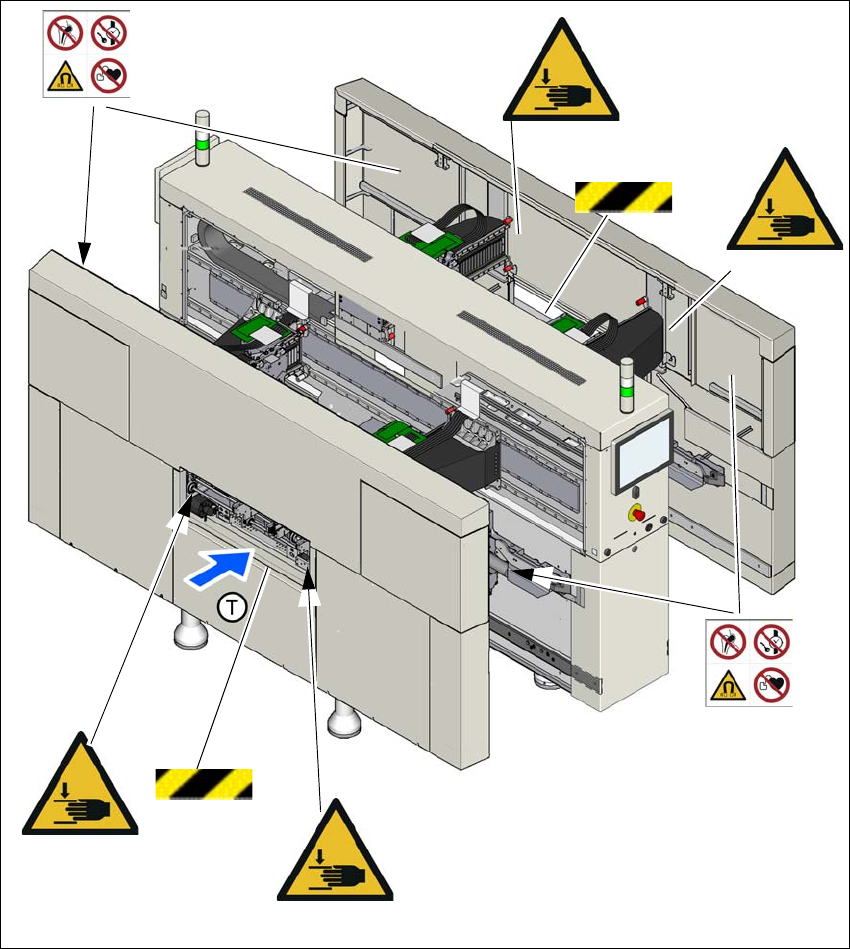

Fig. 2.2 - 2 Warning labels on the placement machine - part 2 (example of SIPLACE X4 S with hand guard) default
labeling
Item W 024, item no. 03155346-01
Item W 210, item no. 03009350-01
(1) Warning strips, down on the four protective hoods
(T) Direction of PCB transport
W 210
1
1
W 024
W 024
W 024
Instruction manual SIPLACE X-Series S 2 Operational safety
From software version 713.0 Edition 11/2019 2.2 Warning labels
43
2.2.2 Warning labels in the placement machine (default label)
Fig. 2.2 - 3 Warning labels in the placement machine (example of SIPLACE X4i S shown) default labeling
Item W 024, item no. 03155346-01
Item W 006, item no. 03155812-01
(1) Warning strips
(T) Direction of travel
The warning labels are attached to the inside of the metal cover panels.
1
1
W 024
W 024
W 024
W 024
W 006
W 006
