2 Operational safety Instruction manual SIPLACE X-Series S 2.2 Warning labels From software version 713.0 Edition 11/2019 54 2.2.8 W arning labels on the power supply unit 2 W 220 in fig. 2.2 - 9 , page 54 , item no. 031…
Instruction manual SIPLACE X-Series S 2 Operational safety
From software version 713.0 Edition 11/2019 2.2 Warning labels
53
2.2.7.1 Warn label W 205 on the used tape chute
2

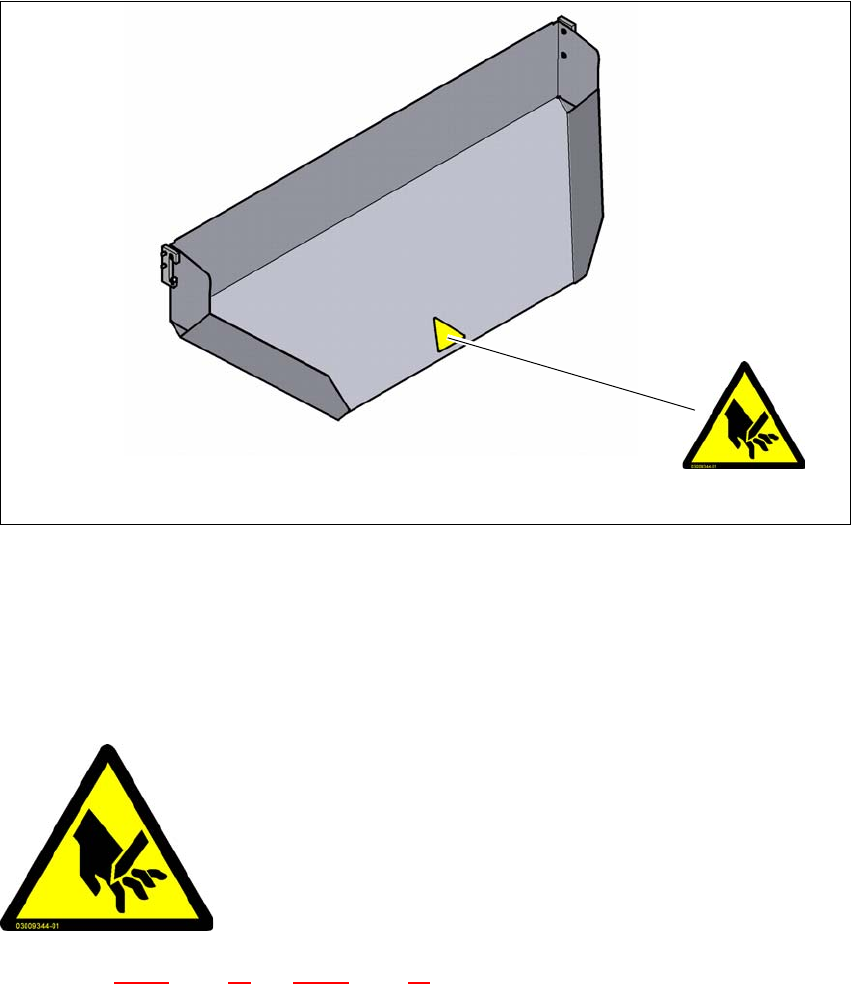

Fig. 2.2 - 8 Warn label W 205 on the used tape chute
Item W 205, item no. 03009344-01
2.2.7.2 Warning label W 205
Warning labels on tape cutter and used tape chute
2
W 205 in fig. 2.2 - 7, page 52 and 2.2 - 8, page 53, item no. 03009344-01 (quantity per placement
machine: 8)
W 205
2
2
2
2
2
2
2
2
RISK OF CUTTING!
There is still a risk of getting cut when the placement machine is
switched off
2 Operational safety Instruction manual SIPLACE X-Series S
2.2 Warning labels From software version 713.0 Edition 11/2019
54
2.2.8 Warning labels on the power supply unit
2
W 220 in fig. 2.2 - 9, page 54, item no. 03114591-01 (quantity per placement machine: 4).

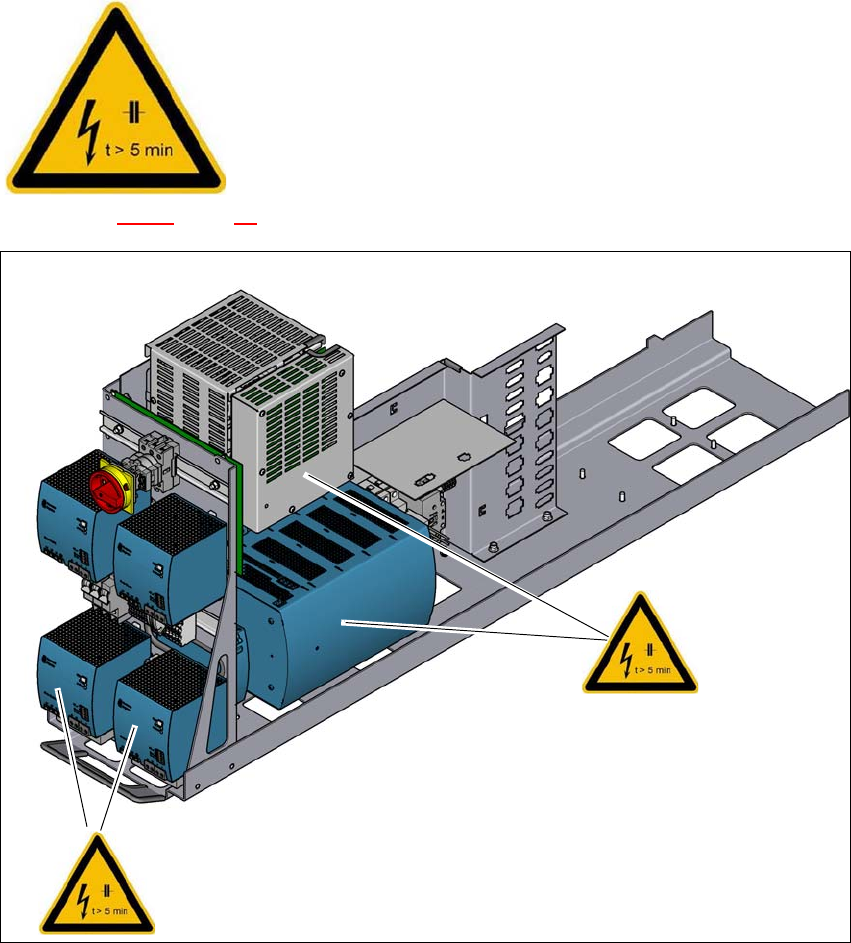

Fig. 2.2 - 9 Warning label W 220 on the power supply
– W 220 on the capacitor battery PCS417
– W 220 on the power supply AC/DC converters (160 V DC /300 V DC).
– W 220 on the cover of the safety cutoff (CSB)
2
2
MAIN POWER VOLTAGE!
Switch off the main power switch, unplug the power supply and
wait 5 minutes until the capacitors have discharged.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
W 220
W 220
Instruction manual SIPLACE X-Series S 2 Operational safety
From software version 713.0 Edition 11/2019 2.2 Warning labels
55
2.2.9 Warning labels on the SIPLACE SpeedStar C&P20 P
2
Fig. 2.2 - 10 Warning labels on the SIPLACE SpeedStar C&P20 P
(1) Temperature label, item no. 03031926-01
(2) Housing for the star motor
(3) Handle
Item W laser class 2, item no. 03155298-01
(1)
(2)
(3)
W laser class 2
