Instruction manual SIPLACE X-Series S 2 Operational safety From software version 713.0 Edition 11/2019 2.2 Warning labels 57 2.2.1 1 Meaning and description of warning labels 2.2.1 1.1 High temperatures on the SIPLACE C&…
2 Operational safety Instruction manual SIPLACE X-Series S
2.2 Warning labels From software version 713.0 Edition 11/2019
56
2.2.10 Warning labels on the SIPLACE SpeedStar C&P20 P2
2

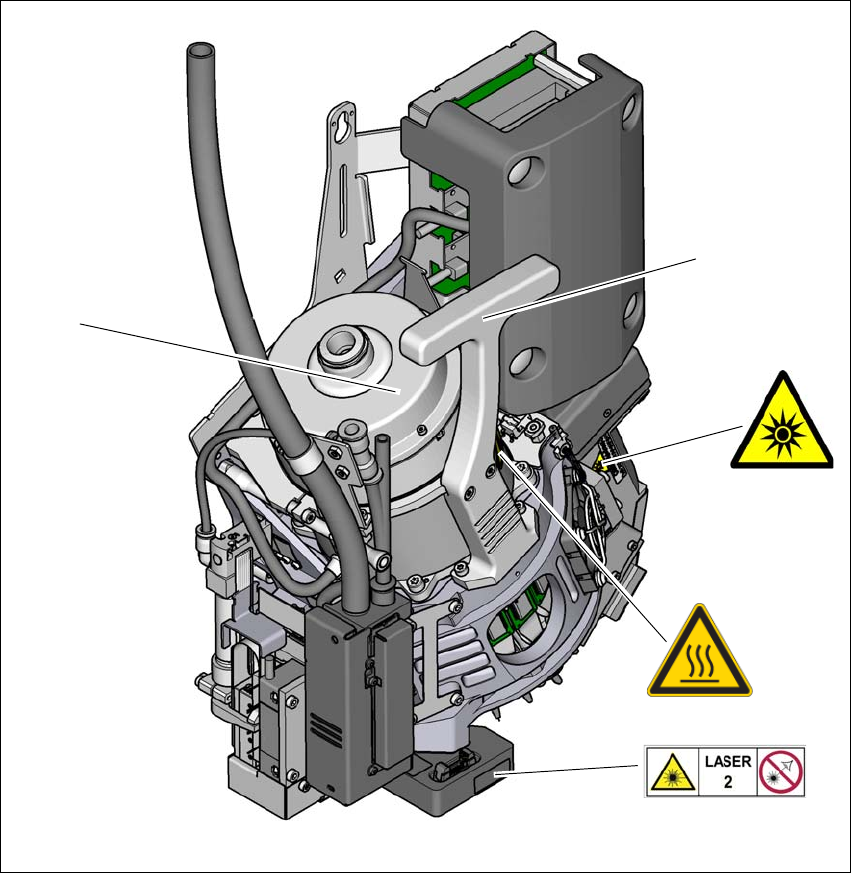

Fig. 2.2 - 11 Warning labels on the SIPLACE SpeedStar C&P20 P2
(1) Temperature label, item no. 03031926-01
(2) Housing for the star motor
(3) Handle
(4) Warning label - risk group 2
Item laser mark - risk class 2, item no. 03155298-01
(1)
(3)
(2)
(4)
Laser mark, risk class 2
Instruction manual SIPLACE X-Series S 2 Operational safety
From software version 713.0 Edition 11/2019 2.2 Warning labels
57
2.2.11 Meaning and description of warning labels
2.2.11.1 High temperatures on the SIPLACE C&P20 P / C&P20 P2
2
1 in fig. 2.2 - 10, page 55 (quantity per SIPLACE C&P20 P: 1
1 in fig. 2.2 - 11
, page 56 (quantity per SIPLACE C&P20 P2: 1
2.2.11.2 Laser class 2 on the component sensor
2
Item W laser class 2 in fig. 2.2 - 10, page 55, item no. 03155298-01 (quantity per C&P20 P: 1
Item W laser class 2 in fig. 2.2 - 11
, page 2.2 - 11, item no. 03155298-01
(quantity per C&P20 P2: 1)
2.2.11.3 Risk group 2 for cameras with ultra-bright blue LEDs
Item 4 in fig. 2.2 - 11, page 56 (quantity per C&P20 P2: 1)
2
High temperatures on the SIPLACE C&P20 P / C&P20 P2 during continuous
operation
Risk of burns due to high temperatures!
The housing of the star motor and the handle on the placement head may
become very hot during continuous operation and in ambient temperature in
excess of 22 °C.
Be careful when touching the parts.
2
2
2
LASER RADIATION
Laser class 2
Acc. to IEC 60825-1:2014
Do not look into beam!
2
Risk group 2
The beam from cameras with ultra-bright blue LEDs can be a haz-
ard.
Do not look into the beam of the ready-for-operation camera!
2 Operational safety Instruction manual SIPLACE X-Series S
2.2 Warning labels From software version 713.0 Edition 11/2019
58
2.2.12 Warning labels on the SIPLACE MultiStar CPP
2

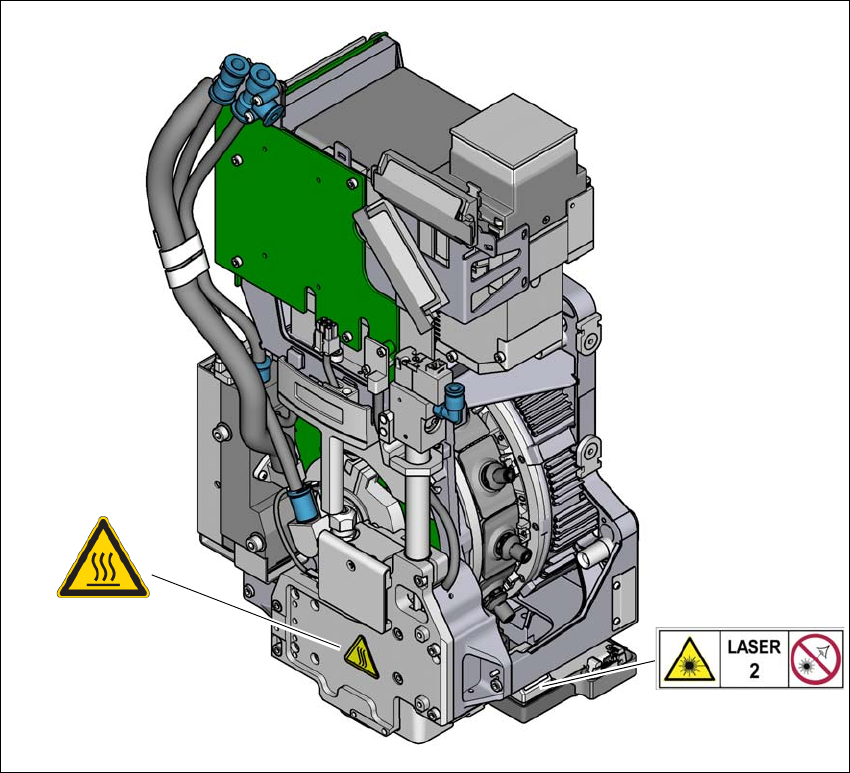

Fig. 2.2 - 12 Warning labels on the SIPLACE MultiStar CPP
(1) Temperature label, item no. 03031926-01
Item laser mark - risk class 2, item no. 03155298-01
(1)
Laser mark, risk class 2
