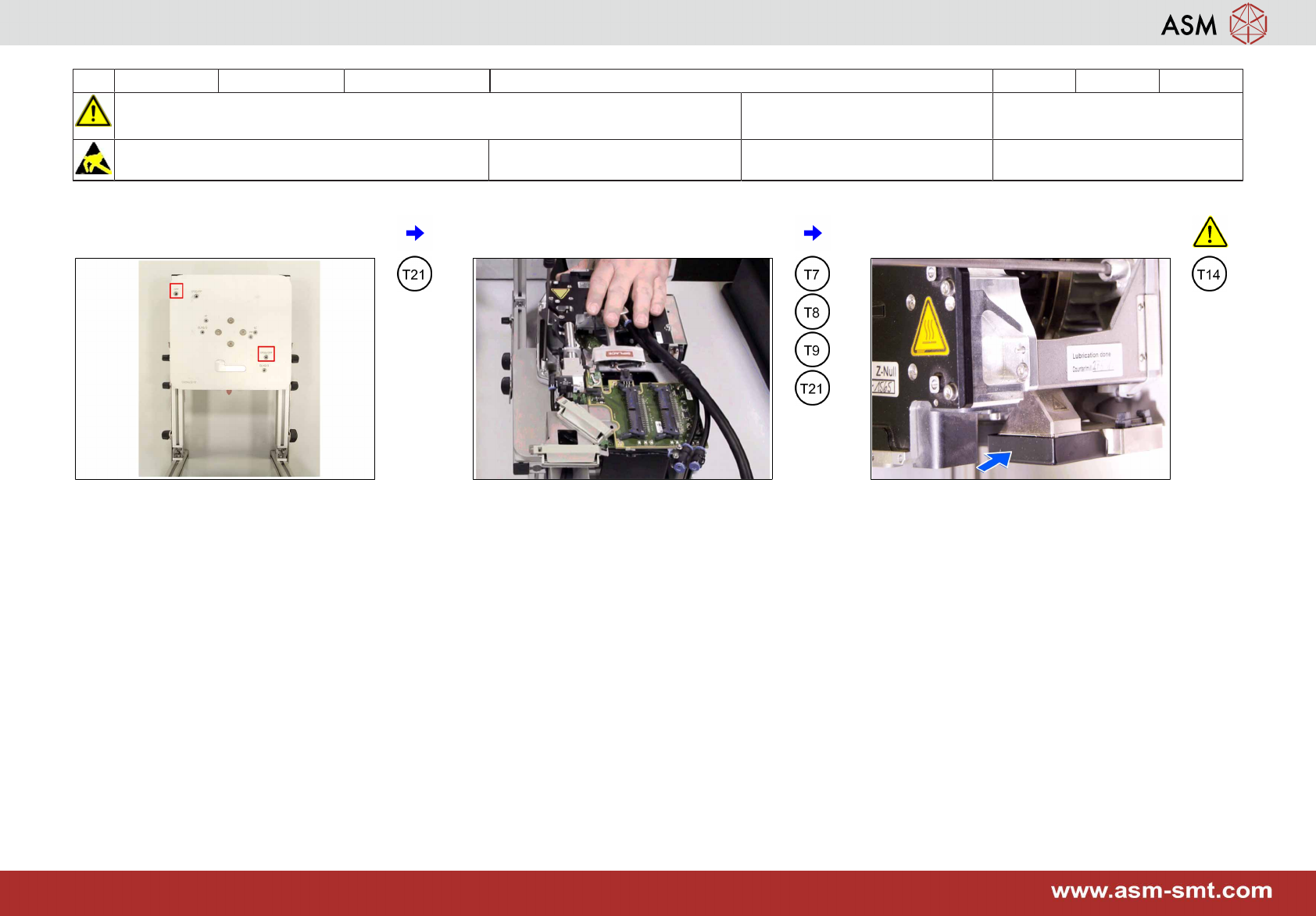

1 6-monthly CPP Mount the CPP head 1 min 1 / 1

CAUTION!Refer to safety instructions in user manual before commencing Mainten-

ance

NOTICE! ESD guidelines are to be followed Tool:

T7 , T8 , T9 , T14 , T21

Wear Part: Consumables:

1 Use the marked screw holes. 2 Mount the head at the headstand with a

torque of 2,70 Nm.

3 Ensure the component sensor cover is in-

stalled properly.

2 6-monthly CPP Dismantle the front plate 3 min 1 / 2

CAUTION!Refer to safety instructions in user manual before commencing Mainten-

ance

NOTICE! ESD guidelines are to be followed Tool:

T12, T19, T21, T47, T77, T78

Wear Part: Consumables:

1 Proceed with the head stand flat on the

table.

2 Unplug the hose from the pressure regu-

lator valve.

3 Unplug the 3 remaining air connections.

4 Unplug the 3 cable connections. 5 Unscrew and unplug the connector board. 6 Cut and remove the cable tie (version with

short cable).
