2 6-monthly CPP Dismantle the front plate 3 min 1 / 2 CAUTION!Refer to safety instructions in user manual before commencing Mainten- ance NOTICE! ESD guidelines are to be followed Tool: T12, T19, T21, T47, T77, T78 Wear…

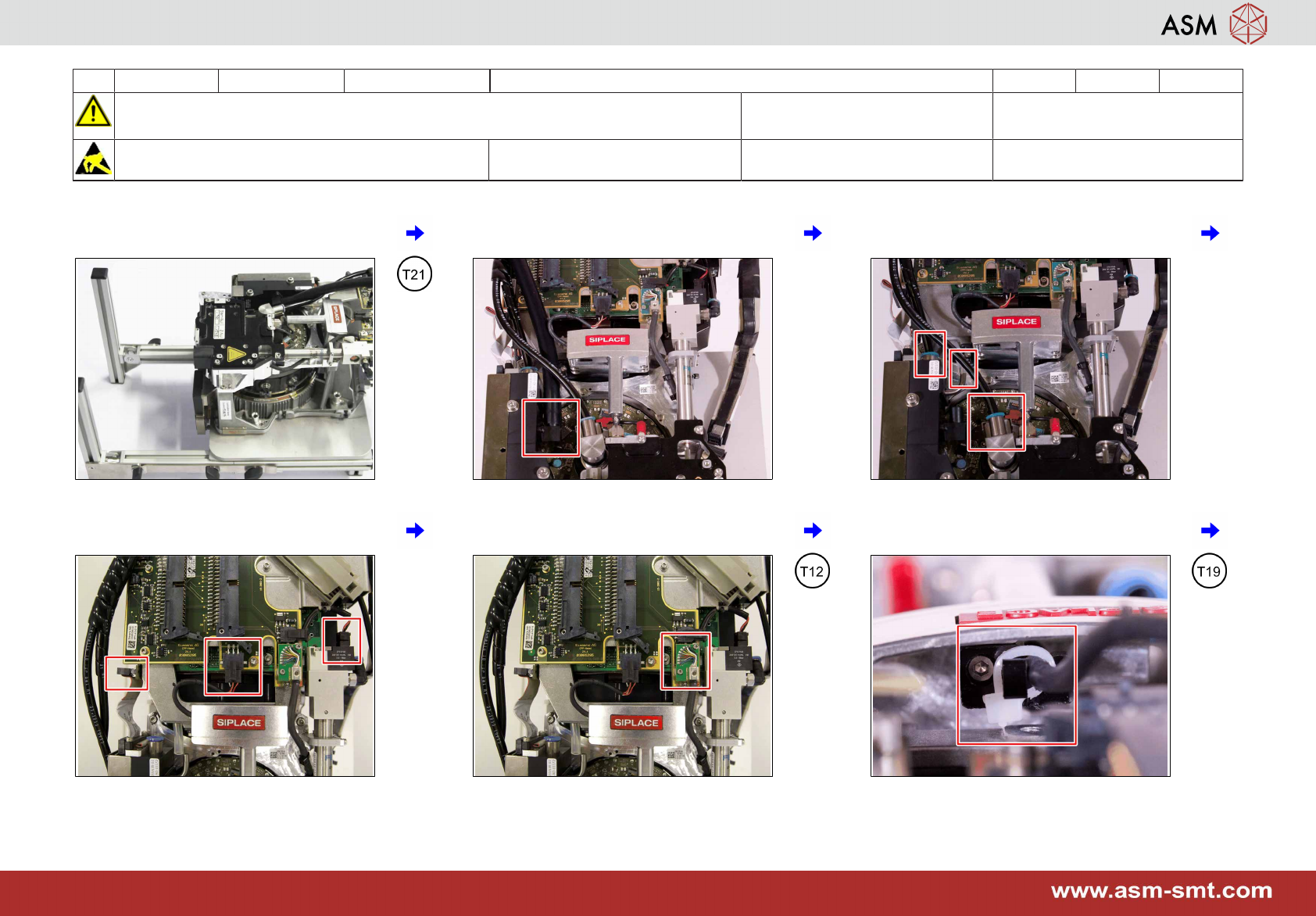

2 6-monthly CPP Dismantle the front plate 3 min 1 / 2

CAUTION!Refer to safety instructions in user manual before commencing Mainten-

ance

NOTICE! ESD guidelines are to be followed Tool:

T12, T19, T21, T47, T77, T78

Wear Part: Consumables:

1 Proceed with the head stand flat on the

table.

2 Unplug the hose from the pressure regu-

lator valve.

3 Unplug the 3 remaining air connections.

4 Unplug the 3 cable connections. 5 Unscrew and unplug the connector board. 6 Cut and remove the cable tie (version with

short cable).

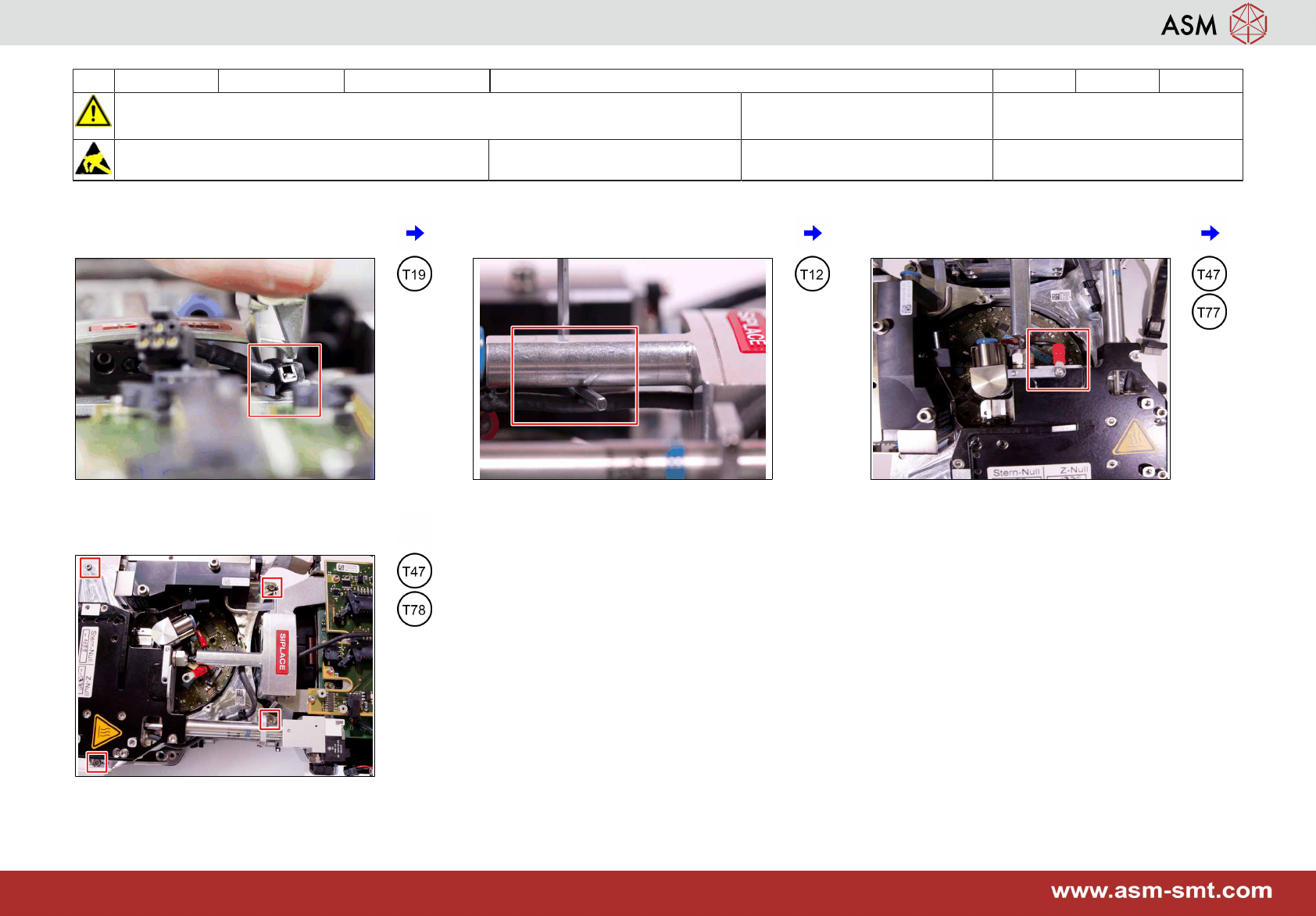

2 6-monthly CPP Dismantle the front plate 3 min 2 / 2

CAUTION!Refer to safety instructions in user manual before commencing Mainten-

ance

NOTICE! ESD guidelines are to be followed Tool:

T12, T19, T21, T47, T77, T78

Wear Part: Consumables:

7 Cut and remove the cable tie (version with

long cable).

8 Release and remove the cable from the

holder.

9 Unscrew the grounding from the screwed

joint.

10 Remove the 4 screws and take off the

front plate.
