3 6-monthly CPP Remove the holding circuit 2 min 1 / 1 CAUTION!Refer to safety instructions in user manual before commencing Mainten- ance NOTICE! ESD guidelines are to be followed Tool: T13, T21, T44, T76 Wear Part: Co…

2 6-monthly CPP Dismantle the front plate 3 min 2 / 2

CAUTION!Refer to safety instructions in user manual before commencing Mainten-

ance

NOTICE! ESD guidelines are to be followed Tool:

T12, T19, T21, T47, T77, T78

Wear Part: Consumables:

7 Cut and remove the cable tie (version with

long cable).

8 Release and remove the cable from the

holder.

9 Unscrew the grounding from the screwed

joint.

10 Remove the 4 screws and take off the

front plate.

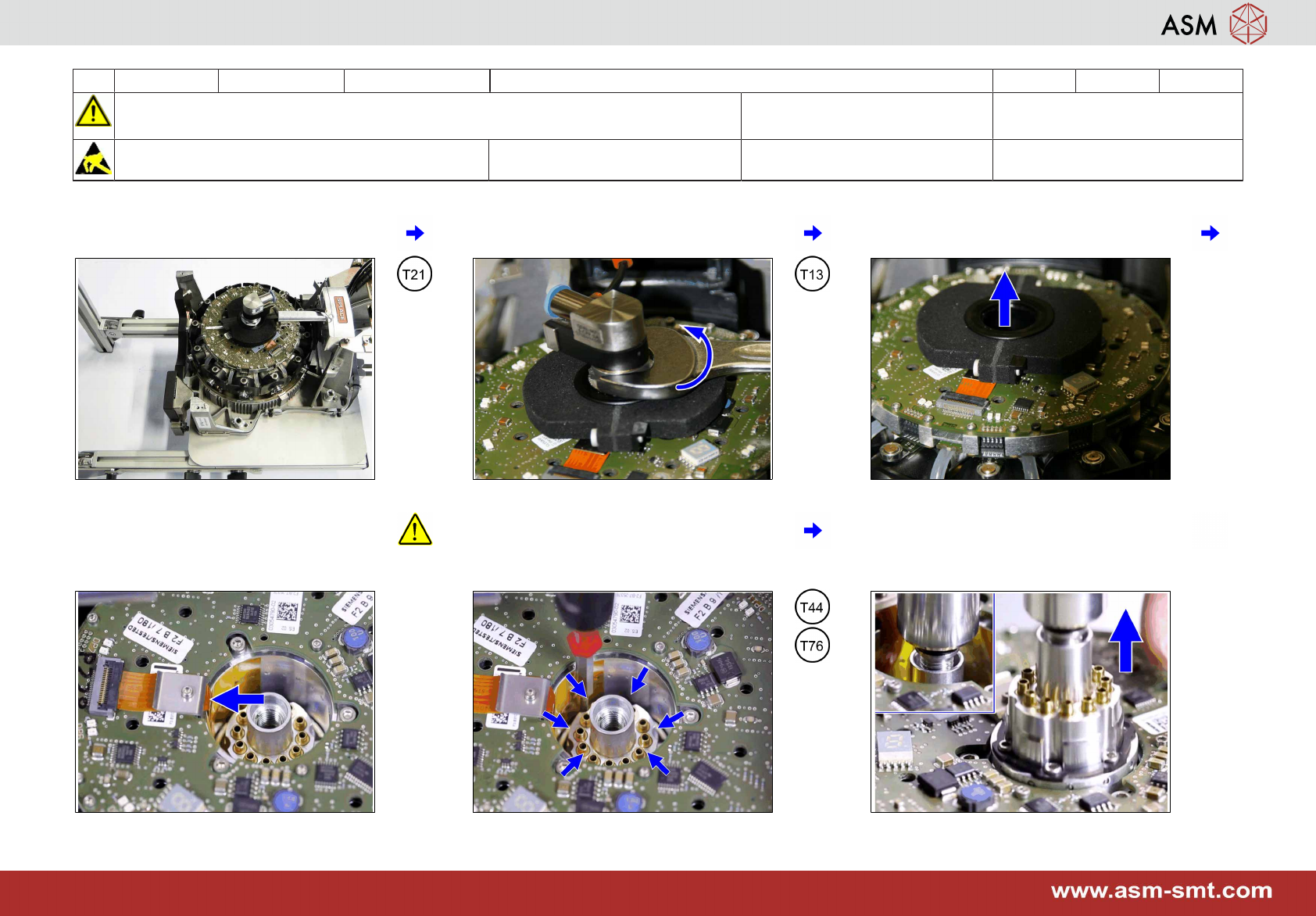

3 6-monthly CPP Remove the holding circuit 2 min 1 / 1

CAUTION!Refer to safety instructions in user manual before commencing Mainten-

ance

NOTICE! ESD guidelines are to be followed Tool:

T13, T21, T44, T76

Wear Part: Consumables:

1 Proceed with the head stand flat on the

table.

2 Loosen the fixing and take out the

screwed joint.

3 Take out the holding circuit housing to-

gether with the silencer.

4 Pay attention not to damage the flex

cables while removing the holding circuit

in the next step.

5 Loosen the 6 screws fixing the holding cir-

cuit.

6 Insert the screwed joint by two turns and

remove the holding circuit to clean it in the

ultra sonic bath. See appendix "Maintain

the holding circuit".
