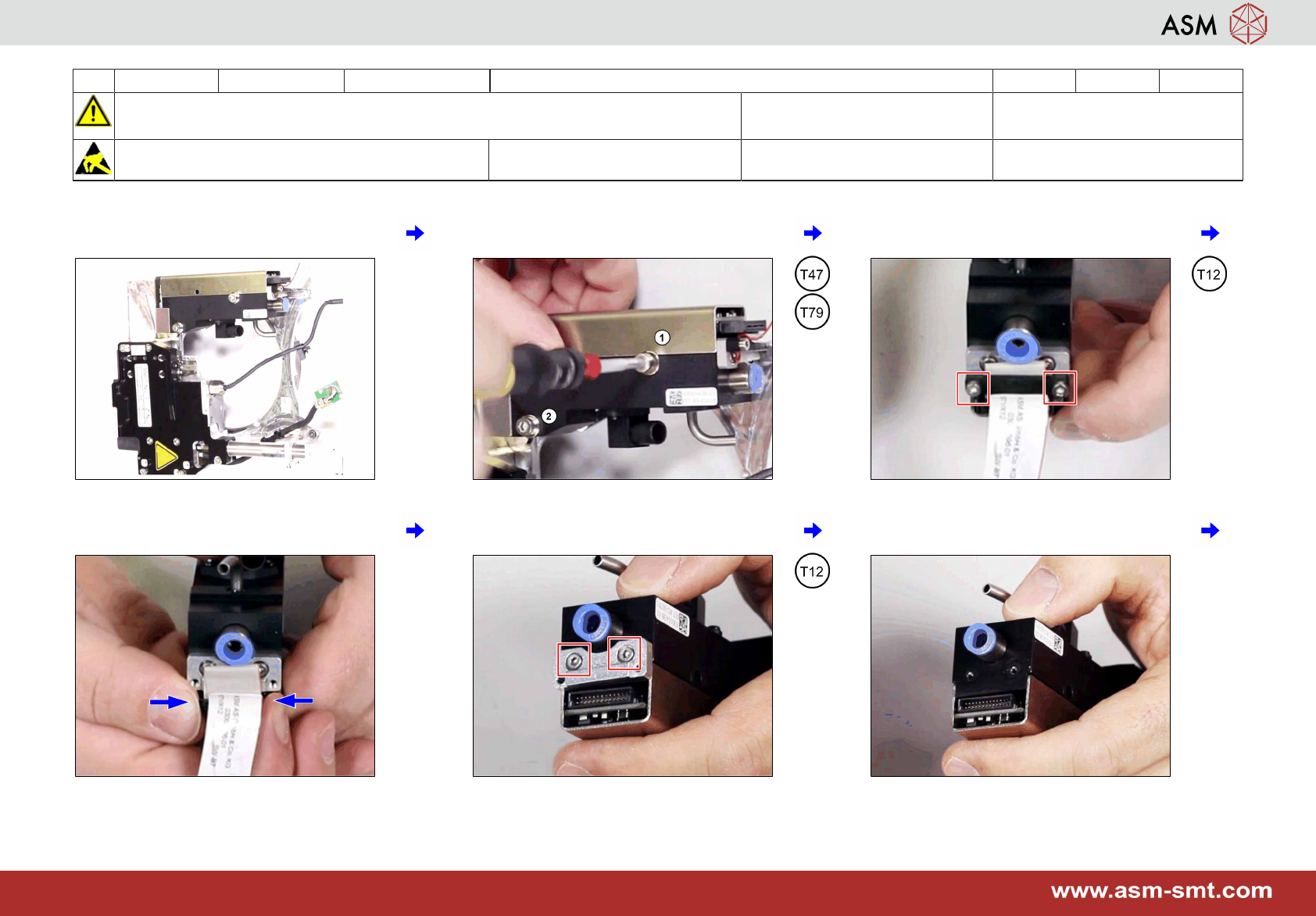

4 6-monthly CPP Exchange / maintain the PRV 2 min 1 / 2 CAUTION!Refer to safety instructions in user manual before commencing Mainten- ance NOTICE! ESD guidelines are to be followed Tool: T12, T47, T79 Wear Part: Consum…

4 6-monthly CPP Exchange / maintain the PRV 2 min 1 / 2

CAUTION!Refer to safety instructions in user manual before commencing Mainten-

ance

NOTICE! ESD guidelines are to be followed Tool:

T12, T47, T79

Wear Part: Consumables:

1 Put the front plat flate on the table with the

race way pointing down.

2 Take out both fixing screws. 3 Unscrew the cable clamp.

4 Press the two clips at the side and discon-

nect the ribbon cable.

5 Unscrew both screws and take the mount-

ing plate away.

6 Exchange the PRV with a maintained one.

See appendix "Maintain the PRV".

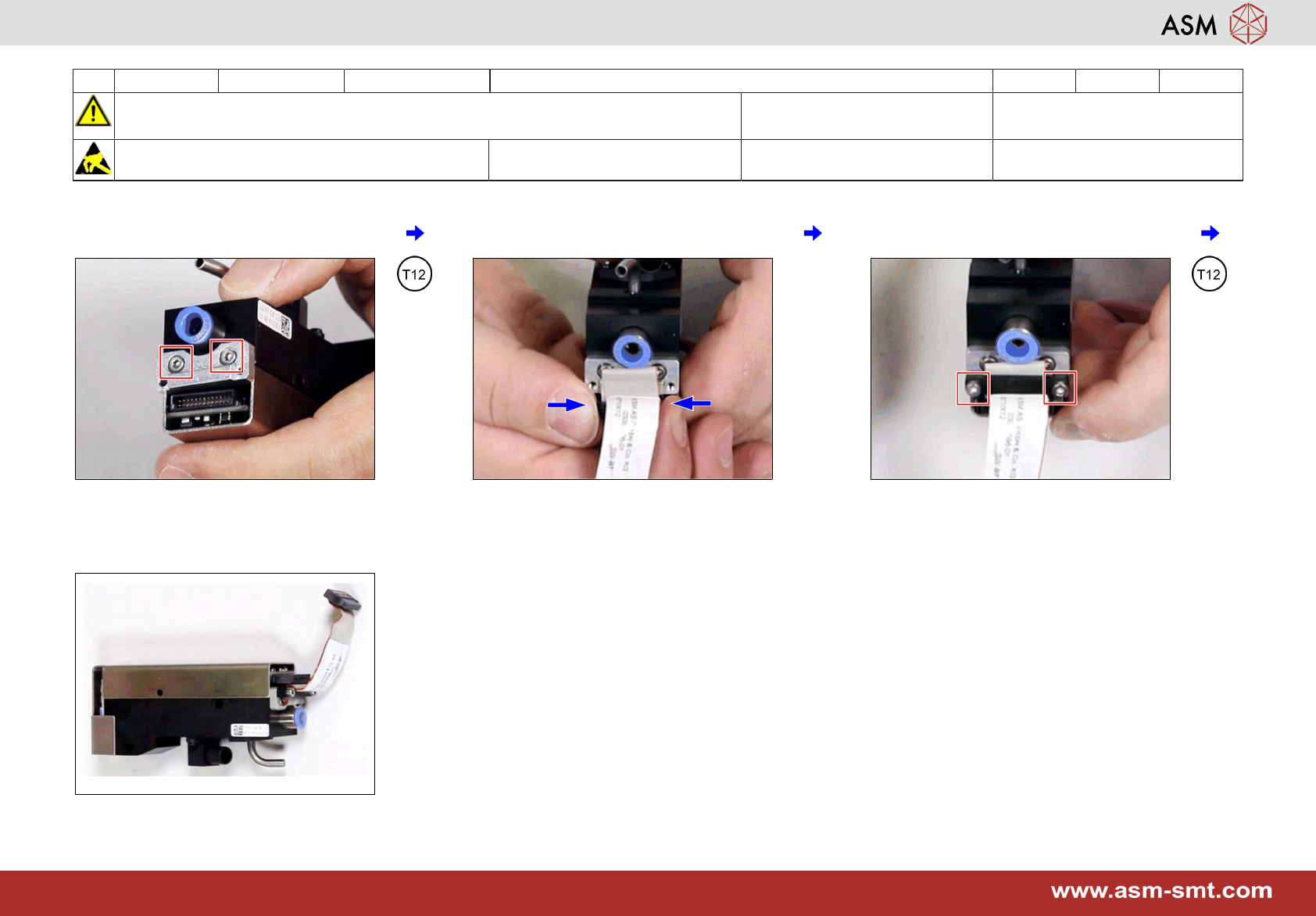

4 6-monthly CPP Exchange / maintain the PRV 2 min 2 / 2

CAUTION!Refer to safety instructions in user manual before commencing Mainten-

ance

NOTICE! ESD guidelines are to be followed Tool:

T12, T47, T79

Wear Part: Consumables:

7 Place the mounting plate and fasten both

screws.

8 Press the two clips at the side and con-

nect the ribbon cable properly.

9 Mount the cable clamp.

10 Put the completed PRV to the side until

you are prompted to take it up again in a

later task.
