6 6-monthly CPP Clean / lubricate the Z-axis linear guide 4 min 1 / 2 CAUTION!Refer to safety instructions in user manual before commencing Mainten- ance NOTICE! ESD guidelines are to be followed Tool: T12, T22, T23 Wea…

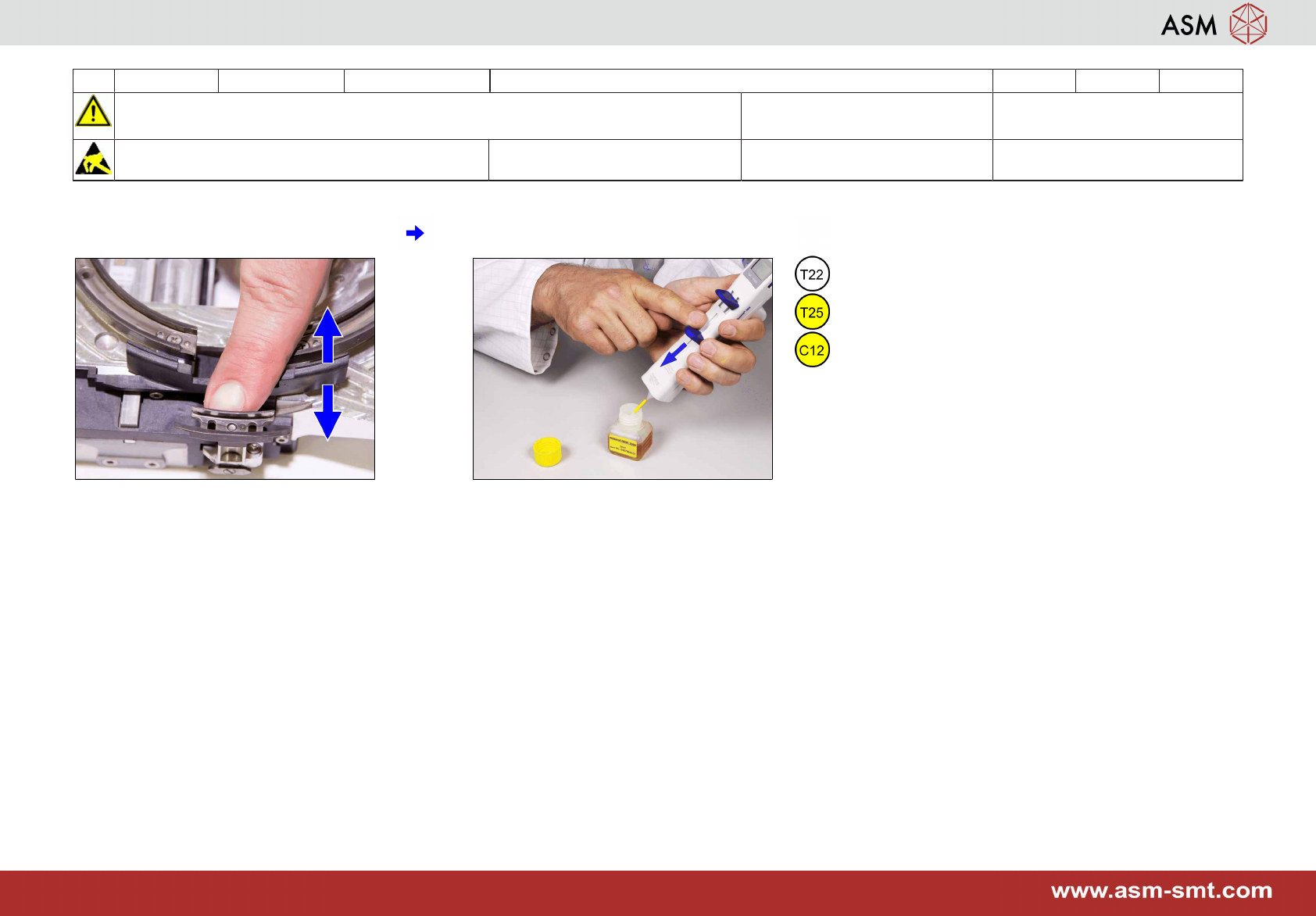

5 6-monthly CPP Lubricate the Z-axis support roller 1 min 2 / 2

CAUTION!Refer to safety instructions in user manual before commencing Mainten-

ance

NOTICE! ESD guidelines are to be followed Tool:

T22, T25

Wear Part: Consumables:

C12

7 Move the Z-axis 5 times up and down. 8 Clean up the multipette. See appendix

"Clean-up the multipette".

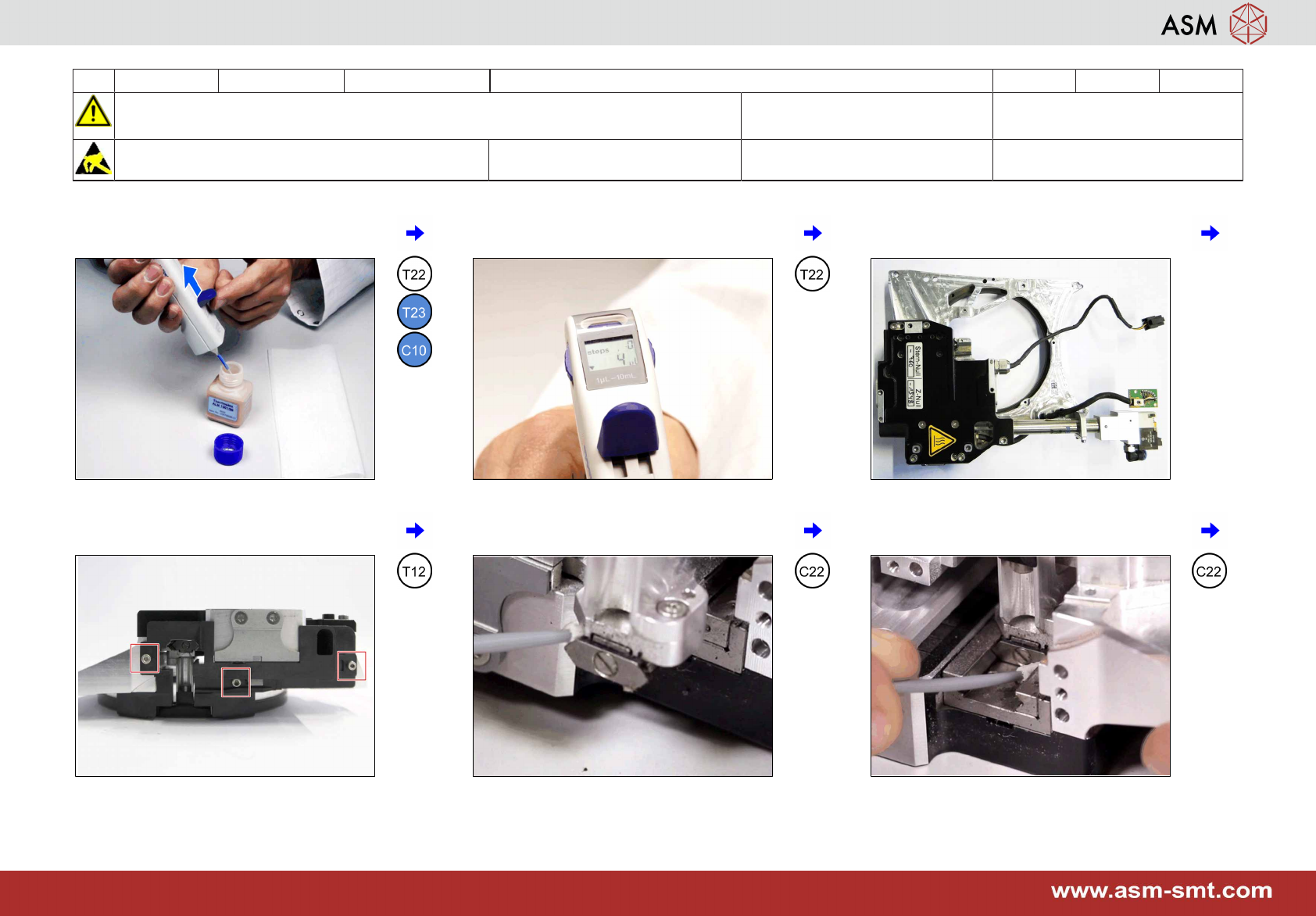

6 6-monthly CPP Clean / lubricate the Z-axis linear guide 4 min 1 / 2

CAUTION!Refer to safety instructions in user manual before commencing Mainten-

ance

NOTICE! ESD guidelines are to be followed Tool:

T12, T22, T23

Wear Part: Consumables:

C10 , C22

1 Prepare the multipette. See appendix

"Prepare the multipette.

2 Turn the wheel and adjust 4 µl. 3 Put the front plate flat on the table with the

race way pointing down.

4 Loosen the 3 screws and remove the

plastic cover from the Z-axis housing.

5 Move the Z-axis out and clean the mov-

able part on both sides at the bottom.

6 Move the Z-axis in and clean the fixed part

on both sides at the bottom.

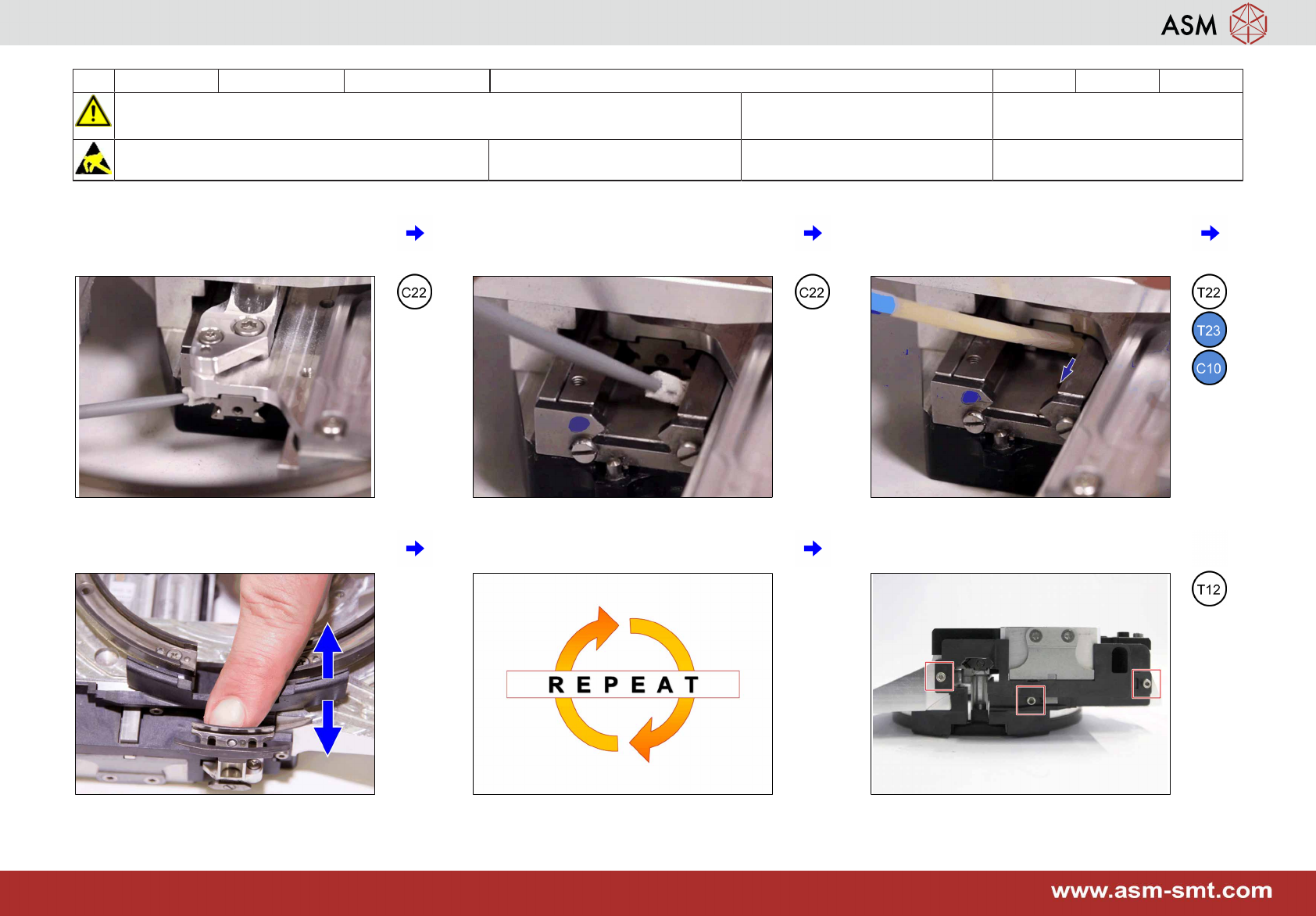

6 6-monthly CPP Clean / lubricate the Z-axis linear guide 4 min 2 / 2

CAUTION!Refer to safety instructions in user manual before commencing Mainten-

ance

NOTICE! ESD guidelines are to be followed Tool:

T12, T22, T23

Wear Part: Consumables:

C10 , C22

7 Keep the Z-axis in and clean the movable

part on both sides at the top.

8 Move the Z-axis out and clean the fixed

part on both sides at the top.

9 Keep the Z-axis out and apply 1 x 4 µl with

a slight motion to the left and right center

of the fixed part at the top.

10 Move the Z-axis 5 times up and down. 11 Repeat step 9 to 10 one more time. 12 Mount the plastic cover onto the Z-axis

housing.
