7 6-monthly CPP Clean / lubricate the DP segment guide 6 min 2 / 3 CAUTION!Refer to safety instructions in user manual before commencing Mainten- ance NOTICE! ESD guidelines are to be followed Tool: T21, T22 , T23 Wear …
7 6-monthly CPP Clean / lubricate the DP segment guide 6 min 1 / 3
CAUTION!Refer to safety instructions in user manual before commencing Mainten-
ance
NOTICE! ESD guidelines are to be followed Tool:
T21, T22 , T23
Wear Part:
W16
Consumables:
C10 , C22

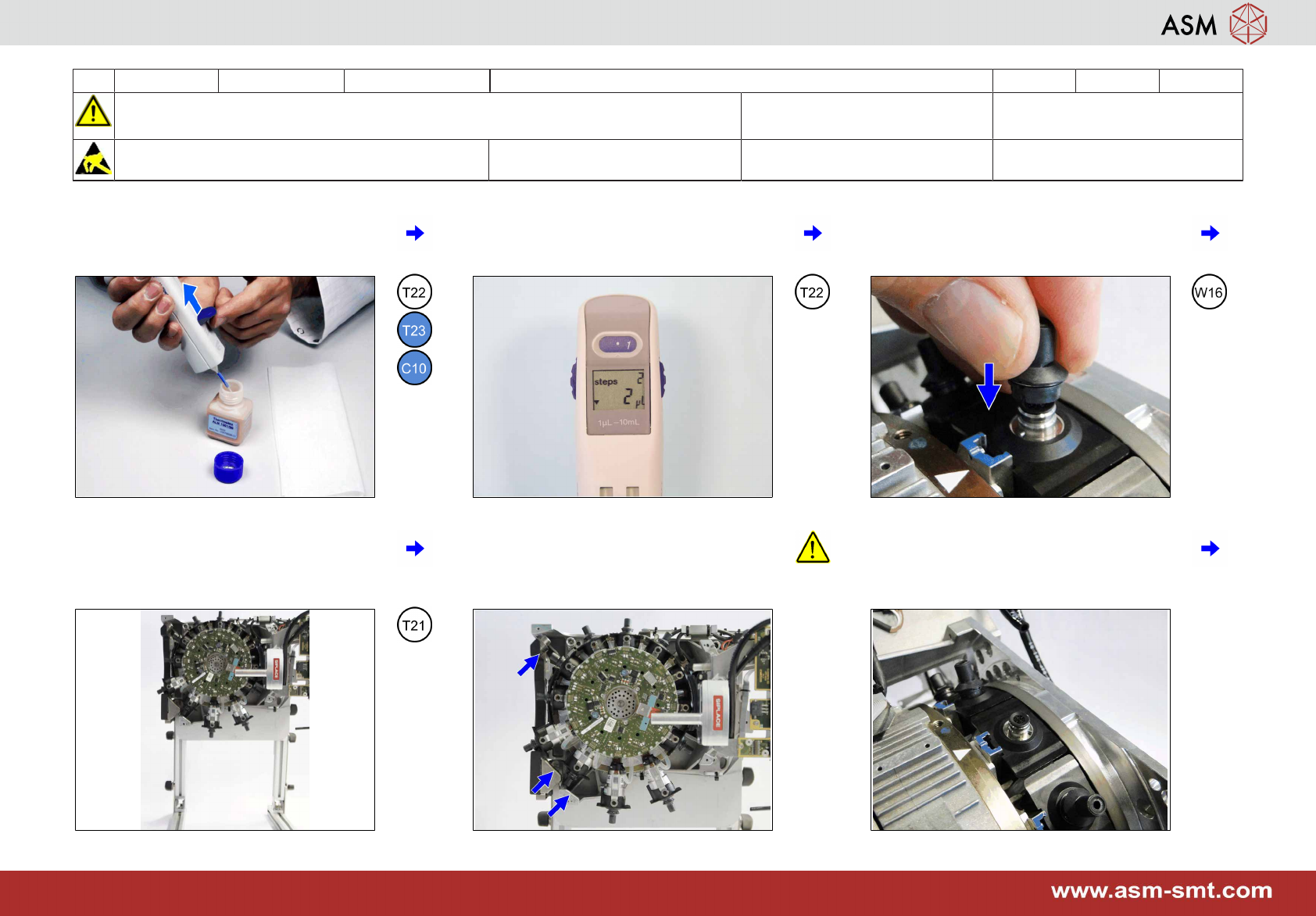

1 Prepare the multipette. See appendix
"Prepare the multipette.
2 Turn the wheel and adjust 2 µl. 3 Put a calibration nozzle 2057 onto all seg-
ments except segment 1 to indicate the
starting point.
4 Move the head 90° to the right and put the
head stand in the upright position.
5 To prevent damage to the segments en-
sure they are not hitting the head frame or
the component sensor when turning the
star.
6 Turn the star until segment 1 is at the top.
7 6-monthly CPP Clean / lubricate the DP segment guide 6 min 2 / 3
CAUTION!Refer to safety instructions in user manual before commencing Mainten-
ance
NOTICE! ESD guidelines are to be followed Tool:
T21, T22 , T23
Wear Part:
W16
Consumables:
C10 , C22

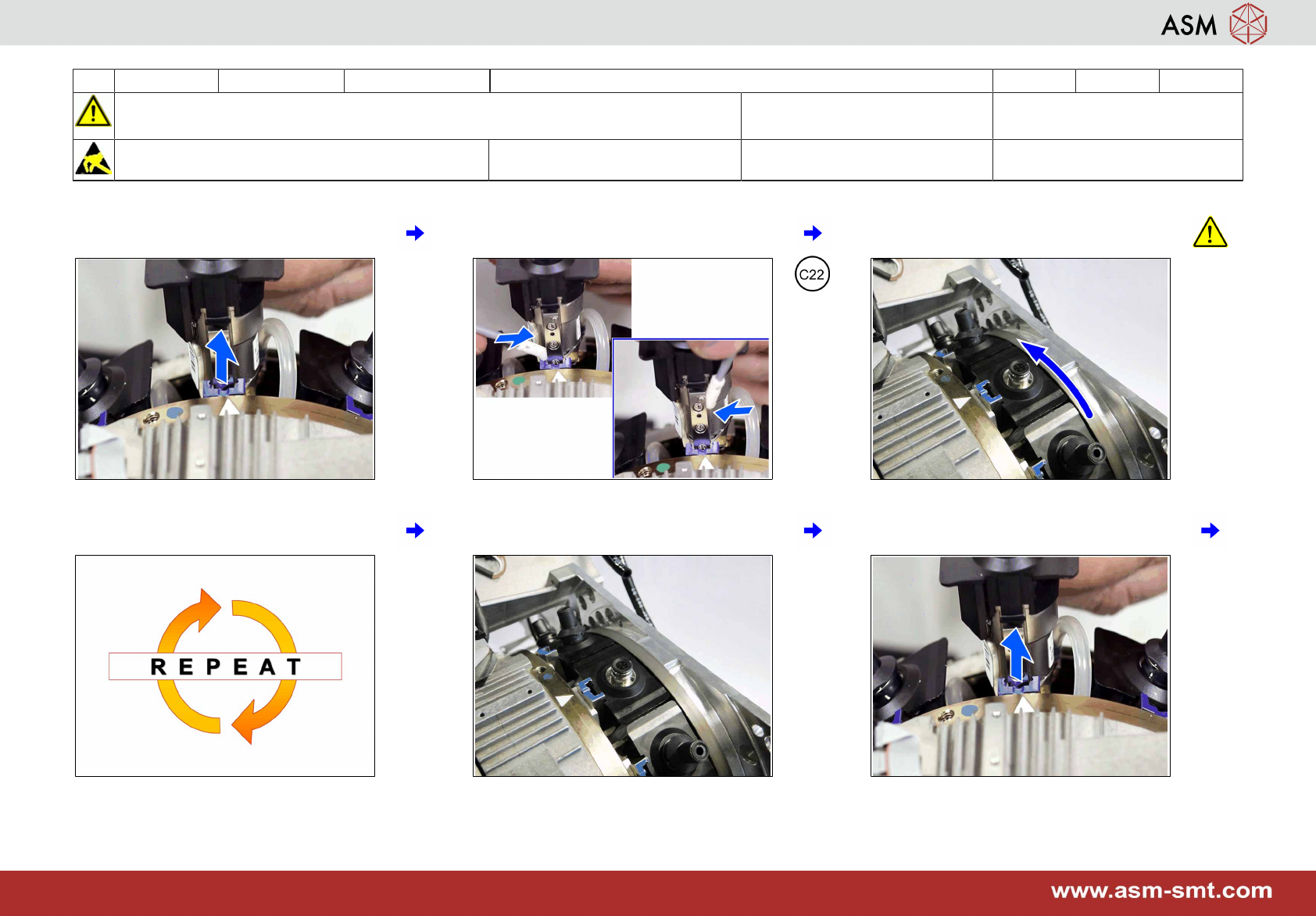

7 Move the segment out to maximum and
hold it there.
8 Clean the DP linear guide on both sides. 9 Move the segment back in and turn the
star until the next segment is at the top.
10 Repeat step 7 to 9 for all other segments. 11 Turn the star until segment 1 is at the top. 12 Move the segment out to maximum and
hold it there.
7 6-monthly CPP Clean / lubricate the DP segment guide 6 min 3 / 3
CAUTION!Refer to safety instructions in user manual before commencing Mainten-
ance
NOTICE! ESD guidelines are to be followed Tool:
T21, T22 , T23
Wear Part:
W16
Consumables:
C10 , C22
13 Apply 1 x 2 μl with a slight motion to the
center of the left and right guide.
14 Move the segment 5 times up and down. 15 Repeat step 12 to 14 one more time.
16 Move the segment back in and turn the
star until the next segment is at the top.
17 Repeat step 12 to 16 for all other seg-
ments.
18 Clean up the multipette. See appendix
"Clean up the multipette".
