8 6-monthly CPP Clean / lubricate the DP drive bearing 4 min 1 / 2 CAUTION!Refer to safety instructions in user manual before commencing Mainten- ance NOTICE! ESD guidelines are to be followed Tool: T21, T22, T24 Wear P…

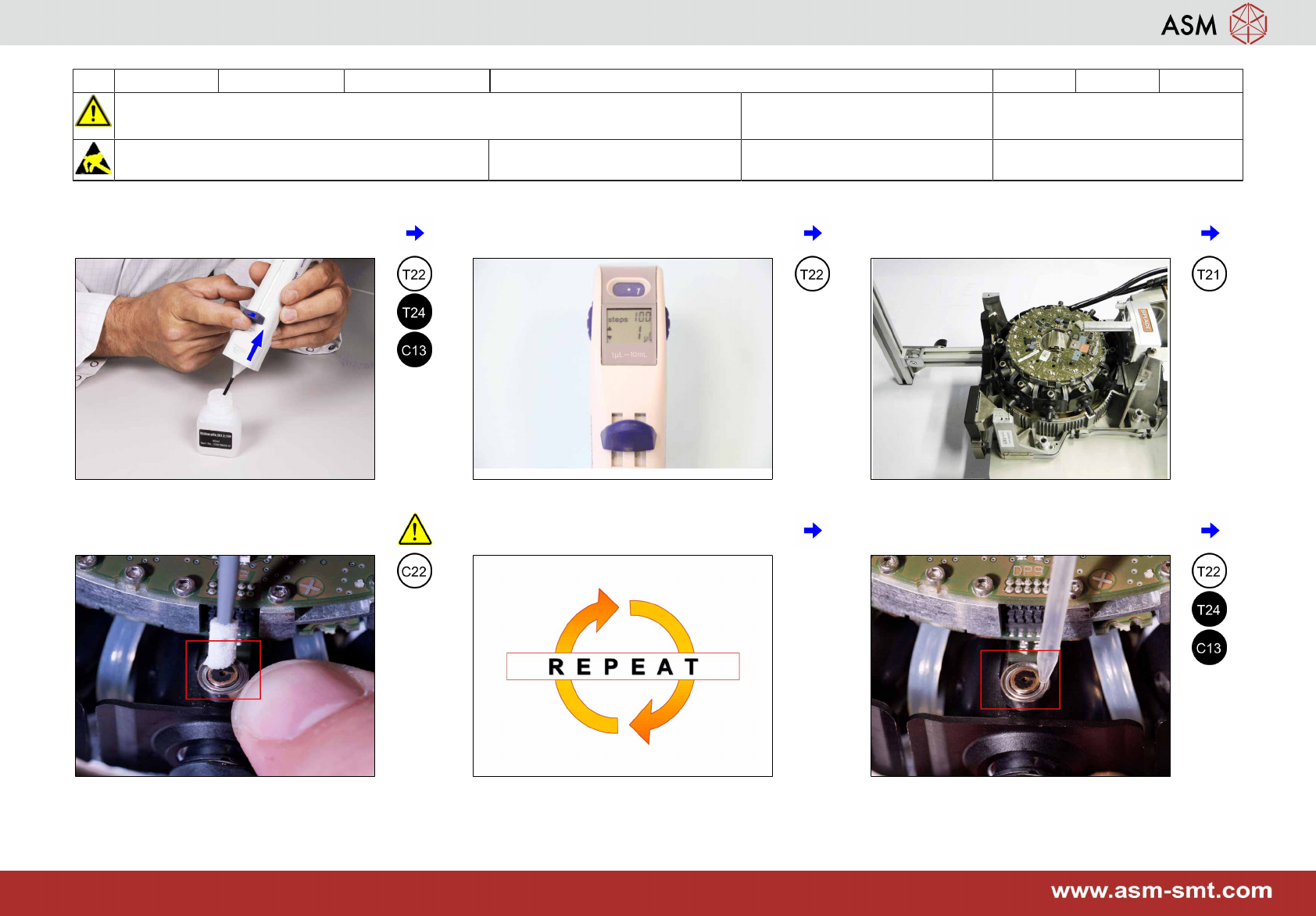

8 6-monthly CPP Clean / lubricate the DP drive bearing 4 min 1 / 2
CAUTION!Refer to safety instructions in user manual before commencing Mainten-
ance
NOTICE! ESD guidelines are to be followed Tool:
T21, T22, T24
Wear Part: Consumables:
C13, C22
1 Prepare the multipette. See appendix
"Prepare the multipette".
2 Turn the wheel and adjust 1 µl. 3 Turn the head upright and put the head
stand flat on the table.
4 Dry clean the drive bearing fixing it with
your finger.
5 Repeat Step 4 for all other segments. 6 Apply 1 x 1 μl to the gap of the bearing
and move it afterwards by 3 turns.
8 6-monthly CPP Clean / lubricate the DP drive bearing 4 min 2 / 2
CAUTION!Refer to safety instructions in user manual before commencing Mainten-
ance
NOTICE! ESD guidelines are to be followed Tool:
T21, T22, T24
Wear Part: Consumables:
C13, C22
7 Repeat step 6 for all other segments. 8 Clean up the multipette. See appendix
"Clean up the mulipette".
