9 6-monthly CPP Check / replace the hoses at DP drives 8 min 1 / 3 CAUTION!Refer to safety instructions in user manual before commencing Mainten- ance NOTICE! ESD guidelines are to be followed Tool: T21, T53 Wear Part: …

8 6-monthly CPP Clean / lubricate the DP drive bearing 4 min 2 / 2

CAUTION!Refer to safety instructions in user manual before commencing Mainten-

ance

NOTICE! ESD guidelines are to be followed Tool:

T21, T22, T24

Wear Part: Consumables:

C13, C22

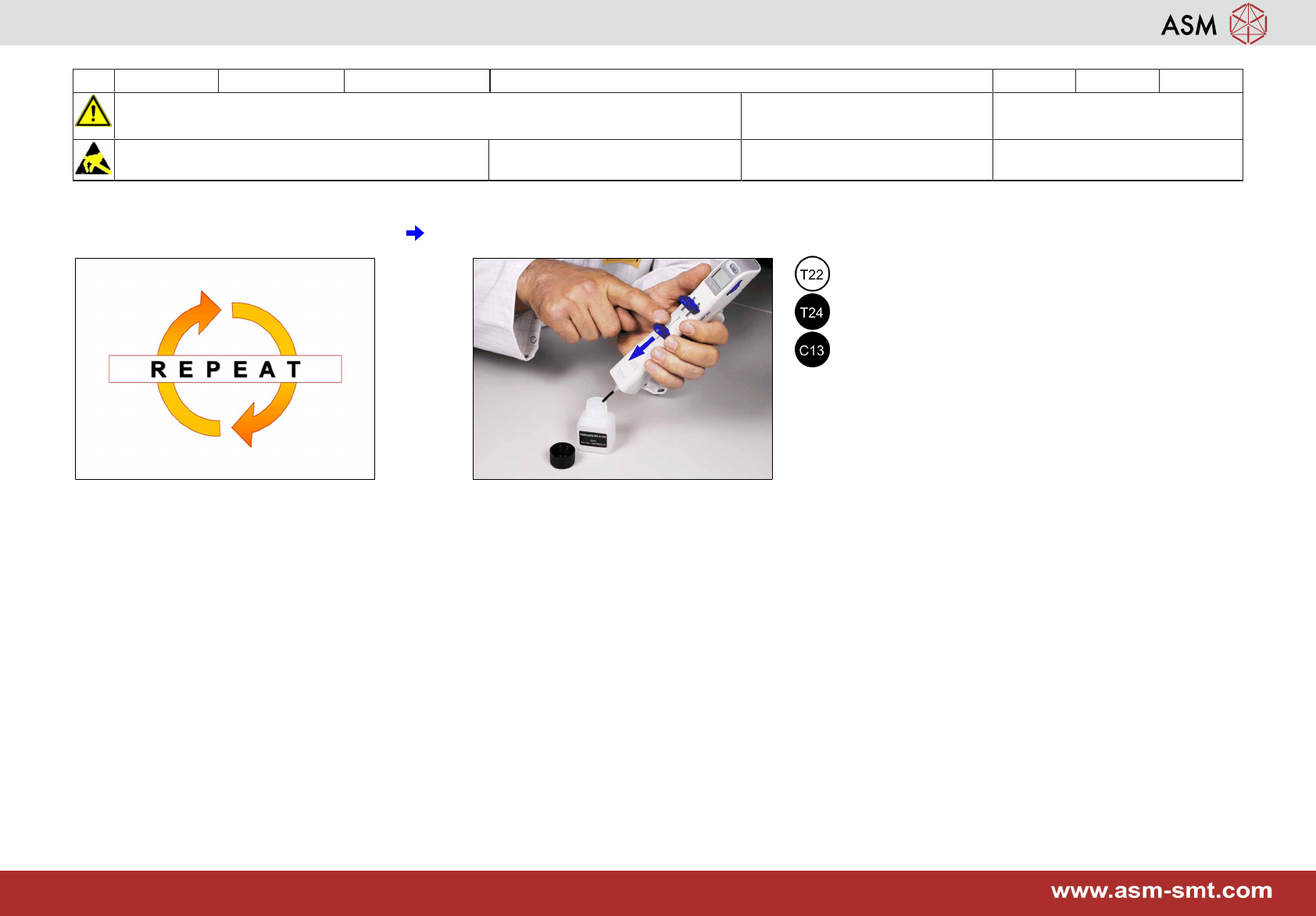

7 Repeat step 6 for all other segments. 8 Clean up the multipette. See appendix

"Clean up the mulipette".

9 6-monthly CPP Check / replace the hoses at DP drives 8 min 1 / 3

CAUTION!Refer to safety instructions in user manual before commencing Mainten-

ance

NOTICE! ESD guidelines are to be followed Tool:

T21, T53

Wear Part:

Consumables:

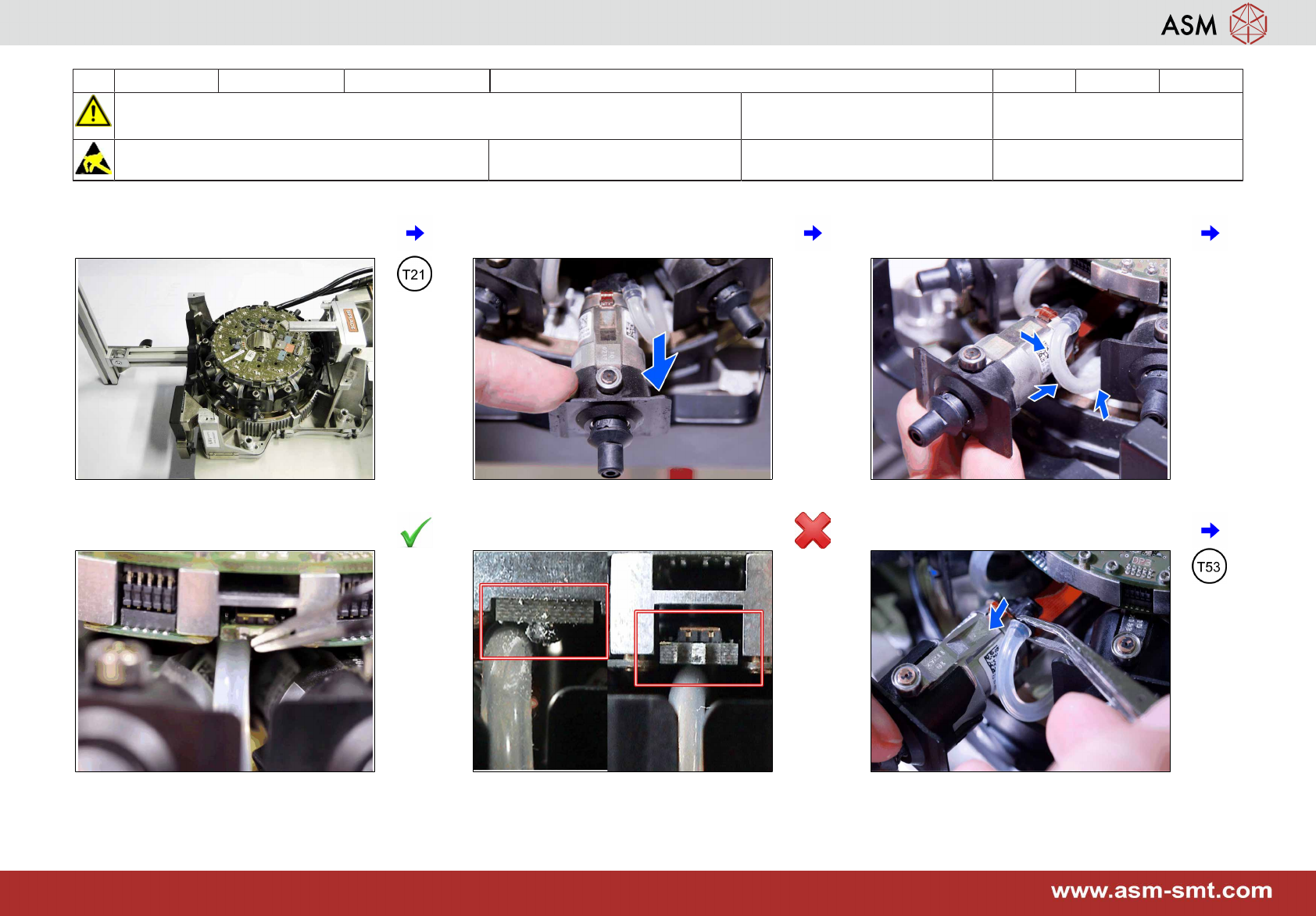

1 Proceed with the head stand flat on the

table.

2 Move the segment out to maximum and

hold it there.

3 Check the vacuum hose for damages.

4 If OK go to step 8. 5 If not OK remove the vacuum hose. 6 Disconnet the hose at the DP drive.

9 6-monthly CPP Check / replace the hoses at DP drives 8 min 2 / 3

CAUTION!Refer to safety instructions in user manual before commencing Mainten-

ance

NOTICE! ESD guidelines are to be followed Tool:

T21, T53

Wear Part:

Consumables:

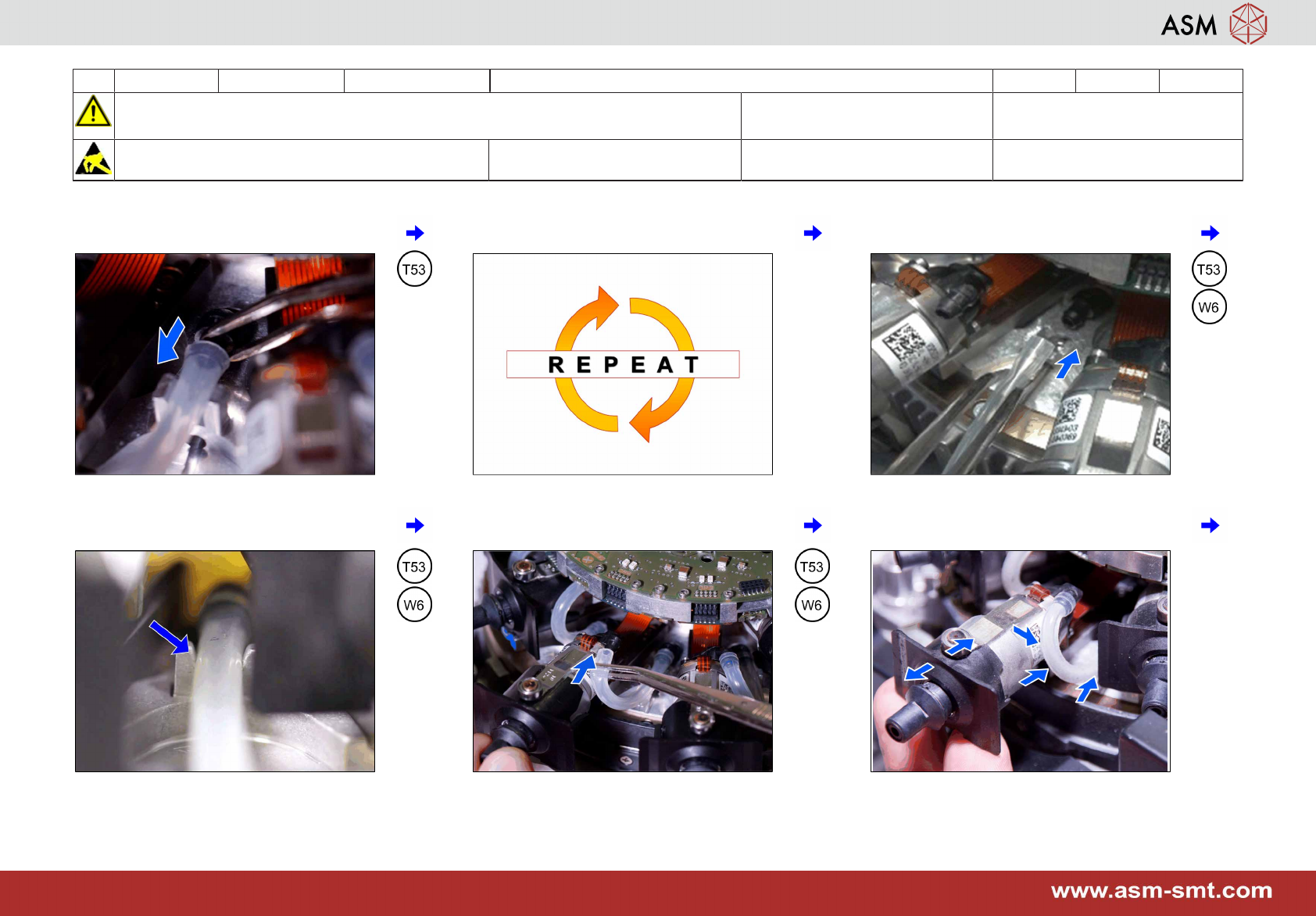

7 Disconnect the hose at the star carrier. 8 Repeat step 2 to 7 for all other segments. 9 Connect the new hose at the star carrier.

10 Take care of the correct hose orientation. 11 Connect the new hose at the DP drive. 12 Move the DP drive to check the vacuum

hose moves freely.
