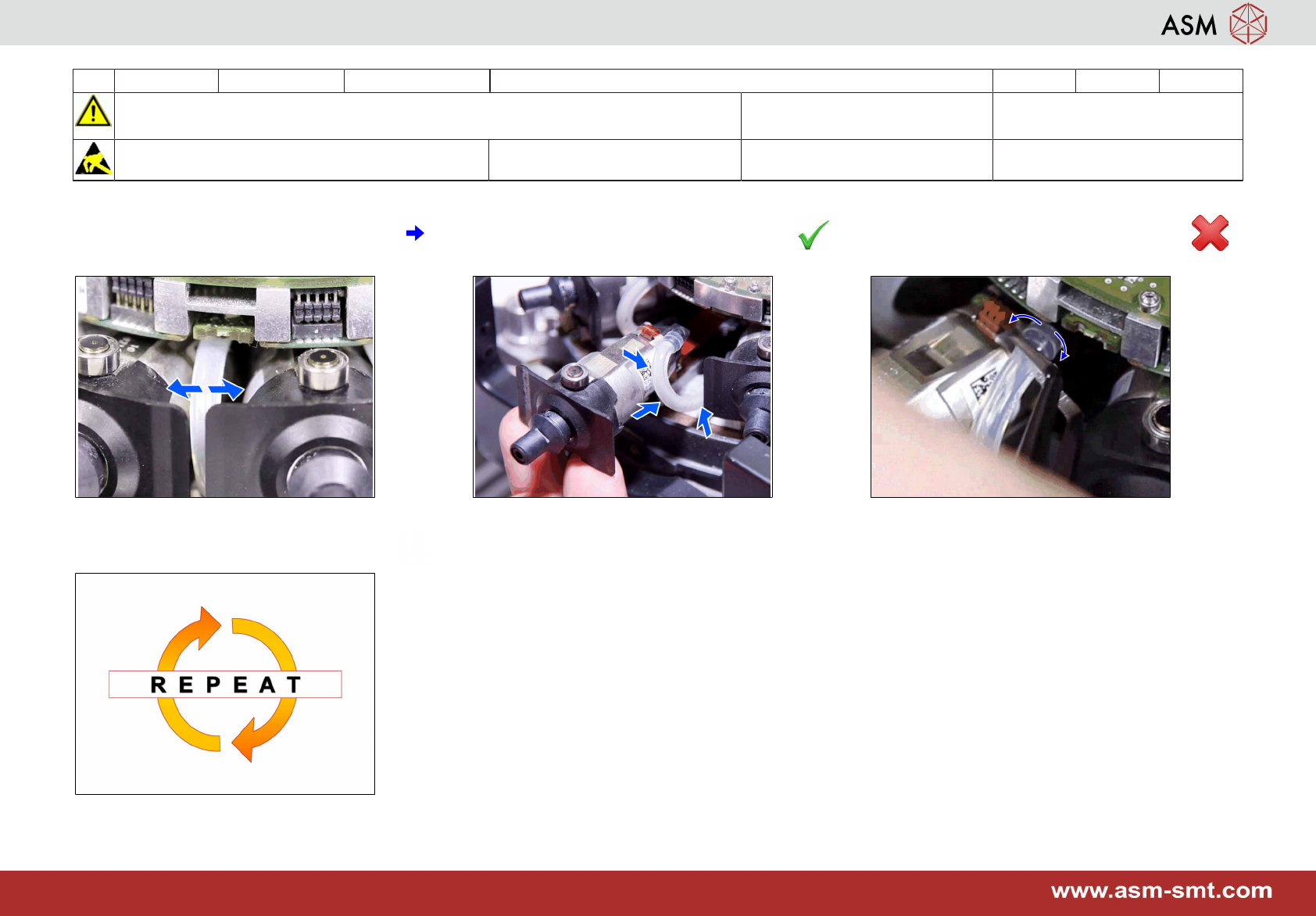

9 6-monthly CPP Check / replace the hoses at DP drives 8 min 3 / 3 CAUTION!Refer to safety instructions in user manual before commencing Mainten- ance NOTICE! ESD guidelines are to be followed Tool: T21, T53 Wear Part: …
9 6-monthly CPP Check / replace the hoses at DP drives 8 min 2 / 3
CAUTION!Refer to safety instructions in user manual before commencing Mainten-
ance
NOTICE! ESD guidelines are to be followed Tool:
T21, T53
Wear Part:
W6
Consumables:
7 Disconnect the hose at the star carrier. 8 Repeat step 2 to 7 for all other segments. 9 Connect the new hose at the star carrier.
10 Take care of the correct hose orientation. 11 Connect the new hose at the DP drive. 12 Move the DP drive to check the vacuum
hose moves freely.
9 6-monthly CPP Check / replace the hoses at DP drives 8 min 3 / 3
CAUTION!Refer to safety instructions in user manual before commencing Mainten-
ance
NOTICE! ESD guidelines are to be followed Tool:
T21, T53
Wear Part:
W6
Consumables:
13 Move the DP drive completely in. The va-
cuum hose must have some play to both
sides.
14 If OK go to step 16. 15 If not OK twist the hose at the DP drive
and go to step 12.
16 Repeat step 9 to 15 for all other segments
with hoses removed.
