10 6-monthly CPP Clean the DP light barrier 15 min 1 / 2 CAUTION!Refer to safety instructions in user manual before commencing Mainten- ance NOTICE! ESD guidelines are to be followed Tool: T3, T21 Wear Part: Consumables…

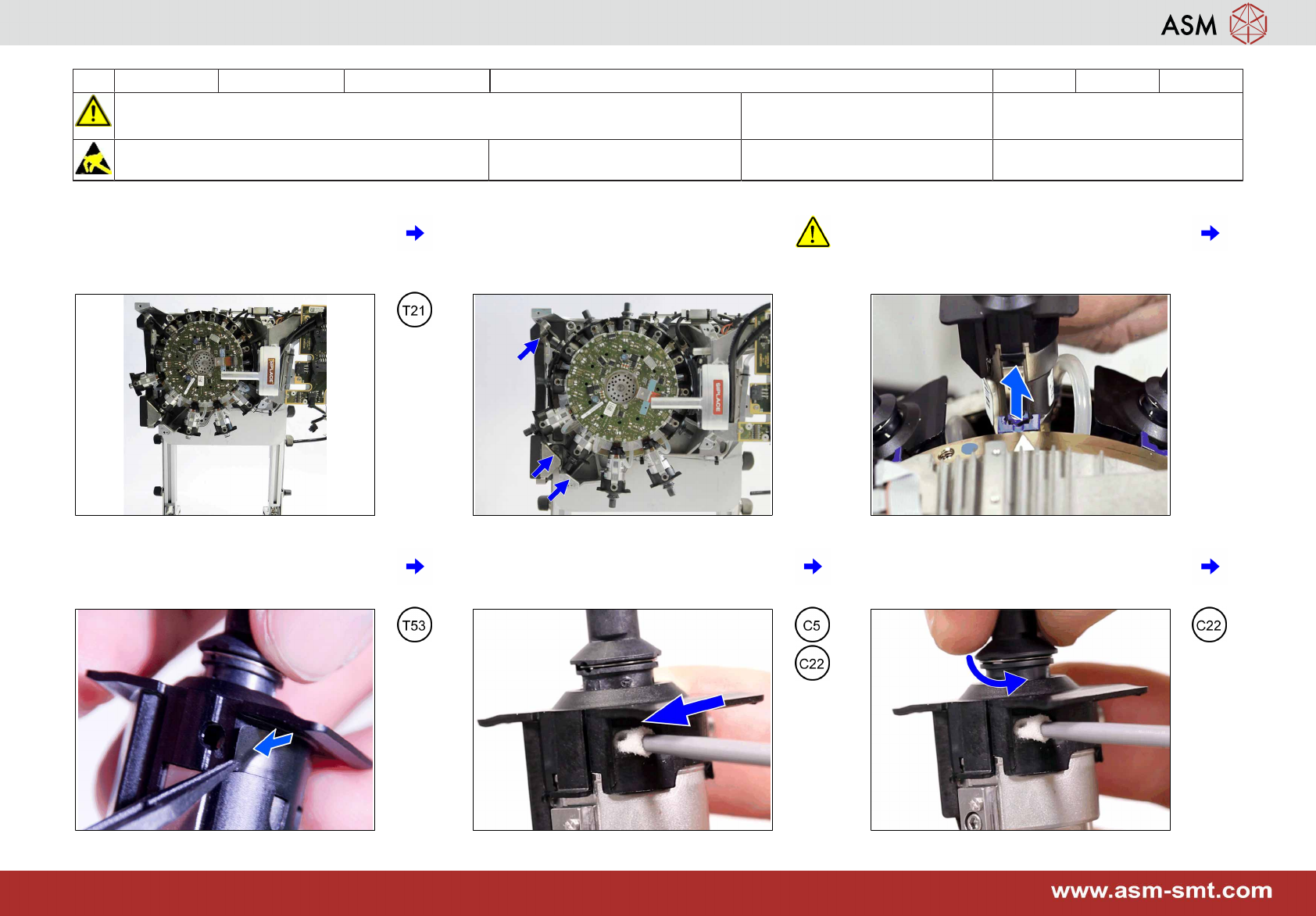

10 6-monthly CPP Clean the DP light barrier 15 min 1 / 2
CAUTION!Refer to safety instructions in user manual before commencing Mainten-
ance
NOTICE! ESD guidelines are to be followed Tool:
T3, T21
Wear Part: Consumables:
C5 , C22 , C28
1 Move the head 90° to the right and put the
head stand in the upright position.
2 To prevent damage to the segments en-
sure they are not hitting the head frame or
the component sensor when turning the
star.
3 Move the segment out to maximum and
hold it there.
4 Remove the black protection label. 5 Move a new cleaning stick fully into the
service hole until you recognize a move-
ment at the nozzle.
6 Turn the DP station full 3 rotations using
the nozzle and remove the cleaning stick.

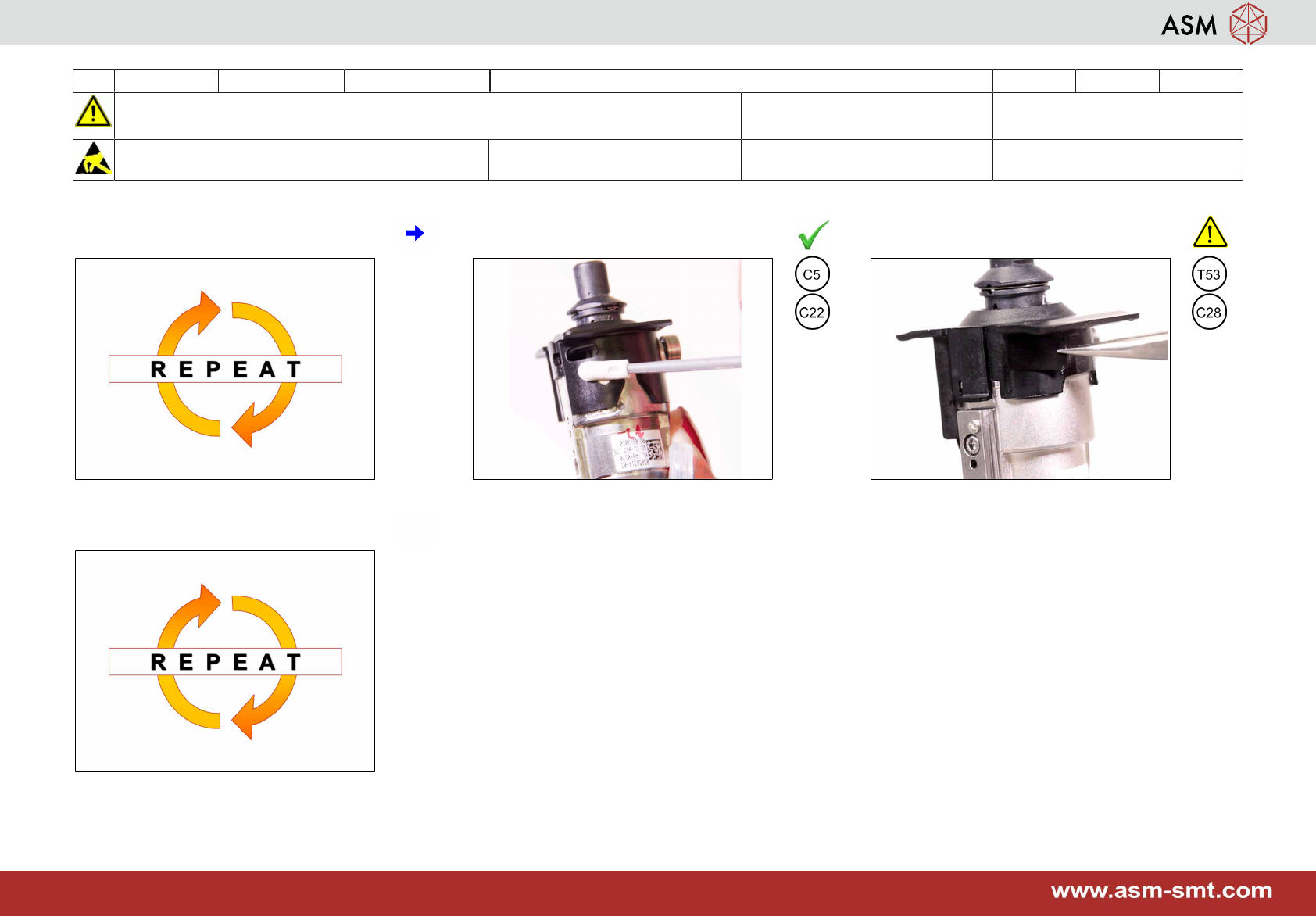

10 6-monthly CPP Clean the DP light barrier 15 min 2 / 2
CAUTION!Refer to safety instructions in user manual before commencing Mainten-
ance
NOTICE! ESD guidelines are to be followed Tool:
T3, T21
Wear Part: Consumables:
C5 , C22 , C28
7 Repeat step 5 to 6 if the tip of the cleaning
stick is dirty.
8 If OK clean the area around the service
hole.
9 Attach a new black protection label. En-
sure the opening is fully covered.
10 Repeat step 3 to 9 for all other segments.
