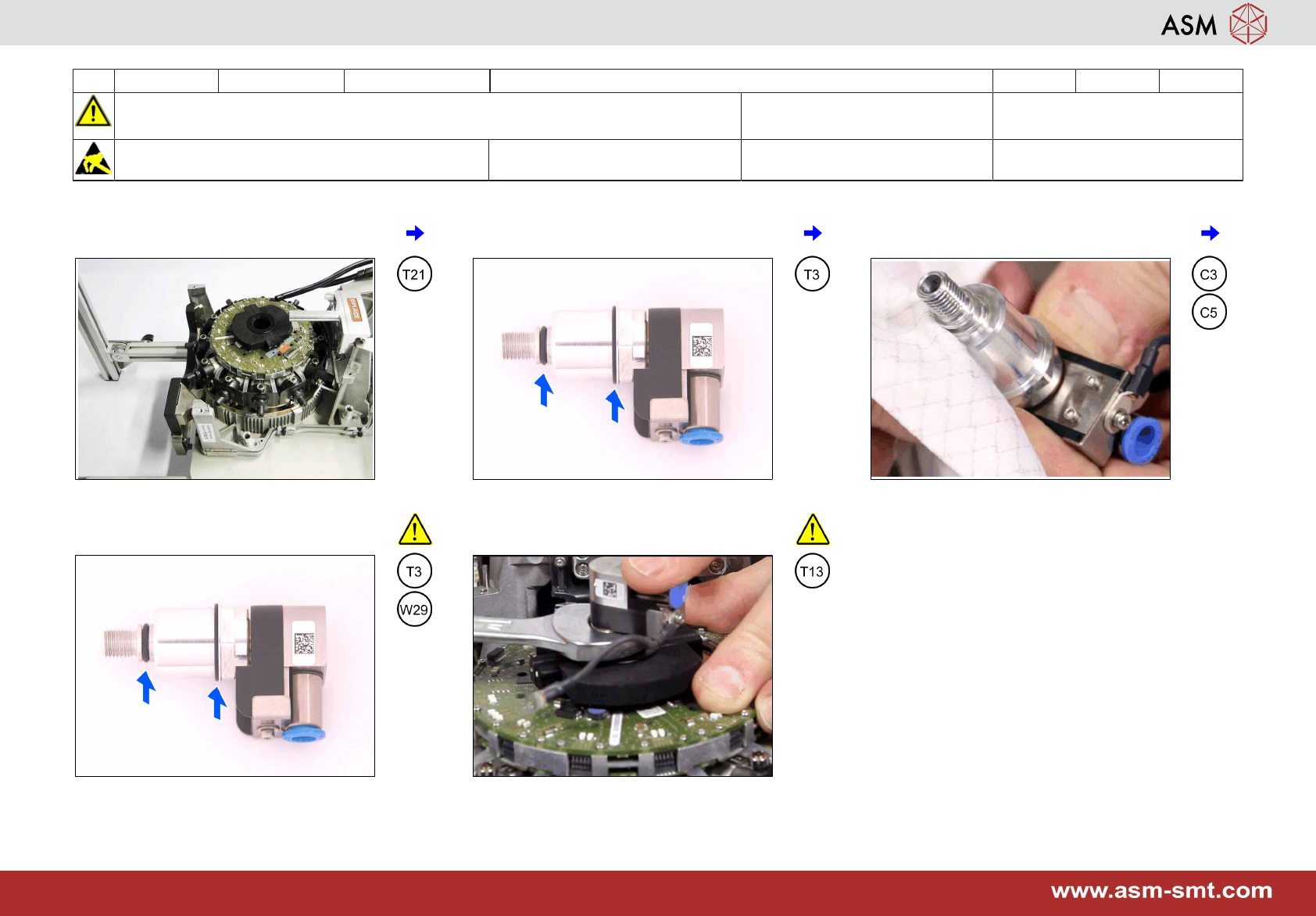

13 6-monthly CPP Clean / mount the screwed joint 1 min 1 / 1

CAUTION!Refer to safety instructions in user manual before commencing Mainten-

ance

NOTICE! ESD guidelines are to be followed Tool:

T3, T13, T21

Wear Part:

W29

Consumables:

C3, C5

1 Proceed with the head stand flat on the

table.

2 Remove both O-rings. 3 Clean the screwed joint.

4 Mount two new O-rings without lubricating

them.

5 Place the screwed joint and tighten the fix-

ing nut very carefully.

14 6-monthly CPP Mount the front plate 5 min 1 / 3

CAUTION!Refer to safety instructions in user manual before commencing Mainten-

ance

NOTICE! ESD guidelines are to be followed Tool:

T12, T19, T21, T30, T47, T77, T78

Wear Part:

W16

Consumables:

1 Proceed with the head stand flat on the

table.

2 Put a calibration nozzle 2057 onto seg-

ment 1.

3 Slide in the first part of the DP mount ten-

sion ring. Note: Ensure the lock is on the

left.

4 Position it properly on the nozzles. 5 Insert in the second part of the DP mount

tension ring. Note: Ensure the lock is on

the right.

6 Align the two parts and close the locking

on both sides. Ensure the correct position

of the notch.
