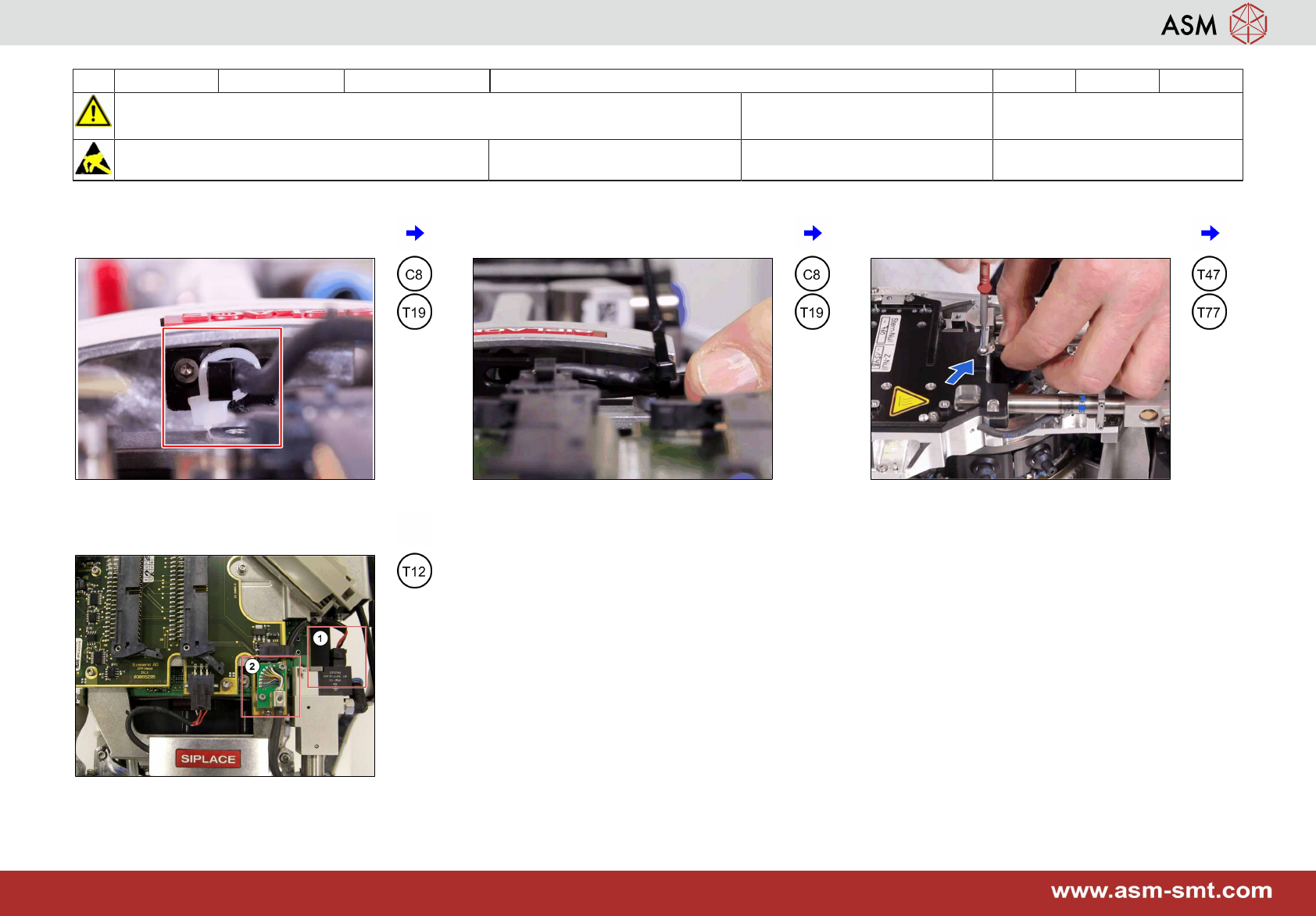

14 6-monthly CPP Mount the front plate 5 min 3 / 3
CAUTION!Refer to safety instructions in user manual before commencing Mainten-
ance
NOTICE! ESD guidelines are to be followed Tool:
T12, T19, T21, T30, T47, T77, T78
Wear Part:
W16
Consumables:
C8
13 Fix the cable with a cable tie at the center
of the holder (version with short cable).
14 Fix the cable with a cable tie at the side of
the holder (version with long cable).
15 Fix the earth cable at the front plate.
16 Plug in the cables (1) and fix the con-
nector with the two screws (2).
15 6-monthly CPP Lubricate the star bearing 3 min 1 / 2
CAUTION!Refer to safety instructions in user manual before commencing Mainten-
ance
NOTICE! ESD guidelines are to be followed Tool:
T12, T21, T22, T26, T29
Wear Part:
W16
Consumables:
C11
1 Prepare the multipette. See appendix
"Prepare the multipette"
2 Turn the wheel and adjust 2 µl. 3 Move the head 90° to the right and put the
head stand in the upright position.
4 Remove the nozzle from segment 1 and
aling the segment with the mark at the star
housing.
5 Remove the grub screw. 6 Apply 1 x 2 µl of lubricant and remove the
multipette.
