Equipment required for CPP head maintenance (6-monthly) Main sub units CPP head 1. Star bearing 2. Segment 3. Pressure regulator valve 4. Front plate 5. Silencer 6. Linear guide for Z drive 7. Component sensor (on the un…

100%1 / 70
Table of Contents
Equipment required for CPP head maintenance (6-monthly)
Main sub units CPP head
1. Star bearing
2. Segment
3. Pressure regulator valve
4. Front plate
5. Silencer
6. Linear guide for Z drive
7. Component sensor (on the underside of the head)

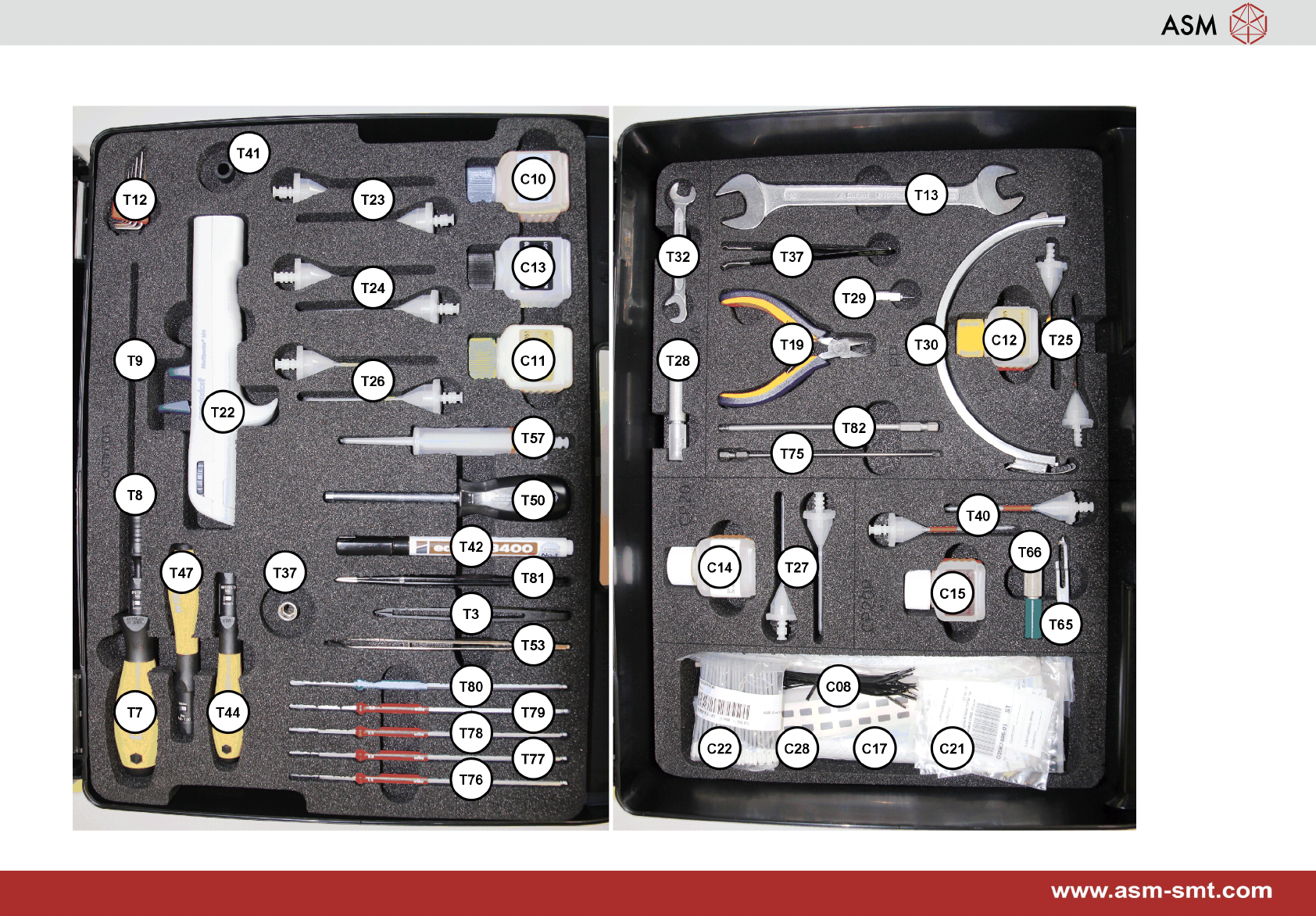

Tools used from the Head Maintenance Kit
