Installation Manual SIPLACE Setup Center 2.2
5.1.2 MSDE Installation
If the database decision of SIPLACE Setup Center Database (5.1.1) is made to use a MSDE
installation, this must be done prior installing SIPLACE Setup Center.
Installing MSDE is done by executing the file \3rdpartyinstaller\MSDE\SETUP_Step.cmd on the
Setup CD.
If the TCP port 1433 is not available then the alternate installer
\3rdpartyinstaller\MSDE\SETUP_Step_dynamic_port.CMD must be used.
See the file \3rdpartyinstaller\MSDE\readme.txt for more details.
Note:
This installer creates a MSDE instance with the name “SIPLACE_MSDE”.
5.2 Hardware Installation
We recommend performing the installation in the specified order: 5
1) Installation of hardware
2) Installation of software, see page
This chapter describes the hardware installation procedure.
5.2.1 Dragon Scanner’s Cradle
• The Dragon scanner’s cradle needs to be connected to the Setup Center PC’s COM-port.
The default port is COM1.
• If the COM1 port is already in use another COM port need to be configured
(Another port can be configured in the Setup Center after installation: open Setup Center
setting dialog – menu Options/Settings – dialog Scanner/Dragon Scanner/Serial Port).

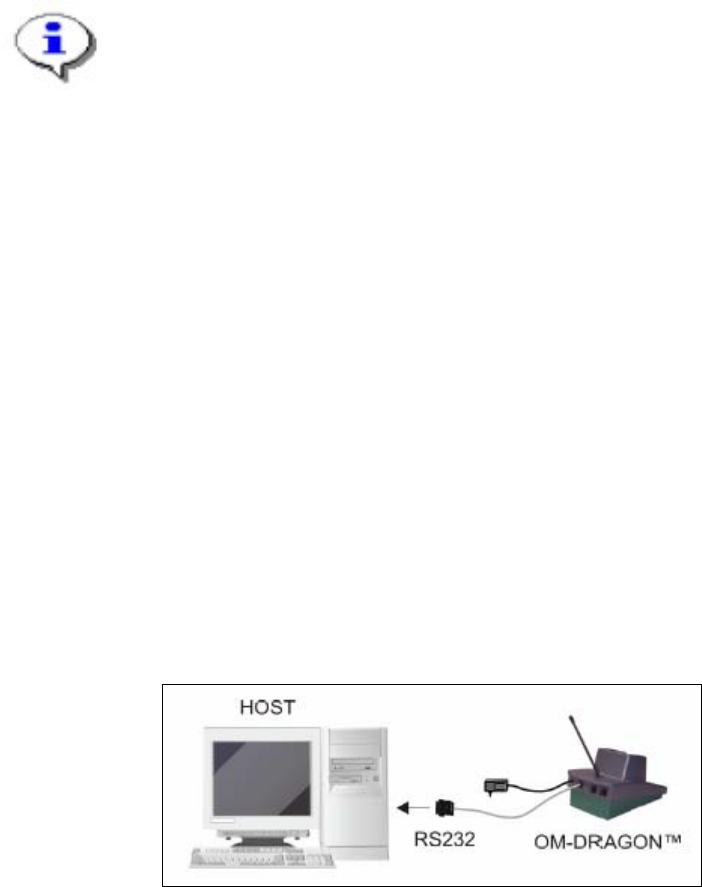

• Connect the cradle to the Setup Center PC according to the following picture:
Fig. 5-1 RS232 Connection
19 of 90
-
SIPLACE Setup Center 2.2 Installation Manual
5.2.2 Safety Instructions
The Dragon Scanner conforms to laser class 2.
LASER RADIATION!
Do not look into beam
Laser class 2
Warning label W216 (shown above) is displayed on the Dragon scanner.
CAUTION:
Before using the Dragon scanner, inform all operating personnel about the laser
regulations.
While operating the Dragon scanner, observe the respective regulations in line with
VDE 0837 „Protection from radiation emitted by laser devices“ and the „Laser
radiation“ accident prevention regulations (VBG93), applicable in Germany.
Also observe the accident prevention regulations applicable in your country.
Despite the low laser power, avoid looking directly at the laser beam. The natural
closure reflex of your eyelids will protect your eyes from the visible beam.
5.2.3 Optional: Docking Station
To obtain more details about using the docking station for X-Series tables, please refer to the
current version of the operating manual.
5.2.3.1 Installing the CAN Card in the PC
The data connection between the Setup Center PC, on which the Setup Center software is to be
installed, and the docking station is realized via a CAN Bus. This requires installation of a CAN
card in the SC PC on which the SC software is to be installed. This CAN card is included in the
delivery of docking station (optional). 5
Open the SC PC housing according to the manufacturer's instructions.
Select a free PCI slot in your SC PC for installing the CAN card.
Plug the CAN card into the selected PCI slot.
Close the SC PC housing according to the manufacturer's instructions.
20 of 90
Installation Manual SIPLACE Setup Center 2.2
The drivers for the CAN card are contained on the SC software installation CD. These
need to be installed separately. For a detailed description, please see Section “Optional:
Installing CAN Drivers”.
Fig. 5-2 CAN card - power CAN PCI
5.2.3.2 Installing CAN Drivers
Note:
You require administrator rights for the installation procedure!
Switch on the SC PC. The hardware wizard will open.
