00195467-01_Installation Manual Setup Center 2.2 - 第23页
Installation Manual SIPLACE Setup Center 2.2 The software for the CAN card is contain ed on the SC ESS installation CD. This needs to be inserted into the CD-ROM drive of your SC ESS PC. Click on the Have Disk ... bu…
SIPLACE Setup Center 2.2 Installation Manual
Select Install from a list or specific location ....
Click on Next to continue.
Select Don’t search. I will choose ....
Click on Next to continue.
Select Show All Devices and then click on Next.
22 of 90
Installation Manual SIPLACE Setup Center 2.2
The software for the CAN card is contained on the SC ESS installation CD. This needs to
be inserted into the CD-ROM drive of your SC ESS PC.

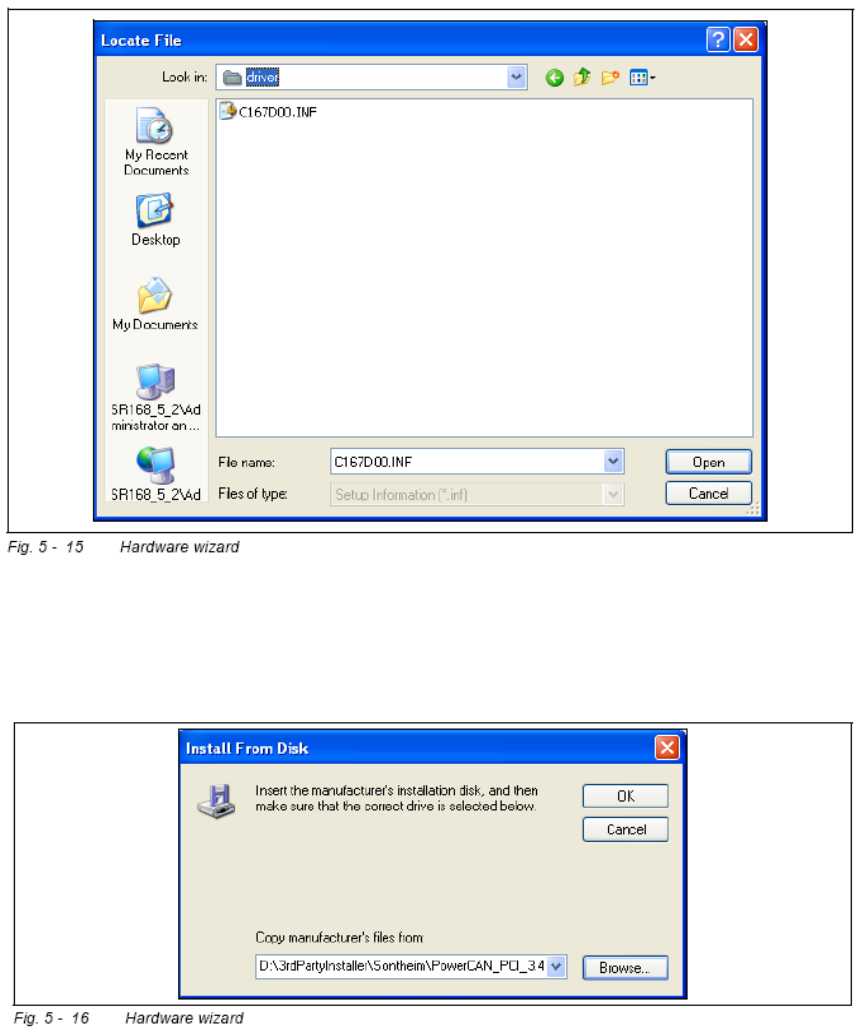

Click on the Have Disk ... button.
Click on the Browse ... button.
23 of 90
-
SIPLACE Setup Center 2.2 Installation Manual
Open the folder \3rdparty installer\Sontheime PCI CAN Driver\V3.038\driver and
select the file C167D00.INF on the SC installation CD,.
Click on Open.
Click on OK.
24 of 90
