SIPLACE Setup Center 2.2 Installation Manual

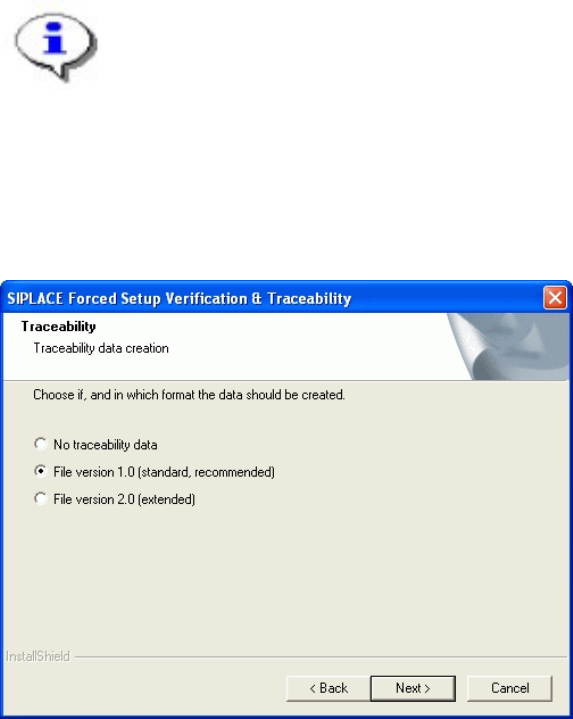

Step 7 Traceability

Note:

Traceability settings can only be changed, if the Tractability Option is installed at

the station.

 Here you can choose whether the Traceability Data should be created.

 Furthermore you can select the File version 1.0 for standard TRC file or the File version 2.0

for extended TRC file.

 Click Next to continue. Wait until the next dialog box appears. It can be take a few minutes.

64 of 90

Installation Manual SIPLACE Setup Center 2.2

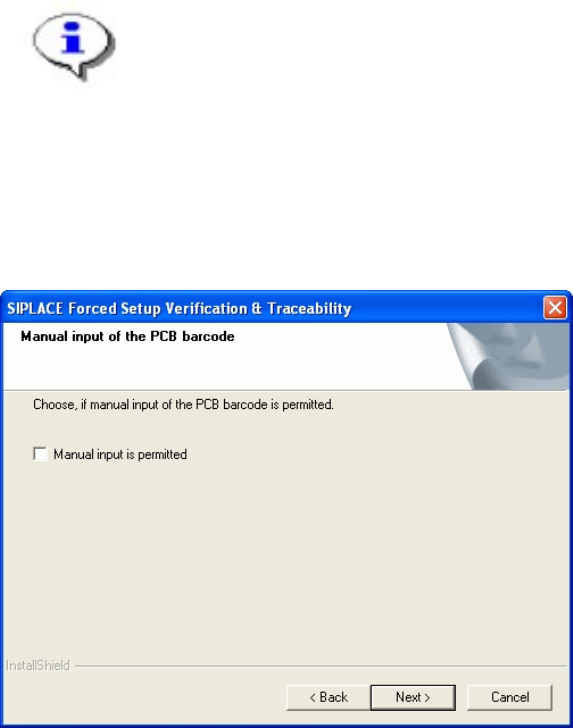

Step 8 Manual input of the PCB barcode

Note:

Traceability settings can only be changed, if the Tractability Option at the station

is installed.

 If this checkbox is selected, the PCB barcode can be entered manually, in case that it was

not accepted from a barcode reader.

 Click Next to continue.

65 of 90

SIPLACE Setup Center 2.2 Installation Manual

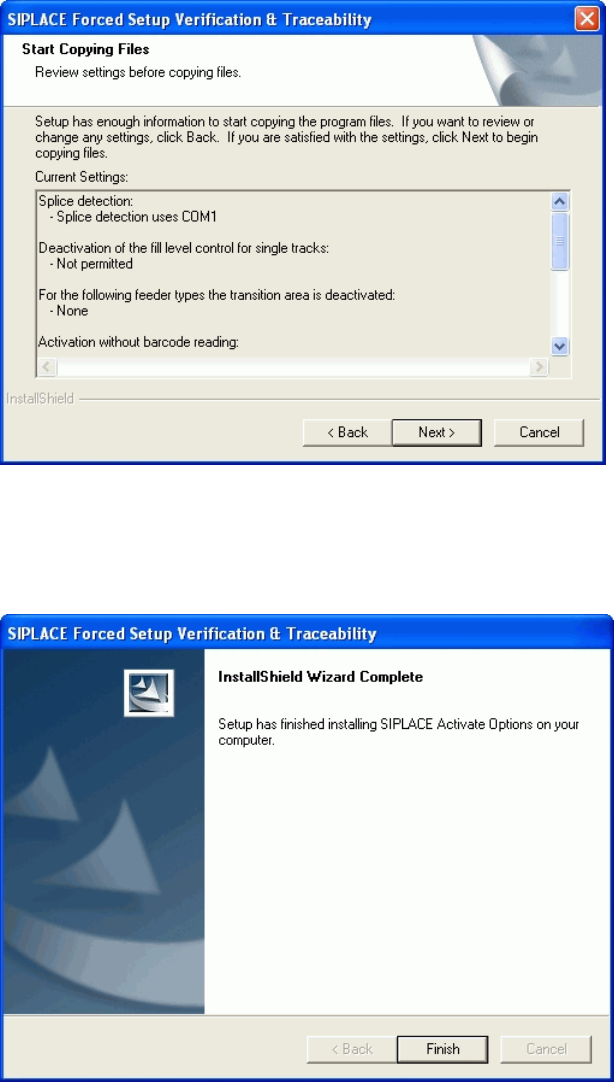

Step 9 Overview of the settings

 Here you will see the overview of the settings.

 Click Back to review or change the settings.

 Click Next to continue the installation.

Step 10 Finishing the installation

 Click Finish to end the installation.

66 of 90
