SIPLACE Setup Center 2.2 Installation Manual  Press any key to finish the setup 68 of 90

Installation Manual SIPLACE Setup Center 2.2

5.3.2.2 Installing “Mobilink Patch”

When installing the Forced Setup Verification for placement stations which are supported via the

SMV interface, it is necessary to install a patch for the ‘mobilink.exe’. Currently the following

station software versions have to be updated.

• 407.04 SP1 and higher

• 503.04 SP2 and higher

• 505.03 SP1 and higher

Insert the CD “Mobi Patch SMV 1.3”. The installation starts automatically.

The dialog boxes shown below will be displayed during the installation procedure.

Note:

You are required to have administrator rights for the installation procedure!

Start Installation

 Log on as administrator to the station PC

 Place the Patch CD in your CD-ROM drive.

 The following command window will appear.

 Press any key to start the installation or close the window if you don’t want that

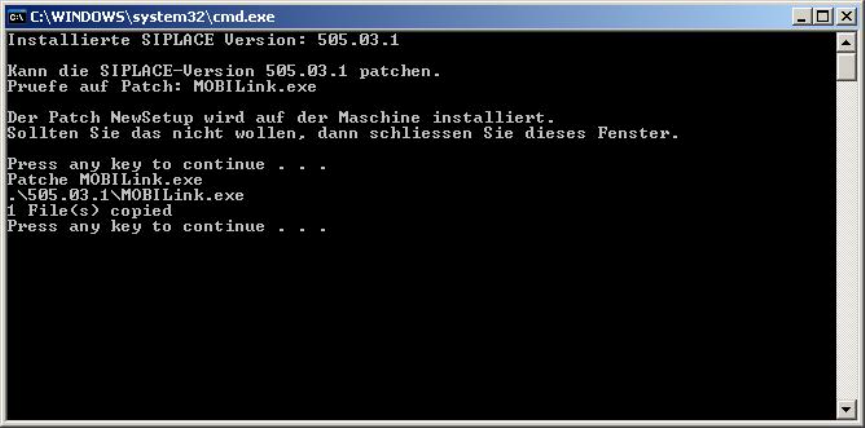

 When installation is finished the command window looks like this:

67 of 90

SIPLACE Setup Center 2.2 Installation Manual

 Press any key to finish the setup

68 of 90

Installation Manual SIPLACE Setup Center 2.2

5.4 Steps to perform after Installation

5.4.1 SIPLACE Setup Center Database and Windows XP SP2

When installing Windows XP Service Pack 2 (SP2), the Windows Firewall, formerly ICF (Internet

Connection Firewall), is enabled by default. The default configuration in SP2 blocks incoming

traffic for the most TCP ports.

If you are running the SIPLACE Setup Center GUI on a Windows XP SP2 host and the SIPLACE

Setup Center database on another host, you have to open the port 1433 and 1434 for the

database connection. Furthermore, you have to open the port 445, because blocking will cause

errors when using mans MMC snap-ins like Event Viewer, Local Users & Groups, Services,

Computer Management, Disk Management, Device Manager, Group Policy, and others.

Please refer to Windows help to get further information how to open TCP ports.

5.4.2 SIPLACE Setup Center Configuration

SetupCenter GUI requires to be configured before it can be used. The configuration can be found

via the main menu Options | Settings. Read “SIPLACE Setup Center – Getting Started” for more

information.

5.4.3 Dragon Scanner Configuration

New scanners and scanner base stations require the set-up once before the first use.

This doesn’t necessarily need to happen after the Installation of SIPLACE Setup Center, but it is

recommended. The Scanner configuration is independent from the software installation.

Note:

The scanner powers off after a period of inactivity. Pulling the trigger will power the

scanner on.

Setting up the scanner system requires four steps:

1. Scanner configuration

2. Setting of the scanner address

3. Binding the scanner to the RF station

4. RF station configuration
