SIPLACE Setup Center 2.2 Installation Manual Click Start in the Windows start menu. Click Settings. Click Control Panel. Click Administrative Tools. Click Computer Management. Expand the node “Device Manager”…
Installation Manual SIPLACE Setup Center 2.2
Press any key to remove the installation or close the window if you don’t want that
When uninstalling is finished the command window looks like this:
Press any key to finish the setup
7.5 Optional: Uninstalling the CAN Drivers
The CAN drivers can be uninstalled with the Microsoft Device Manager within the Computer
Management.
85 of 90
-
SIPLACE Setup Center 2.2 Installation Manual
Click Start in the Windows start menu.
Click Settings.
Click Control Panel.
Click Administrative Tools.
Click Computer Management.
Expand the node “Device Manager” at the left side
Expand the node “CAN Hardware” at the right side
Right Click to pen the context menu for “C167D00N”
Choose “Uninstall…”
Confirm the deletion of the driver.
86 of 90
Installation Manual SIPLACE Setup Center 2.2
8 Annex
8.1 CAN Bus Cable Connection Examples

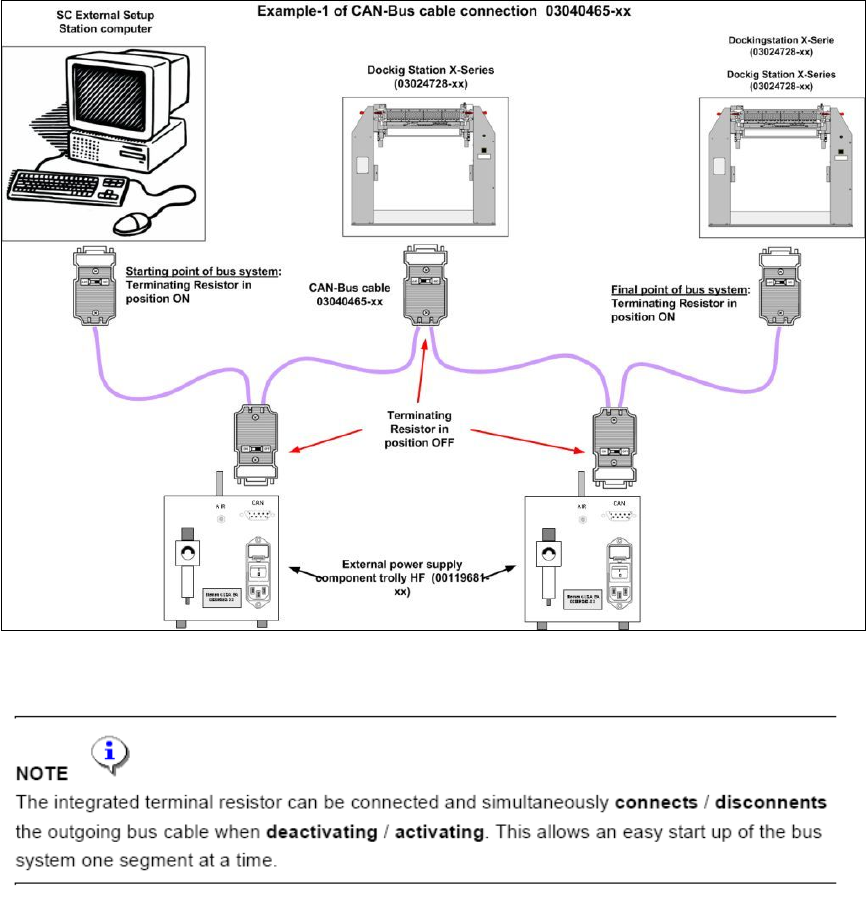

Connection Example 1
Figure 8-1Connection example 1: CAN bus cable
