Connection Example 2

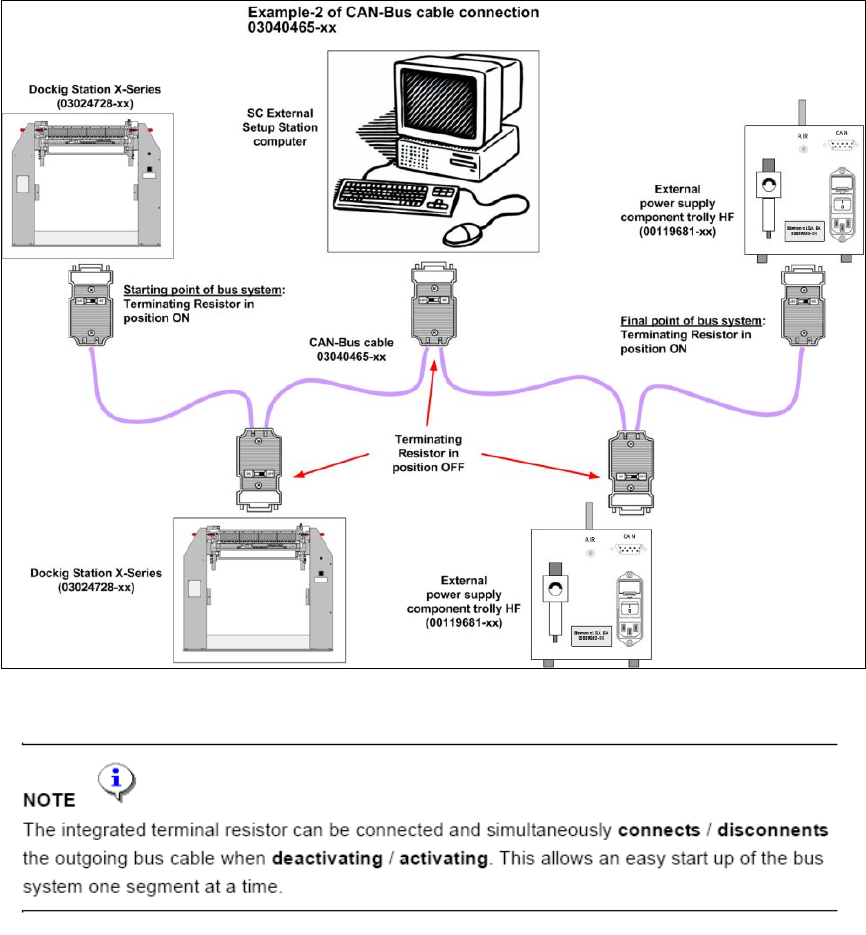

Figure 8-2 Connection example 2: CAN bus cable
88 of 90
Installation Manual SIPLACE Setup Center 2.2

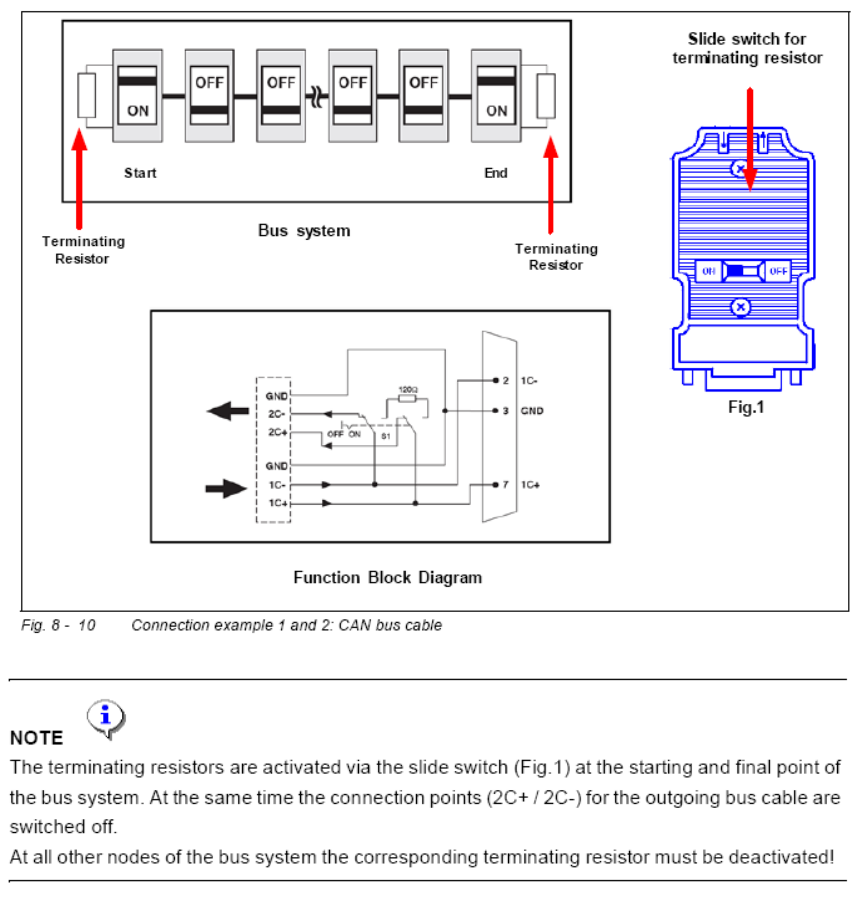

Connection Example 1 and 2
7
89 of 90
-
Item-No.: 00195467-01 Siemens AG
