Page +$1:+$ 125 DECAN L2 Head (4/5) NO. PA R T N O . P ART NAME Q'T Y Old No. Reference 1 AM03 -015056A CA BLE ASSY -R STEP MOTOR PWR 3 2 J7255083A THET A MOT OR ISOLA TOR 3 3 J7055655A THET A_MOTOR_ PLA TE 3 4 FC18…
Page
+$1:+$
124
DECAN
L2

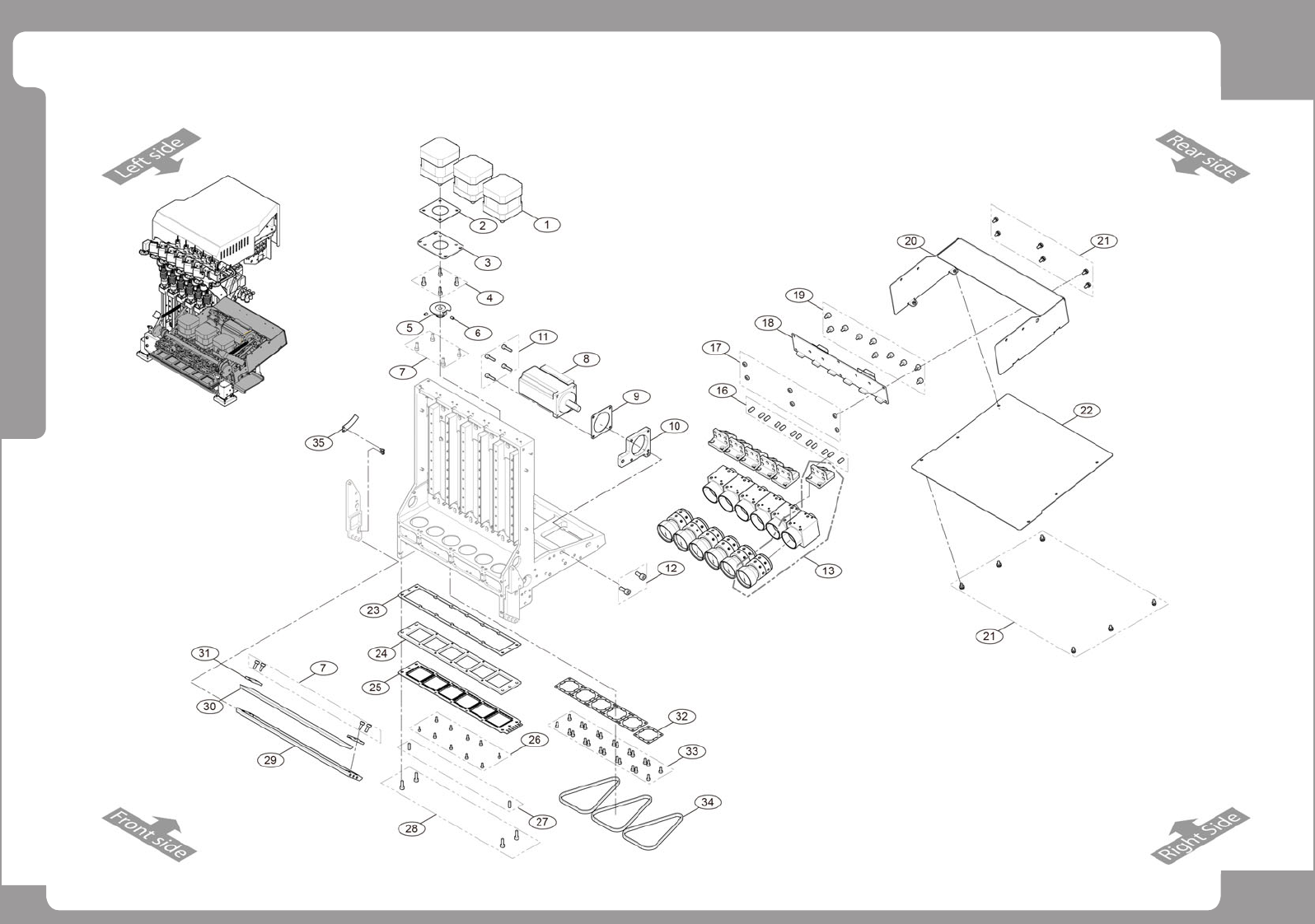

Head (4/5)
Page
+$1:+$
125
DECAN
L2
Head (4/5)
NO. PART NO. PART NAME Q'TY Old No. Reference
1 AM03-015056A CABLE ASSY-R STEP MOTOR PWR 3
2 J7255083A THETA MOTOR ISOLATOR 3
3 J7055655A THETA_MOTOR_PLATE 3
4 FC18-902724 SOCKET HEAD CAP SCREW[M3*8 (SUS)] 12
5 J71551025A PULLEY-R_AXIS2 3
6 FC18-902841 SOCKET SET SCREW [M3*4 (BL/ZN)] 12
7 FC18-902722 SOCKET HEAD CAP SCREW 28
8 AM03-015392A CABLE ASSY-SW MOTOR 1
9 J7255081A MIRROR MOTOR ISOLATOR 1
10 FC09-004452A BRACKET-MIRROR_MOTOR_BKT 1
11 FC18-901859 SOCKET HEAD CAP SCREW 4
12 FC18-902741 SOCKET HEAD CAP SCREW 4
13 AM03-031500A ASSY,OPTICS-L2_FLY_FOV24_ONE_KIT 6 HEXA Type / #239 ~
AM03-017022B ASSY,HEAD-FLY CAM KIT L2 6 AM03-017022A MEGA Type / #1 ~ 238
16 FC18-901206 DOWEL PIN 12
17 FC18-901044 HEX NUT 8
18 AM06-000358B ASSY,PCB SMD-CAMERA_IO BD 1
19 FC29-900610 HEX SUPPORT 18
20 FC09-004870A BRACKET-FLY_CAM_COVER 1
21 FC18-902837 SEMUS NABE SCREW 24
22 FC09-006540A BRACKET-FLY_BOTTOM_COVER 1 FC09-004873A
23 FC09-004461A BRACKET-SIDE_ILL_SPACE 1
24 FC09-004459A BRACKET-DL2-REF_PLATE 1
25 AM06-003458A ASSY,PCB SMD-SIDE-ILL PCB CABLE ASS'Y 1
26 FC18-902704 SOCKET HEAD CAP SCREW 52
27 FC18-901308 DOWEL PIN 2
28 FC18-902725 SOCKET HEAD CAP SCREW 10
29 FC09-004453A BRACKET-MIRROR_SUPPORT 1
30 EP12-000074A MIRROR,OPTICS-FOLDING_MIRROR 1 EP12-000074A/ AM03-013678A
EP12-001009A MIRROR,OPTICS-FOLDING MIRROR 1 POLAR LENS OPTION
31 J7155197A MIRROR_PLATE 2
Page
+$1:+$
126
DECAN
L2
Head (4/5)
32 FC30-002681A BEARING PLATE 6 J7055659A
33 FC18-902710 SOCKET HEAD CAP SCREW 44
34 MC05-900075 TIMING_BELT 3
35 FC09-004893A BRACKET-SWING_SNS_DOG 1
AM03-015419A CABLE ASSY-FLY CAMERA FG 1
AM03-015420B CABLE ASSY-FLY CAM PWR SYNC EXT 1 AM03-015420A
AM03-015422B CABLE ASSY-FLY CAM SIG EXT 1 AM03-015422A
AM06-003458A ASSY,PCB SMD-SIDE-ILL PCB CABLE ASS'Y 1
NO. PART NO. PART NAME Q'TY Old No. Reference
