Page +$1:+$ 20 DECAN L2 Stage CAM Ass’y
Page
+$1:+$
19
DECAN
L2
Feeder Base
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-014087A FEEDER BASE STAGE TOTAL 1 AM03-012402A
1 FC09-001200C TOP_PLATE_BACK_HOLE 1 FC09-001200A
2 FC09-000901C TOP-PLATE-S 1 FC09-000901A
3 FC07-000033B VERTICAL LOCATOR 1
4 J70570262C CAP_TOP_PLATE 5
5 AM03-014393A ASSY,COVER_FEEDER_T_SLOT_SUB 2 FC15-002403A STANDARD
5-1 FC15-002954A COVER_NOCE_STAGE_C 1
5-2 FC07-001595A BLOCK_GUIDE_B_NONE_STAGE 17
6 HP06-900027 FITTING 2 HP06-900047
7 FC05-000469A FEEDER_BASE_STAGE 1
8 J7057213A SIDE CABLE COVER-FB 2
9 FC18-901830 BUTTON HEAD CAP SCREW 6
10 FC14-000876 COUPLER 60 HP06-900169
11 J90600351B FEEDERBASE_LEFT_COVER_PCB_ND 1
12 AM03-000694A ASSY,BOARD-FBLN 1
13 J90600352B FEEDERBASE_RIGHT_COVER_PCB_ND 1
14 AM03-000693A ASSY,BOARD-FBRN 1
15 AM03-014391A ASSY,COVER-RETROFIT_A_TYPE 1 1 STAGE CAMERA OPTION
15-1 FC15-002834A COVER_NONE_STAGE_SUB 1
15-2 FC15-002832A COVER_NONE_STAGE 1
15-3 FC07-001594A BLOCK_GUIDE_B_NONE_STAGE 9
16 AM03-014392A ASSY,COVER-RETROFIT_B_TYPE 1 NO STAGE CAMERA OPTION
16-1 FC15-002833A COVER_NONE_STAGE-2 1
17 AM03-025263A ASSY,ETC,IMS-BF ADAPTOR ASSY 1 Bowl Feeder Adaptor (Adapter)
Page
+$1:+$
20
DECAN
L2

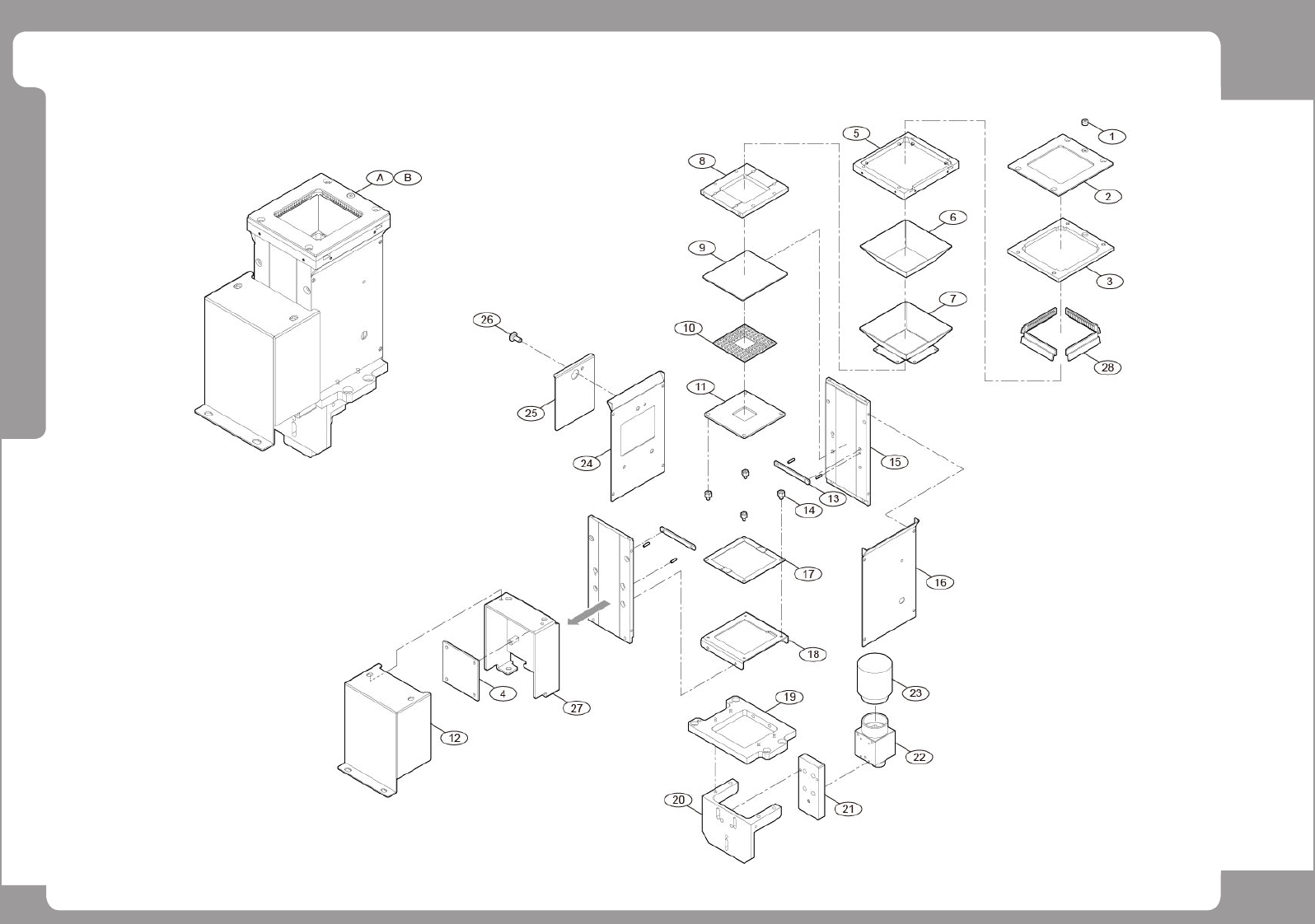

Stage CAM Ass’y
Page
+$1:+$
21
DECAN
L2
Stage CAM Ass’y
NO. PART NO. PART NAME Q'TY Old No. Reference
A AM03-031495A ASSY,OPTICS-DECAN_FOV35_MEGA_STAGE 1 F35 HEXA Type / #1303 ~
AM03-015218B ASSY,OPTICS-SM482_STAGE_MEGA_35_ASSY 1 AM03-015218A F35 MEGA Type / #1 ~ 1302
B AM03-031493A ASSY,OPTICS-DECAN_FOV45_MEGA_STAGE 1 F45 HEXA Type / #1303 ~
AM03-015217B ASSY,OPTICS-SM482P_STAGE_MEGA_45_ASSY 1 AM03-015217A F45 MEGA Type / #1 ~ 1302
1 J7153373A FIDUCIAL_DISK 1
2 FC15-001295B LIGHT_COVER 1
3 FC09-002220A LIGHT_G_1 1
4 J91741051A SSA_VIS_FIX_IF_BOARD LEDIF02 1
5 J90600075B STAGE SIDE LIGHT BOARD ASSY 1
6 EP15-000010A REFLECT_SHEET 4
7 FC09-002223A LIGHT GUIDE 4
8 FC15-001294A PROFILE_2 1
9 EP12-000044A GLASS 1
10 J90600073C LED98-9 BOARD ASSY STAGE INNER 1
11 PT02-000048A DIFFUSER 1
12 FC15-002395B COVER-STAGE_CAM_BOARD 1 FC15-002395A
13 FC09-002218A GLASS_STOP 2
14 FC29-900610 HEX SUPPORT 4
15 FC15-001293A PROFILE_1 1
16 FC15-001291A COVER_2 1
17 FC09-002222A PCB_BASE_2 1
18 FC09-002221A PCB_BASE_1 1
19 FC05-000225A BASE 1
20 J7159120D CAMERA_STAND 1
21 JS759001A CAMERA_HOLDER 1
22 J90600074B STAGE OUTER LIGHT BOARD ASSY 4
23 FC09-003893A BKT_S_CAM_BOARD 1
24 FC15-00 1290A COVER_1 1
25 FC15-001292A COVER_COMP 1
26 J7066008D LINK_SHAFT_1 1
