Page +$1:+$ 351 DECAN L2 Motor IF Board (9/18) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-005703 A CABLE ASSY -HD_V AC-BLOW_H1-H8 1 2 AM03-026275 A CABLE AS SY -FLA T 1 1 AM03-010515C/ …
Page
+$1:+$
350
DECAN
L2

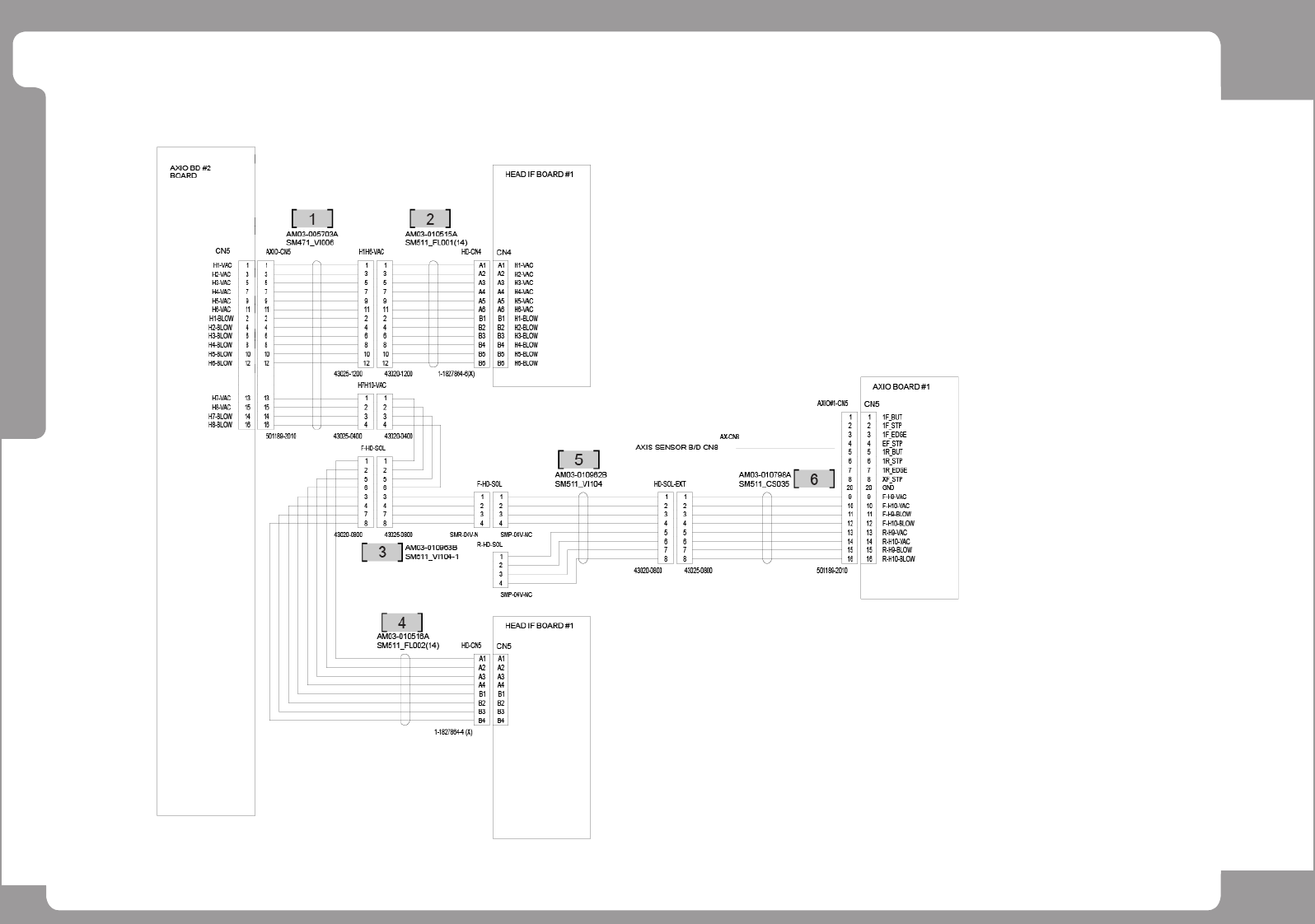

Motor IF Board (9/18)
Page
+$1:+$
351
DECAN
L2
Motor IF Board (9/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005703A CABLE ASSY-HD_VAC-BLOW_H1-H8 1
2 AM03-026275A CABLE ASSY-FLAT 1 1 AM03-010515C/ AM03-010515D
3 AM03-010963B CABLE ASSY-HD1_VAC-BLOW_CTRL 1
4 AM03-026274A CABLE ASSY-FLAT 2 1 AM03-010516C
5 AM03-010962B CABLE ASSY-HD_VAC-BLOW_CTRL 1
6 AM03-010798A CABLE ASSY-AXIS_SNS_BD_AXIO#1 1
Page
+$1:+$
352
DECAN
L2

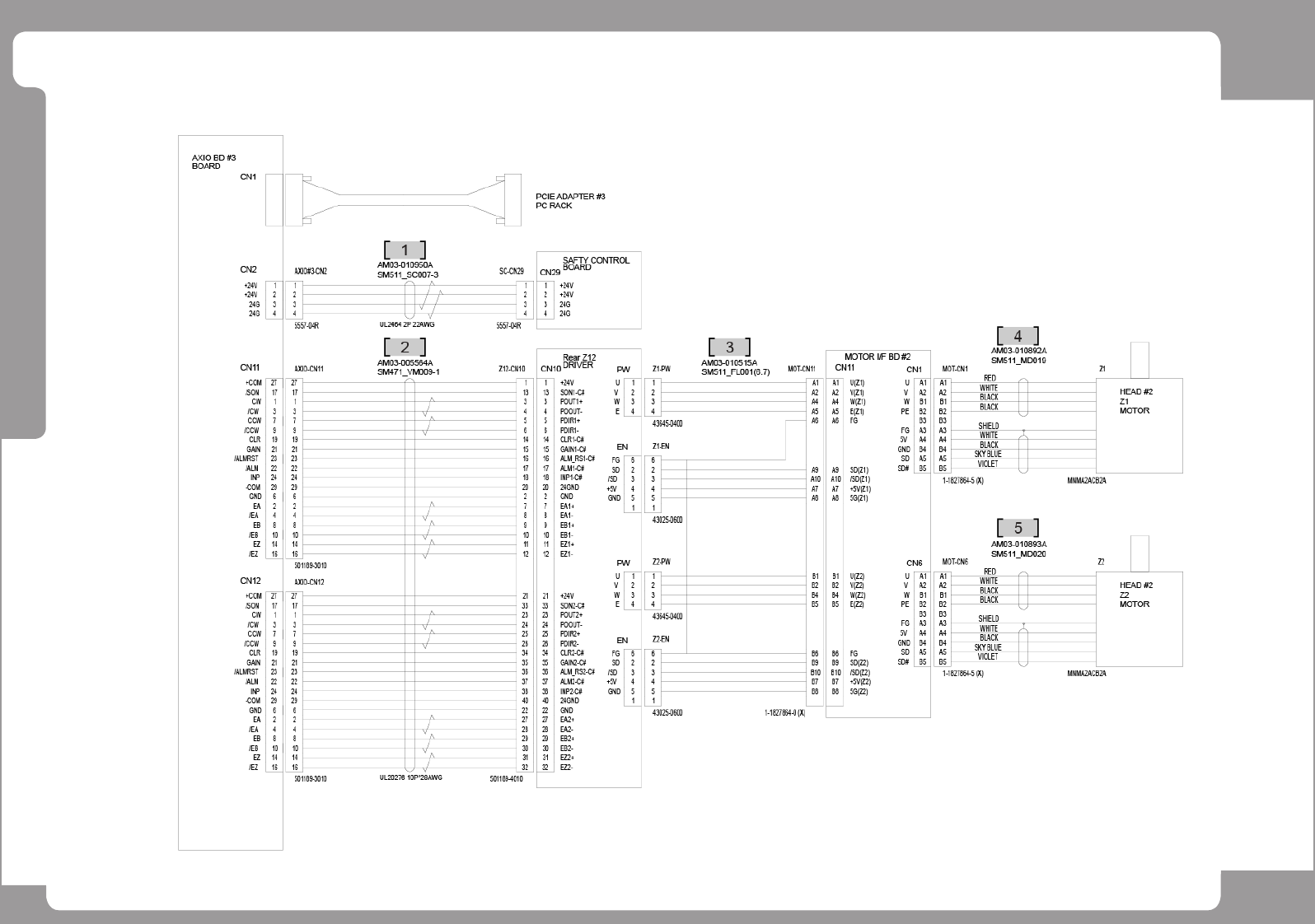

Motor IF Board (10/18)
