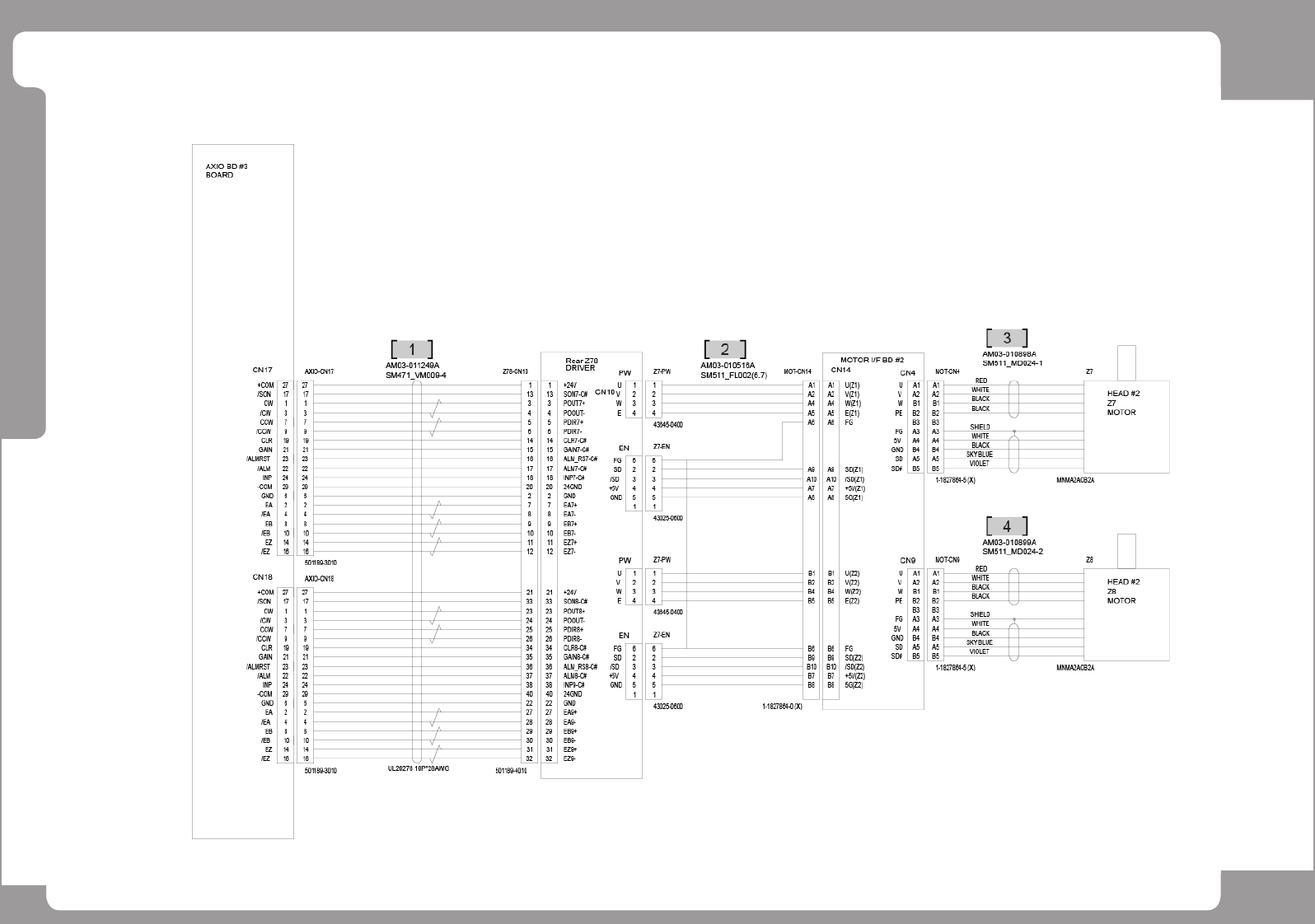

Page +$1:+$ 358 DECAN L2 Motor IF Board (13/18)
Page
+$1:+$
357
DECAN
L2
Motor IF Board (12/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-011248A CABLE ASSY-Z56_DRV_COMMAND 1
2 AM03-026275A CABLE ASSY-FLAT 1 1 AM03-010515C/ AM03-010515D
3 AM03-011868A CABLE ASSY-Z5_MOTOR 1
4 AM03-011868A CABLE ASSY-Z6_MOTOR 1
Page
+$1:+$
358
DECAN
L2
Motor IF Board (13/18)
Page
+$1:+$
359
DECAN
L2
Motor IF Board (13/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-011249A CABLE ASSY-Z78_DRV_COMMAND 1
2 AM03-026274A CABLE ASSY-FLAT 2 1 AM03-010516C
3 AM03-011868A CABLE ASSY-Z7_MOTOR 1
4 AM03-011868A CABLE ASSY-Z8_MOTOR 1
