Page +$1:+$ 363 DECAN L2 Motor IF Board (15/18) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-010982A C ABLE ASSY -R1_R2_R3_DRV_COMMAND 5 2 AM03-026275 A CABLE AS SY -FLA T 1 1 AM03-010515…
Page
+$1:+$
362
DECAN
L2

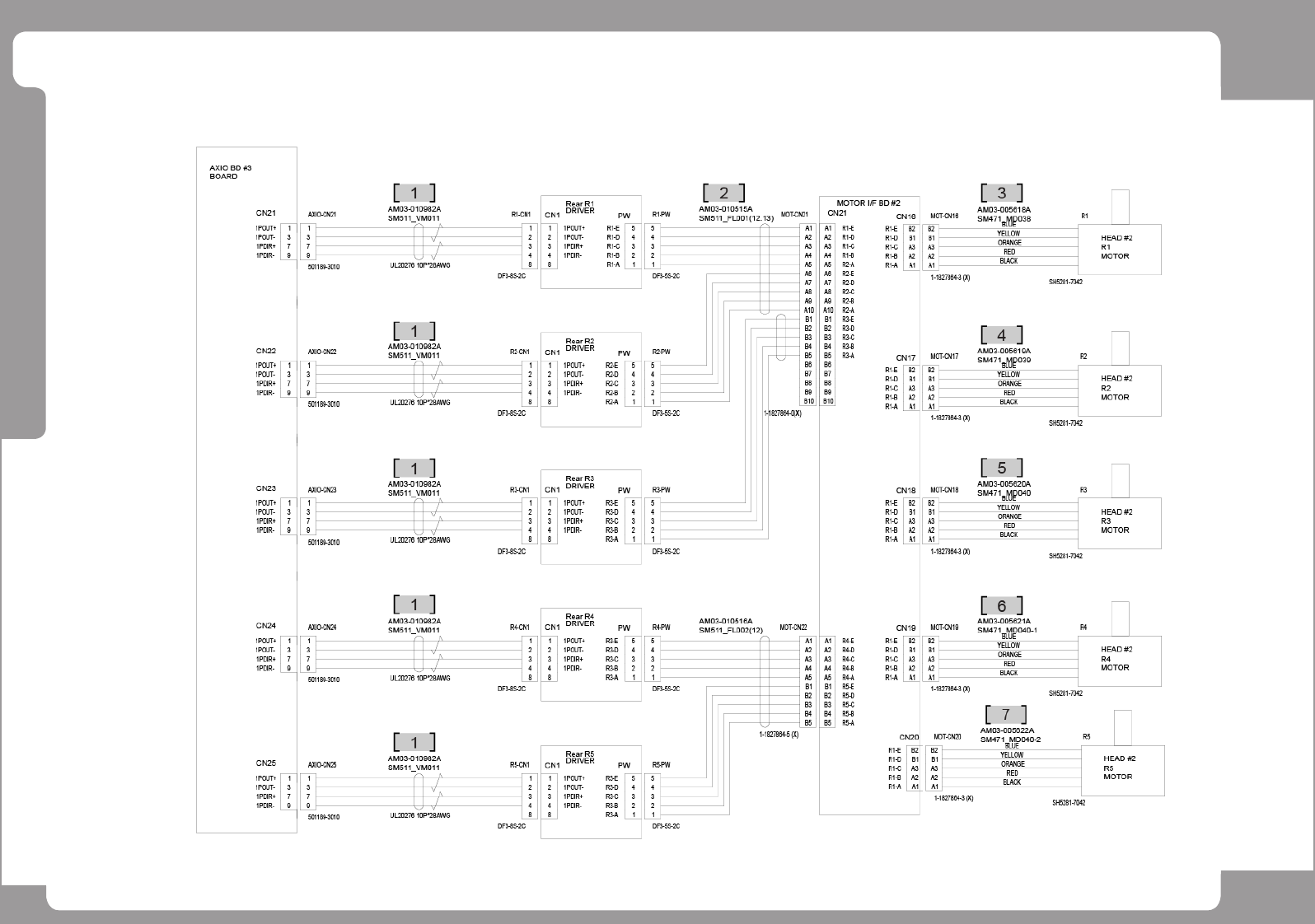

Motor IF Board (15/18)
Page
+$1:+$
363
DECAN
L2
Motor IF Board (15/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010982A CABLE ASSY-R1_R2_R3_DRV_COMMAND 5
2 AM03-026275A CABLE ASSY-FLAT 1 1 AM03-010515C/ AM03-010515D
3 AM03-008031A CABLE ASSY-R1_MOTOR 1
4 AM03-008031A CABLE ASSY-R2_MOTOR 1
5 AM03-008031A CABLE ASSY-R3_MOTOR 1
6 AM03-008031A CABLE ASSY-R4_MOTOR 1
7 AM03-008031A CABLE ASSY-R5_MOTOR 1
Page
+$1:+$
364
DECAN
L2

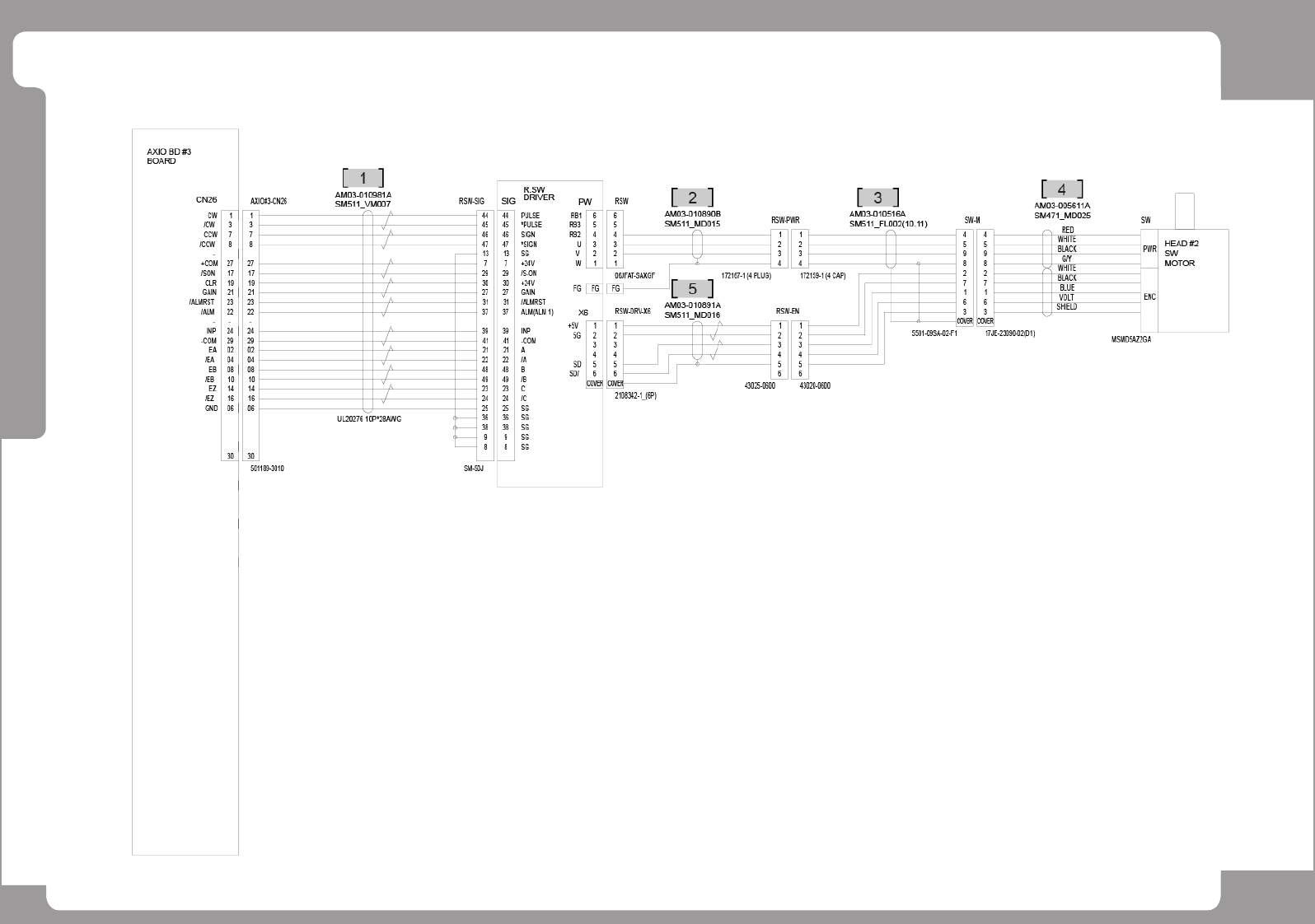

Motor IF Board (16/18)
