Page +$1:+$ 50 DECAN L2 Shuttle Conveyor (8/10)
Page
+$1:+$
49
DECAN
L2
Page
+$1:+$
50
DECAN
L2
Shuttle Conveyor (8/10)
Page
+$1:+$
51
DECAN
L2
Shuttle Conveyor (8/10)

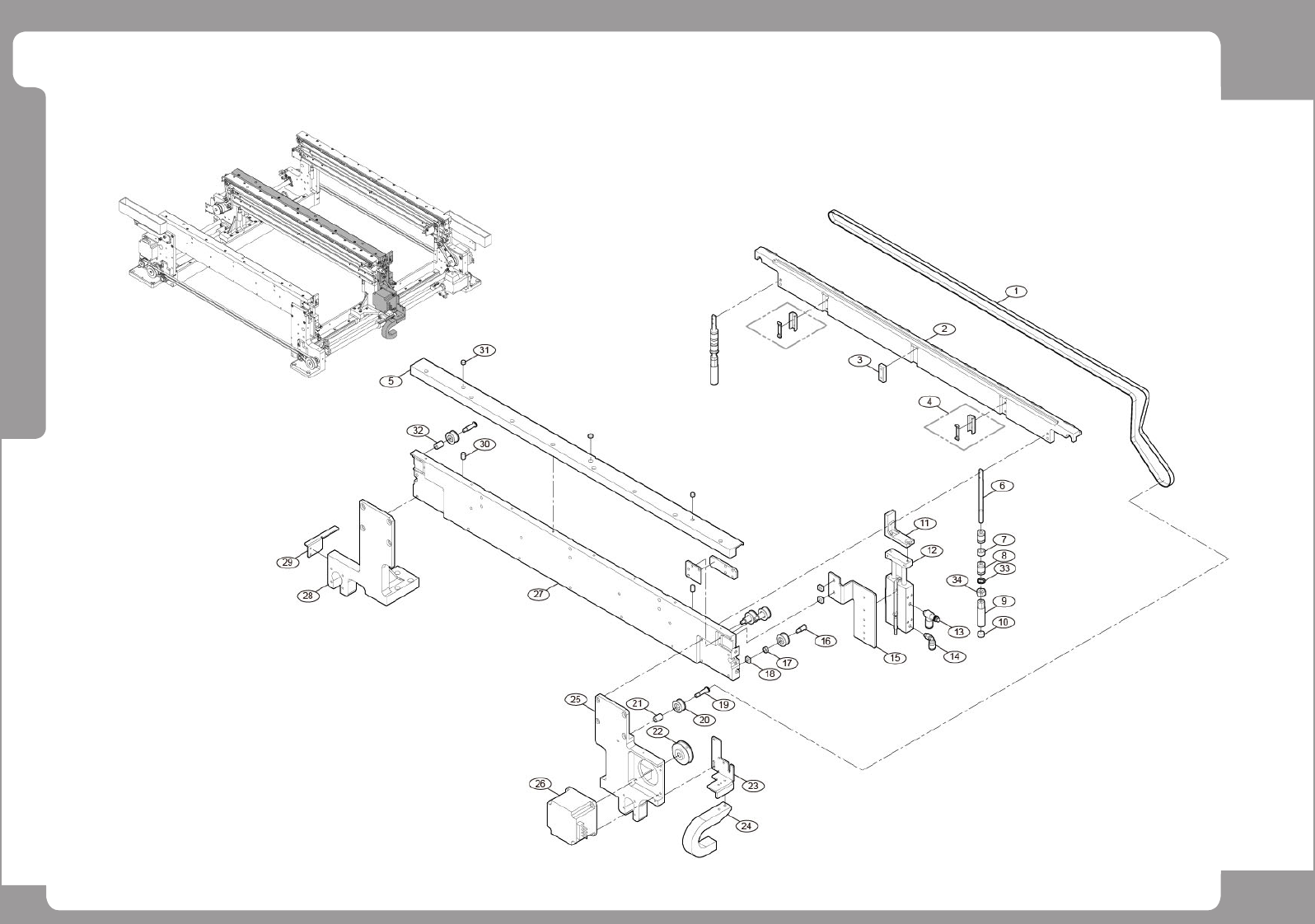

NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 MC05-900057 BELT_WORK 1
2 J71531045B CLAMP_FRONT_FRAME 1
3 J7153036A SLIDE GUIDE 1
4 MC13-900013 LM SLIDE 2
5 J70531017B PCB_GUIDE_FC 1
6 J7153034A CLAMP SHAFT 2
7 FC18-001480A BUSH SPACER 2 J7153033A
8 MC06-900006 BALL_BUSH LMU5 4
9 FC01-000022A ADJUST SHAFT 2 J7153010B
10 FC29-004426A STOPPER 2 J7253008A
11 FC30-001377A PLATE-STOPPER_TOP 1
12 HP03-000094 CYLINDER-CON_STOPPER 1
13 HP14-900083 THROTTLE VALVE(ELBOW) 1
14 HP06-900027 FITTING 1 HP06-900047
15 FC09-002822C STOPPER_WORK_REAR 1 FC09-002822A/ FC09-002822B
16 MC19-001112A IDLER SHAFT-S 1 J2101818
17 FC18-001478A IDLER SPACER-S 1 J7053047A
18 J7053184A SQUARE NUT M4 3
19 J70531021A IDLER_SHAFT_M 4
20 J72531001A IDLER_2 5
21 J70531020A IDLER_SPACER_11 4
22 MC19-001136A PULLEY_B_M 1 J71531009A
23 J70531103A CV_SUPPORT_M_RAIL 1
24 EP03-000170 CABLEVEYOR 1 EP03-900049
25 J70531012C SUPPORT_MOVE_RAIL_II 1
26 AM03-011142B CABLE ASSY-BELT MOTOR(BW2-1) 1
27 FC39-001335A WORK_FRONT_FRAME 1
28 J70531011A SUPPORT_MOVE_RAIL_TR 1
29 FC29-004248A WORK_WIDTH_SENSOR_DOG 1 J70531066A
30 FC29-004427A STOPPER 2 2 J7253009B
31 J7153373A FIDUCIAL_DISK 3
