Page +$1:+$ 63 DECAN L2 Full Dual Conveyor (2/12) - Entry NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 FC05-000339A BASE-SHUTTLE 1 2 FC18-903190 TIE_MOUNT 2 3 MC13-900069 LM_GUIDE_SHUTTLE 2 4 …
Page
+$1:+$
62
DECAN
L2
Full Dual Conveyor (2/12) - Entry
Page
+$1:+$
63
DECAN
L2
Full Dual Conveyor (2/12) - Entry
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC05-000339A BASE-SHUTTLE 1
2 FC18-903190 TIE_MOUNT 2
3 MC13-900069 LM_GUIDE_SHUTTLE 2
4 EP03-000142 CABLEVEYOR 2
5 HP06-900093 STRAIGHT FITTING 4
6 J70531101A COVER_LEFT 1
7 HP14-000836 SOLENOID 1
8 FC15-002453A TOP_COVER_CV 1
9 FC09-003345B BRACKET-CONNECTOR_S 1 FC09-003345A
10 J70531102B COVER_RIGHT_PLATE 1
11 FC30-001653A PLATE-CONVEYOR_UNDER 1
12 FC29-900611 PCB_SUPPORT 4
13 J91741021A CONVEYOR_SENSOR_IF_BOARD 1
Page
+$1:+$
64
DECAN
L2

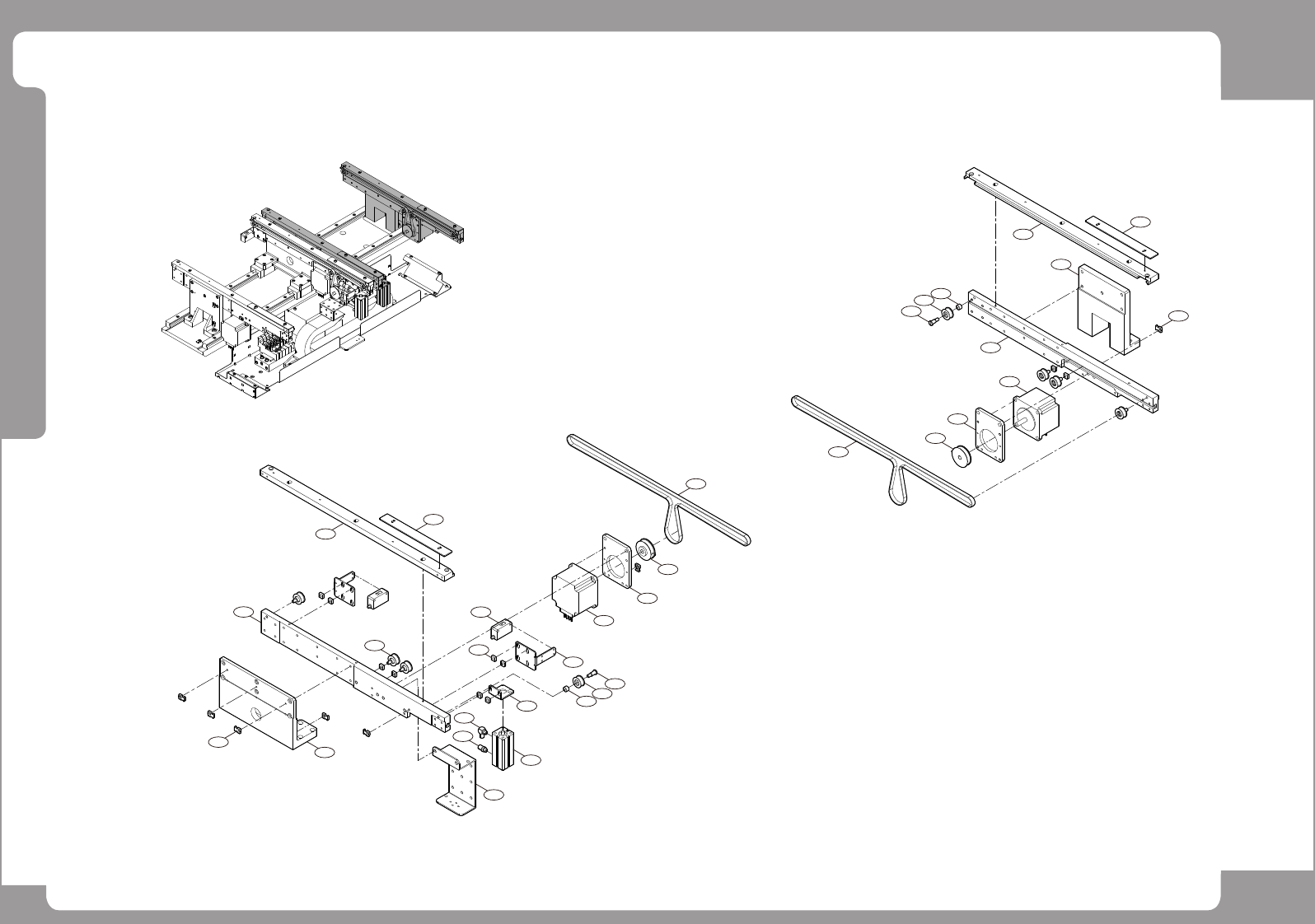

Full Dual Conveyor (3/12) - Entry
18
9
23
10
14
13
16
1
19
21
17
1
17
5
6
7
22
2
3
4
16
19
4
3
2
8
7
6
5
11
15
12
20
