Page +$1:+$ 69 DECAN L2 Full Dual Conveyor (5/12) - Exit NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 FC05-000339A BASE-SHUTTLE 1 2 FC18-903190 TIE_MOUNT 2 3 MC13-900069 LM_GUIDE_SHUTTLE 2 4 E…
Page
+$1:+$
68
DECAN
L2
Full Dual Conveyor (5/12) - Exit
Page
+$1:+$
69
DECAN
L2
Full Dual Conveyor (5/12) - Exit
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC05-000339A BASE-SHUTTLE 1
2 FC18-903190 TIE_MOUNT 2
3 MC13-900069 LM_GUIDE_SHUTTLE 2
4 EP03-000142 CABLEVEYOR 2
5 J70531102B COVER_RIGHT_PLATE 1
6 FC09-003345B BRACKET-CONNECTOR_S 1 FC09-003345A
7 J91741021A CONVEYOR_SENSOR_IF_BOARD 1
8 FC15-002453A TOP_COVER_CV 1 J70531105A
9 HP14-000836 SOLENOID 1
10 J70531101A COVER_LEFT 1
11 FC30-001653A PLATE-CONVEYOR_UNDER 1
12 FC29-900611 PCB_SUPPORT 4
Page
+$1:+$
70
DECAN
L2

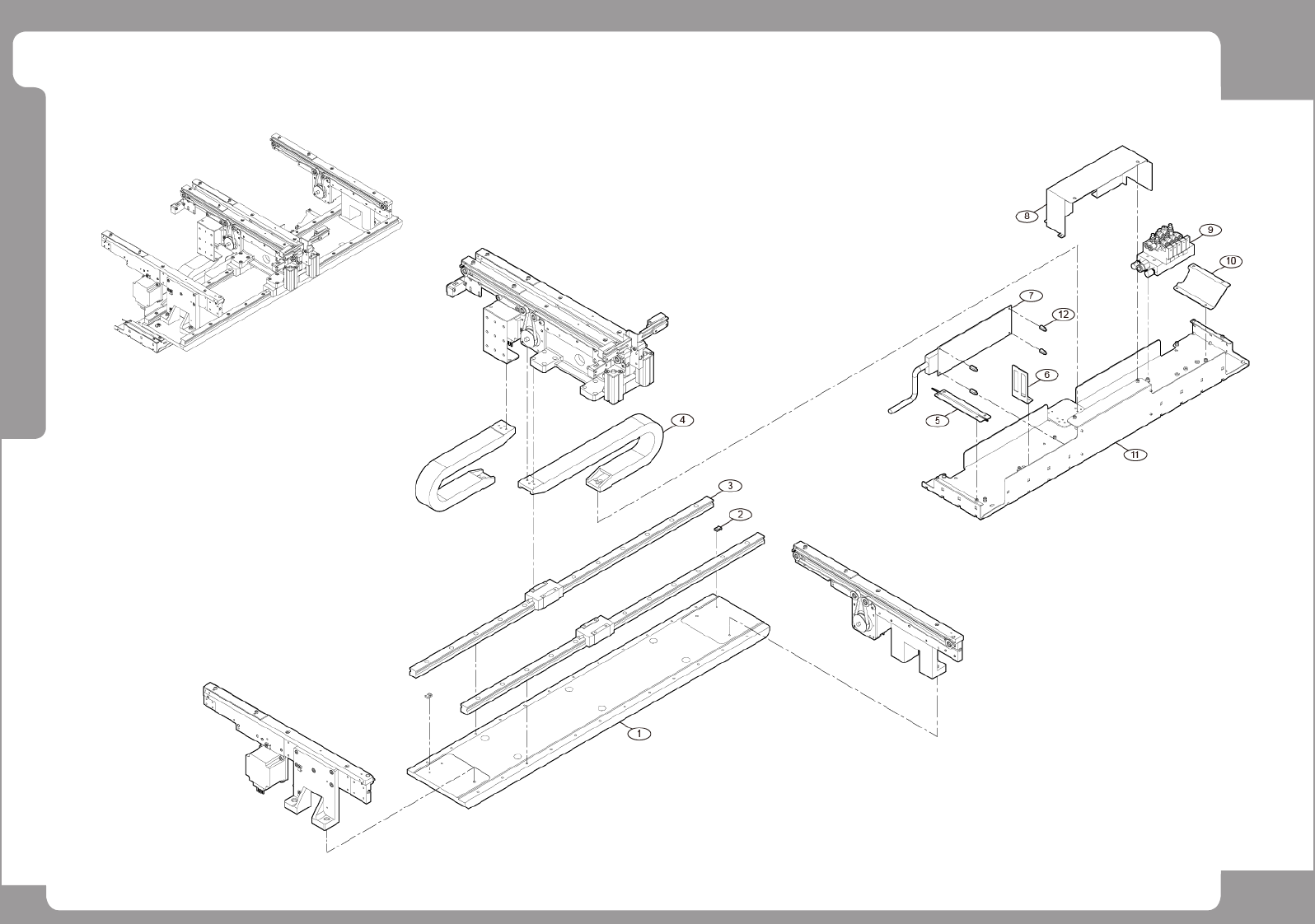

Full Dual Conveyor (6/12) - Exit
2
3
4
5
6
7
18
25
13
3
14
1
16
17
19
16
17
9
23
24
1
19
22
21
5
8
10
11
12
15
20
6
7
2
4
