Page +$1:+$ 95 DECAN L2 Single Conveyor (2/3) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 FC18-902741 SOCKET HEAD CAP SCREW M4*1 0 (NI/ZN) 46 2 FC18-903490 SPRING W ASHER [M4 (BL/Z N)] 79 3 J…
Page
+$1:+$
94
DECAN
L2

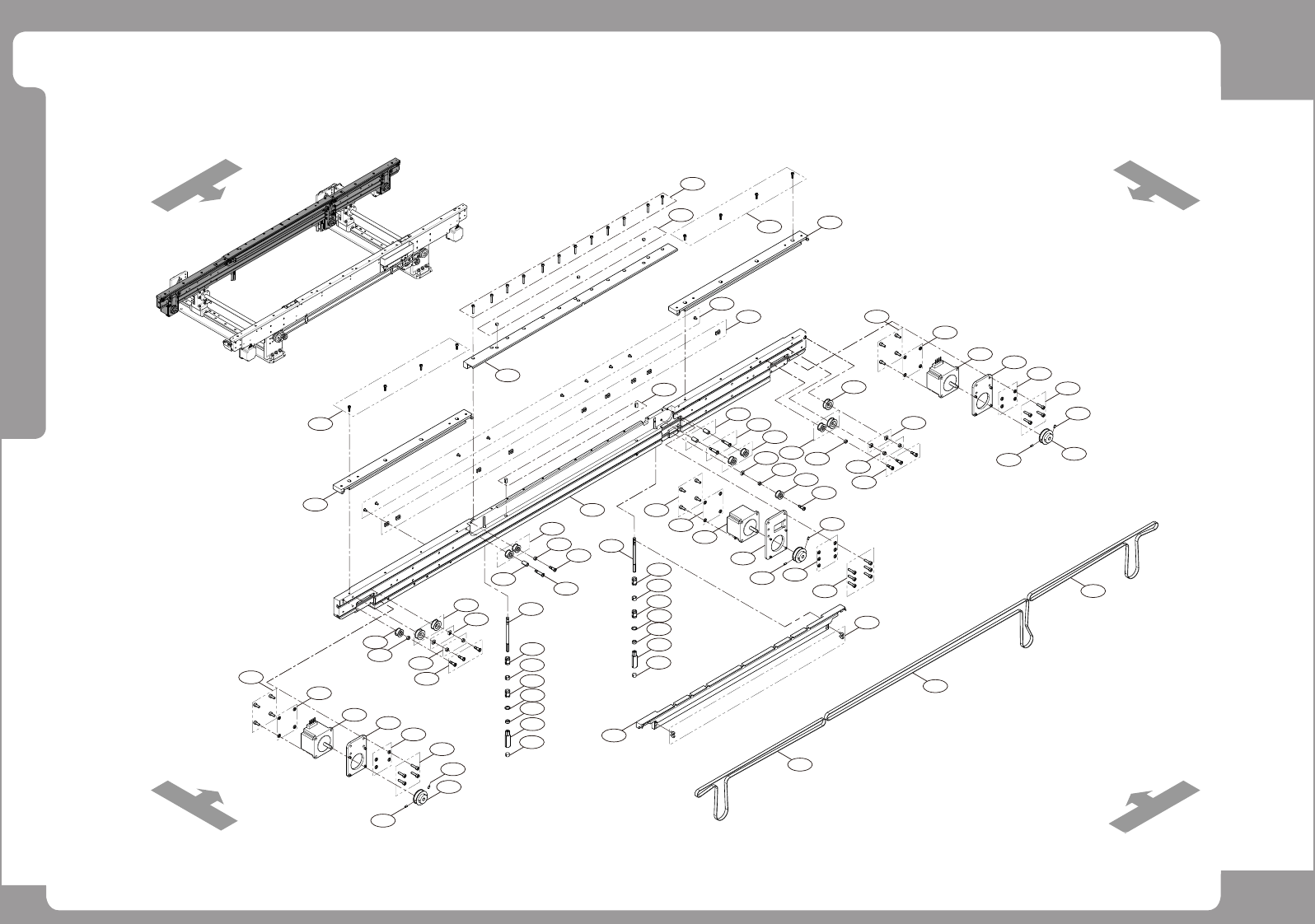

Single Conveyor (2/3)
Right side
Left side
Rear side
Front Side
35
34
33
35
32
32
8
8
9
7
2
6
3
2
1
00
11
10
11
12
13
8
8
7
2
6
5
2
1
15
11
12
11
10
13
10
14
11
16
15
20
36
17
18
17
19
21
22
23
17
18
17
19
21
22
23
26
27
26
9
25
24
14
16
10
1
2
20
4
28
8
8
2
7
13
11
10
15
00
29
30
31
Page
+$1:+$
95
DECAN
L2
Single Conveyor (2/3)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC18-902741 SOCKET HEAD CAP SCREW M4*10 (NI/ZN) 46
2 FC18-903490 SPRING WASHER [M4 (BL/ZN)] 79
3 J90831430B CONV_BELT3_STEP_MOTOR_ASSY 1
4 J90831432B WORK_BELT1_STEP_MOTOR_ASSY 1
5 J90831439B CONV_BELT1_STEP_MOTOR_ASSY 1
6 J70531106A BRACKET_BELT_MOTOR_S 4
7 FC18-901866 SOCKET HEAD CAP SCREW 26
8 FC18-901955 SOCKET SET SCREW M3*6 (BL/Zn) 12
9 J7153111A TEP MOTOR PULLEY 6
10 J7253007A IDLER 2 16
11 FC18-001478A SPACER-IDLER-S_CONV 18
12 J7253006A IDLER 1 8
13 J7053184A SQUARE NUT M4 25
14 J7053763A IDLER SPACER-M 3
15 J7053009A IDLER-SHAFT-S2 18
16 J7053770A IDLER SHAFT-M 6
17 MC06-900006 BALL_BUSH 8
18 FC18-001480A SPACER-BUSH_CONVEYOR 4
19 FC18-901355 C-RING DIA11(HOLE) 4
20 J7153034A CLAMP SHAFT 4
21 FC18-900900 HEX NUT 5
22 FC01-000022A ADJUSTER-SHAFT_CONV 4
23 FC29-004426A STOPPER-CLAMP_SHAFT_STOPPER 4
24 J71530400C CLAMP REAR FRAME 1
25 FC18-902719 SOCKET HEAD CAP SCREW M3*6 (NI/ZN) 14
26 MC05-000270 BELT 4
MC05-000279 BELT 4 SIDE TRAY OPTION
27 MC05-900070 BELT_410_R 1
28 J70531085A BRACKET_BELT_MOTOR_M 1
29 FC29-004427A STOPPER-CONV_DOWN_STOPPER 4
30 FC18-900870 LOW PROFILE MOUNTS 12
Page
+$1:+$
96
DECAN
L2
Single Conveyor (2/3)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
31 FC18-901930 FLAT HEAD CAP SCREW M3*6 (BL/Zn) 12
32 FC29-003841A GUIDE-PCB_1430 4
FC29-004732A GUIDE-PCB_F_EX_1530 4 SIDE TRAY OPTION
33 FC18-902732 SOCKET HEAD CAP SCREW M3*18 (NI/ZN) 22
34 J7153373A FIDUCIAL DISK 4
35 FC18-902725 SOCKET HEAD CAP SCREW M3*10 (NI/ZN) 12
36 FC29-004739A GUIDE-PCB_RC_FM 1
