3.1.4 Software Versions
3.1.4.1 Software Versions for 2x8 mm Tape Feeder Modules
Version 1.00
▪ First version released.
3.1.4.2 Software Versions for 8 - 88 mm Tape Feeder Modules
The feeder modules use different versions of the application software. The main differences are de-
scribed below.
Version 1.00
▪ First version released.
Version 1.06
▪ Extended data menu: Path length
▪ Extended data menu: Last error.
▪ Continuous tape feeding with tensioned foil is possible.
Version 1.14
▪ Improvements to troubleshooting.
▪ Barcodes can be scanned from any menu item
▪ Error text "FeedTimeout" replaced by "Feed Error".
Version 1.24
▪ Extended data menu: Splice sensor detection.
▪ Extended service menu: Manual foil stripping.
NOTICE
Older software versions can be upgraded to newer versions with no problems. However, you
should not downgrade an existing software version to an older version without good reason.
Overview of X Feeder Modules
Technical Data Software Versions
32 User Manual X Feeder Modules SIPLACE Family
3.2 Technical Data
X feeder module Item No. Width of the
feeder module
Conveyor
pitches
Max. overall height of the
tape material
8 mm X 00141270-xx
00141290-xx *
10.8 mm 1, 2, 4, 8 mm 1.6 mm paper
3.5 mm blister
2x8 mm X 00141269-xx
00141289-xx *
22.6 mm 1, 2, 4, 8 mm 1.6 mm paper
3.5 mm blister
12 mm X 00141271
00141291-xx *
22.6 mm 4 – 16 mm ** 6.5 mm blister
16 mm X 00141272-xx
00141292-xx *
34.4 mm 4 – 20 mm ** 25 mm blister
24 mm X 00141273-xx
00141293-xx *
34.4 mm 4 – 32 mm ** 25 mm blister
32 mm X 00141274-xx
00141294-xx *
42.6 mm 4 – 40 mm ** 25 mm blister
44 mm X 00141275-xx
00141295-xx *
58.0 mm 4 – 52 mm ** 25 mm blister
56 mm X 00141276-xx
00141296-xx *
69.8 mm 4 – 64 mm ** 25 mm blister
72 mm X 00141277-xx
00141297-xx *
81.6 mm 4 – 80 mm ** 25 mm blister
88 mm X 00141278-xx
00141298-xx *
105.2 mm 4 – 96 mm ** 25 mm blister
* Item no. for the feeder module with splice sensor ** Adjustable in 4 mm steps
Overview of X Feeder Modules
Software Versions Track Usage in the Component Table
User Manual X Feeder Modules SIPLACE Family 33
The following is valid for all feeder module types:
3.3 Track Usage in the Component Table

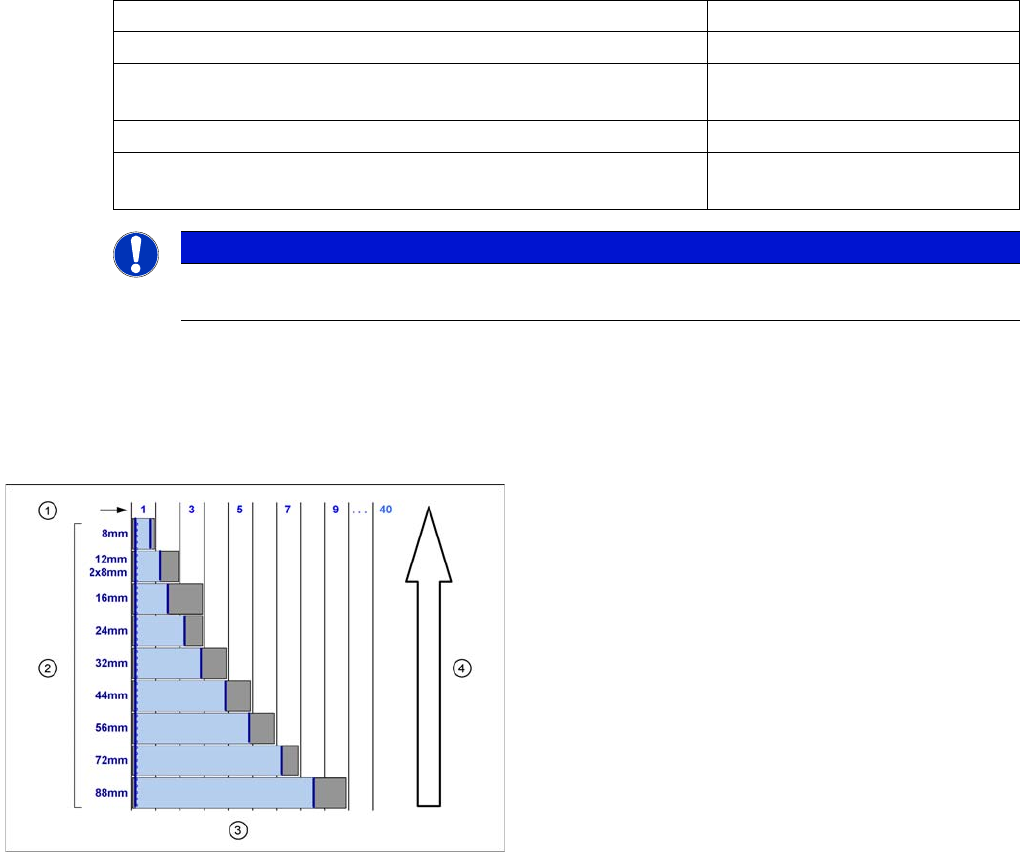

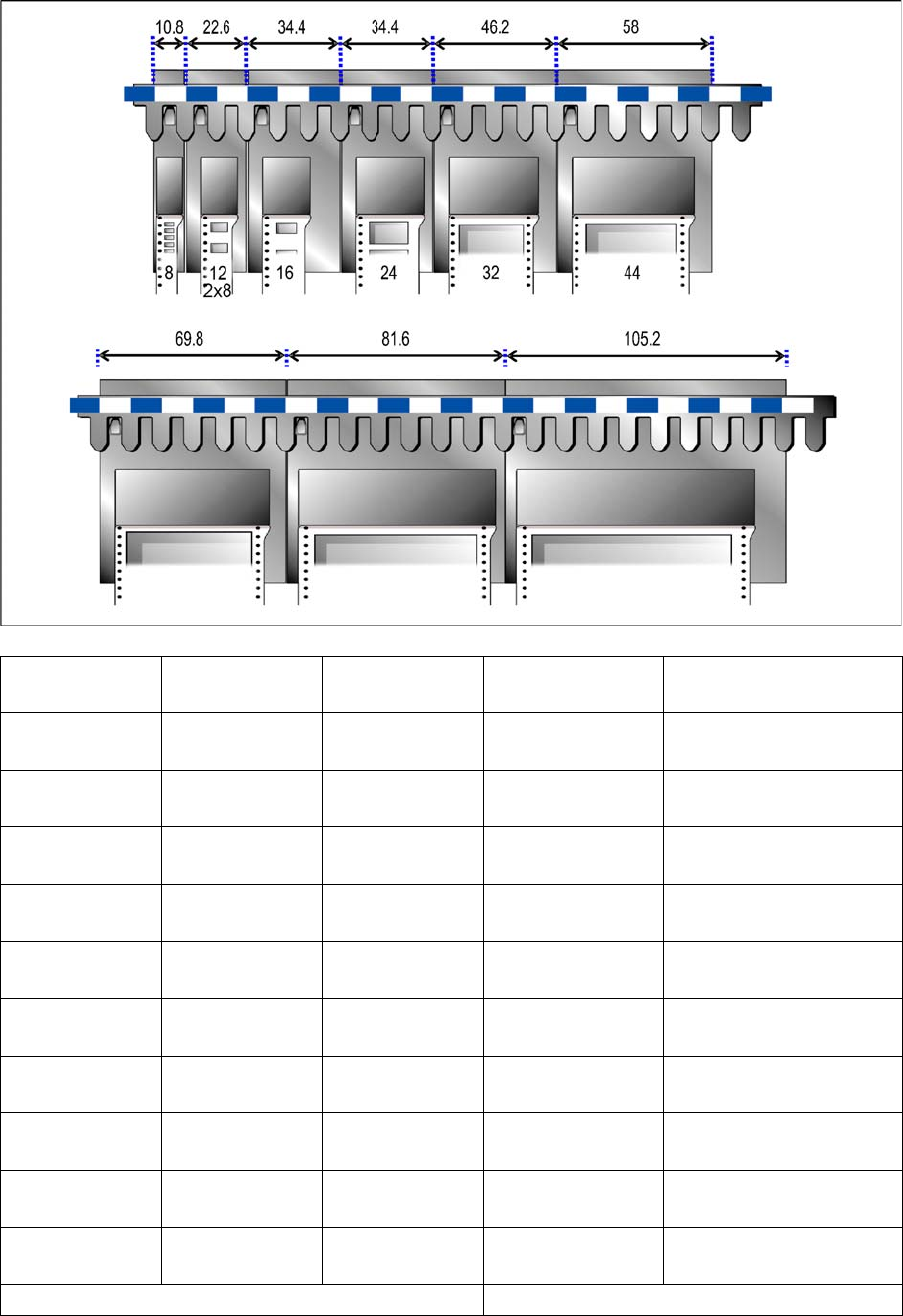

The following figure shows how many tracks the different X feeder modules are using in the component
table.
Length of the feeder modules: approx. 587 mm
Height of the feeder modules: approx. 200 mm
Max. height of edges protruding over the top edge of the tape pock-
et:
<= 3 mm
Changeover time for the component tape: < 45 s
Changeover time for the pre-set feeder module on the placement
machine:
< 15 s
NOTICE
Since the feeder modules do not have any raised flaps and are firmly anchored to the compo-
nent table, the risk of a head crash is minimized.
Legend
1. Track number
2. Tape widths
3. Width of the feeder modules
4. Direction of the feeder module in the component table
