Overview of X Feeder Modules Overview of Types 32 mm X 40 User Manual X Feeder Modules SIPLACE Family 3.5.6 32 mm X Tape feeder modul e 32 mm X Item no.: 00141274-xx Item no. for the feeder mo dule with splice sensor: 00…
Overview of X Feeder Modules
24 mm X Overview of Types
User Manual X Feeder Modules SIPLACE Family 39

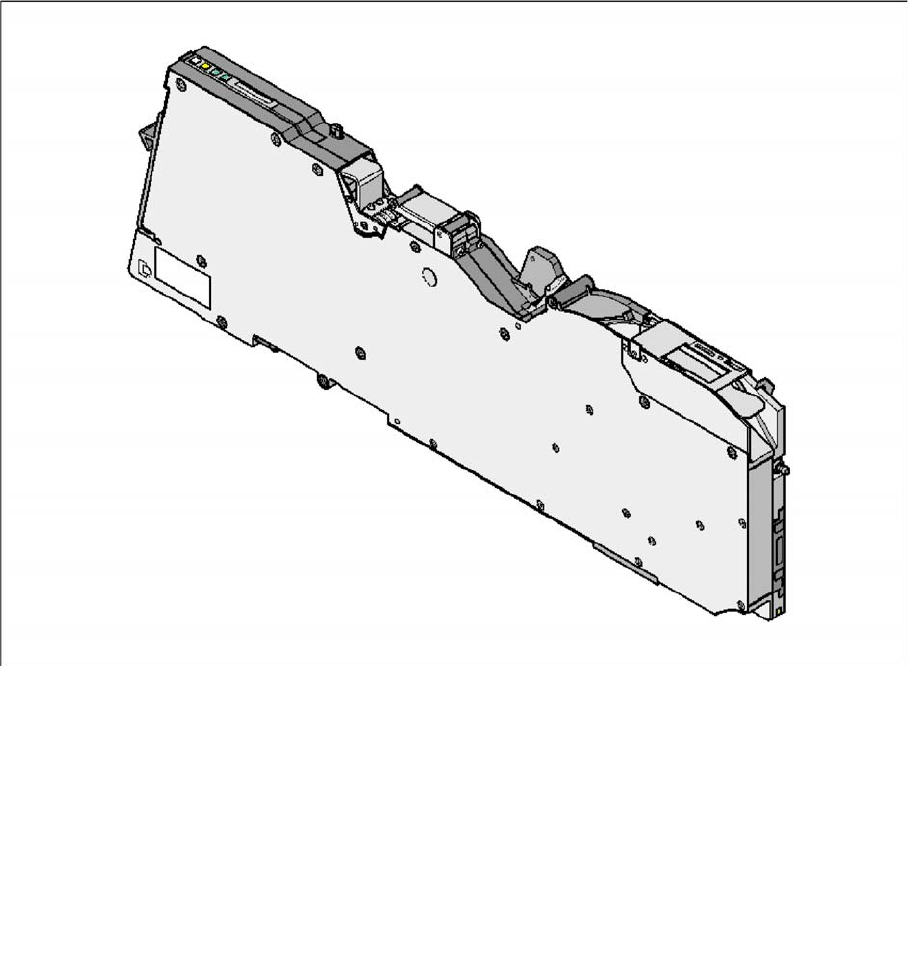

3.5.5 24 mm X
Tape feeder module 24 mm X
Item no.: 00141273-xx
Item no. for the feeder module with splice sensor: 00141293-xx
Width: 34.4 mm
Used locations at the component table: 3
Conveyor pitch: 4 - 32 mm adjustable in 4 mm steps
Changeover time for the component tape: < 45 s
Changeover time for the offline setup feeder mod-
ule on the machine:
< 15 s
Overview of X Feeder Modules
Overview of Types 32 mm X
40 User Manual X Feeder Modules SIPLACE Family

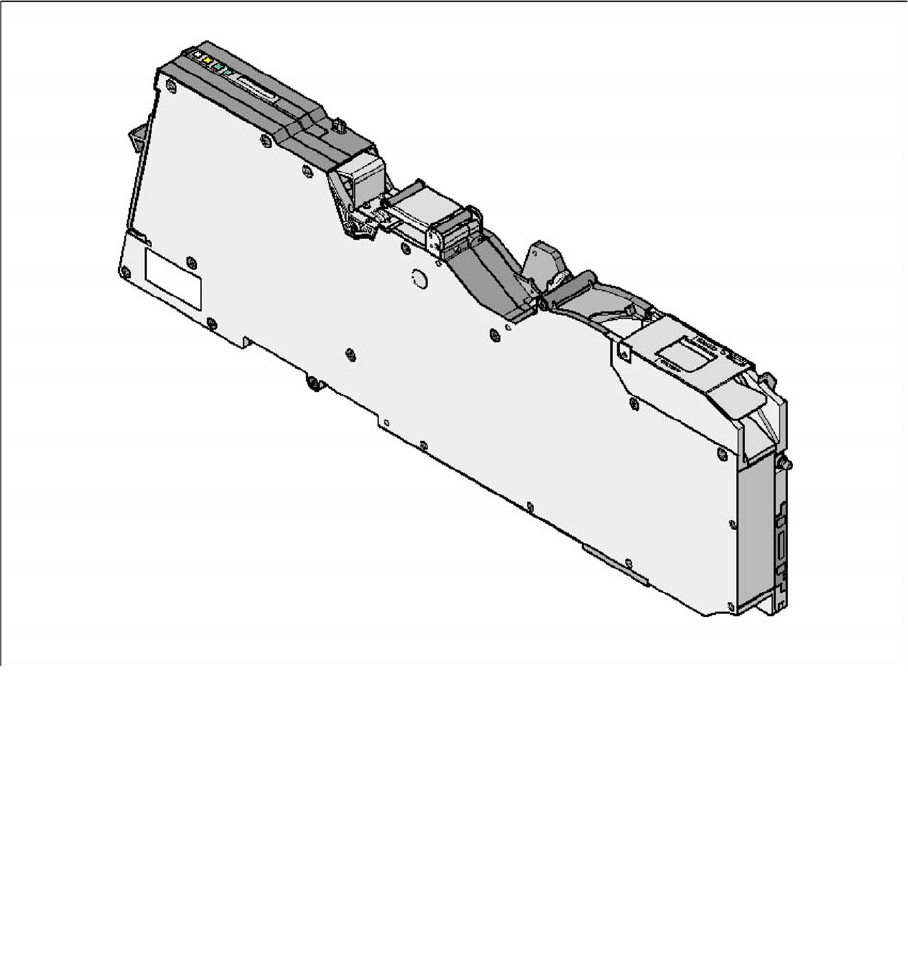

3.5.6 32 mm X
Tape feeder module 32 mm X
Item no.: 00141274-xx
Item no. for the feeder module with splice sensor: 00141294-xx
Width: 42.6 mm
Used locations at the component table: 4
Conveyor pitch: 4 - 40 mm adjustable in 4 mm steps
Changeover time for the component tape: < 45 s
Changeover time for the offline setup feeder mod-
ule on the machine:
< 15 s
Overview of X Feeder Modules
44 mm X Overview of Types
User Manual X Feeder Modules SIPLACE Family 41

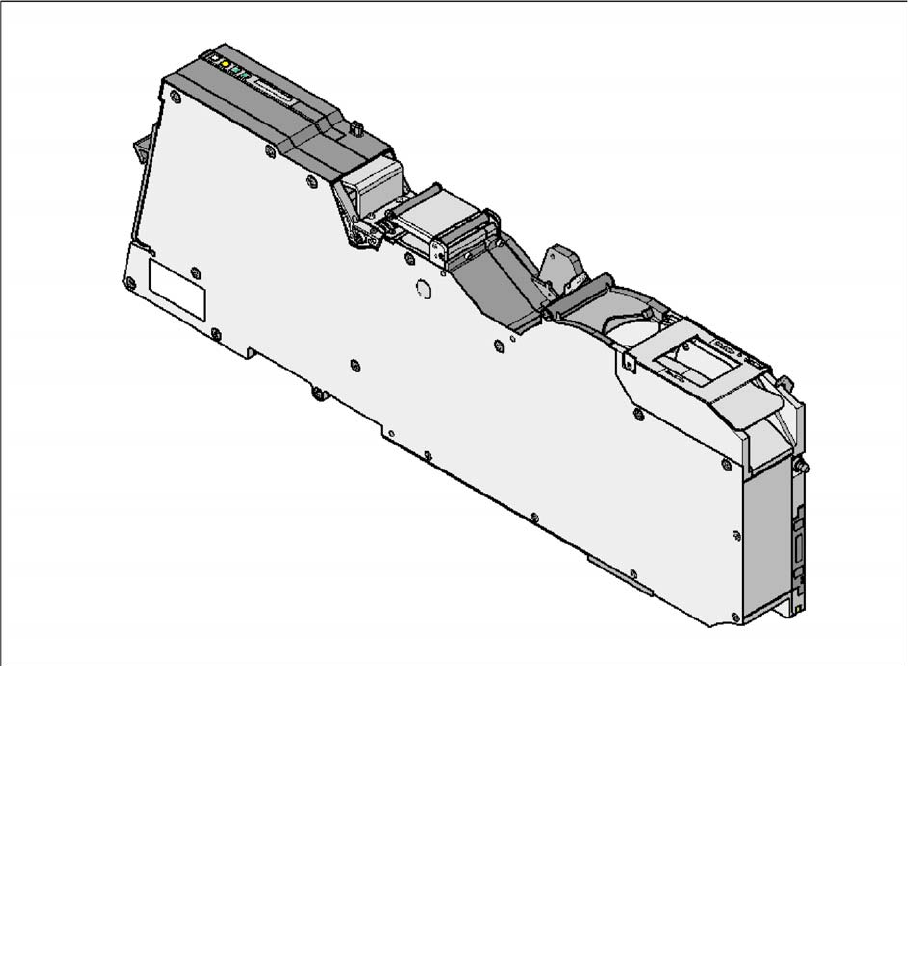

3.5.7 44 mm X
Tape feeder module 44 mm X
Item no.: 00141275-xx
Item no. for the feeder module with splice sensor: 00141295-xx
Width: 58.0 mm
Used locations at the component table: 5
Conveyor pitch: 4 - 52 mm adjustable in 4 mm steps
Changeover time for the component tape: < 45 s
Changeover time for the offline setup feeder mod-
ule on the machine:
< 15 s
