Overview of X Feeder Modules 72 mm X Overview of Types User Manual X Feeder M odules SIPLACE Family 43 3.5.9 72 mm X Tape feeder modul e 72 mm X Item no. for the feeder mo dule with splice sensor: 00141297-xx Width: 81.6…
Overview of X Feeder Modules
Overview of Types 56 mm X
42 User Manual X Feeder Modules SIPLACE Family
3.5.8 56 mm X
Tape feeder module 56 mm X
Item no.: 00141276-xx
Item no. for the feeder module with splice sensor: 00141296-xx
Width: 69.8 mm
Used locations at the component table: 6
Conveyor pitch: 4 - 64 mm adjustable in 4 mm steps
Changeover time for the component tape: < 45 s
Changeover time for the offline setup feeder mod-
ule on the machine:
< 15 s
Overview of X Feeder Modules
72 mm X Overview of Types
User Manual X Feeder Modules SIPLACE Family 43
3.5.9 72 mm X

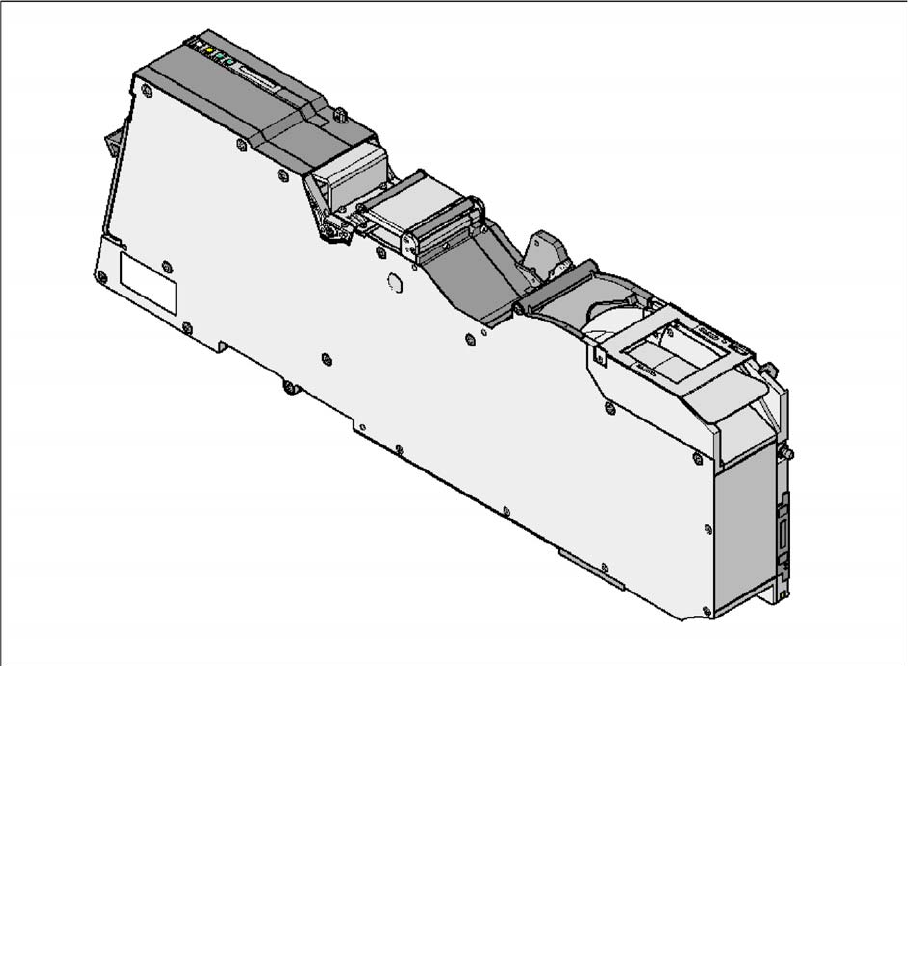

Tape feeder module 72 mm X
Item no. for the feeder module with splice sensor: 00141297-xx
Width: 81.6 mm
Used locations at the component table: 7
Conveyor pitch: 4 - 80 mm adjustable in 4 mm steps
Changeover time for the component tape: < 45 s
Changeover time for the offline setup feeder mod-
ule on the machine:
< 15 s
Overview of X Feeder Modules
Overview of Types 88 mm X
44 User Manual X Feeder Modules SIPLACE Family
3.5.10 88 mm X
Tape feeder module 88 mm X
Item no. for the feeder module with splice sensor: 00141298-xx
Width: 105.2 mm
Used locations at the component table: 9
Conveyor pitch: 4 - 96 mm adjustable in 4 mm steps
Changeover time for the component tape: < 45 s
Changeover time for the offline setup feeder mod-
ule on the machine:
< 15 s
