Overview of X Feeder Modules Overview of Types 88 mm X 44 User Manual X Feeder Modules SIPLACE Family 3.5.10 88 mm X Tape feeder modul e 88 mm X Item no. for the feeder mo dule with splice sensor: 00141298-xx Width: 105.…
Overview of X Feeder Modules
72 mm X Overview of Types
User Manual X Feeder Modules SIPLACE Family 43
3.5.9 72 mm X
Tape feeder module 72 mm X
Item no. for the feeder module with splice sensor: 00141297-xx
Width: 81.6 mm
Used locations at the component table: 7
Conveyor pitch: 4 - 80 mm adjustable in 4 mm steps
Changeover time for the component tape: < 45 s
Changeover time for the offline setup feeder mod-
ule on the machine:
< 15 s
Overview of X Feeder Modules
Overview of Types 88 mm X
44 User Manual X Feeder Modules SIPLACE Family
3.5.10 88 mm X

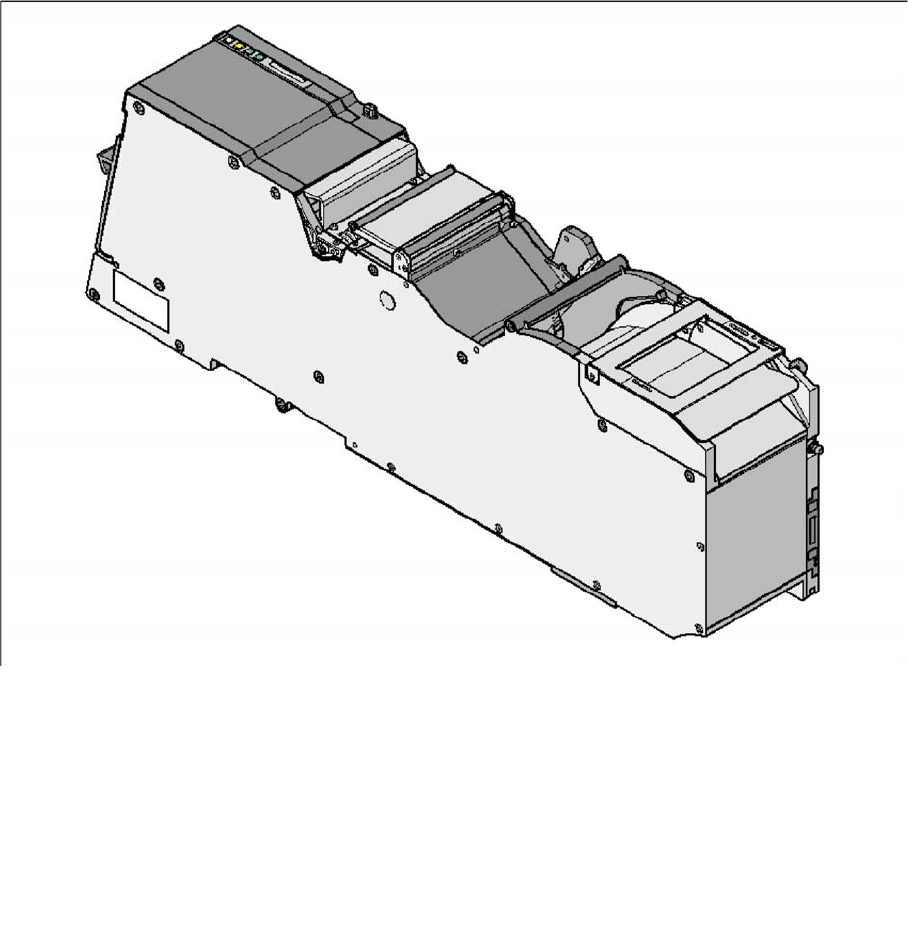

Tape feeder module 88 mm X
Item no. for the feeder module with splice sensor: 00141298-xx
Width: 105.2 mm
Used locations at the component table: 9
Conveyor pitch: 4 - 96 mm adjustable in 4 mm steps
Changeover time for the component tape: < 45 s
Changeover time for the offline setup feeder mod-
ule on the machine:
< 15 s
Operating Tape Feeder Modules
Inserting the Feeder Module into the Component Table
User Manual X Feeder Modules SIPLACE Family 45
4 Operating Tape Feeder Modules
4.1 Inserting the Feeder Module into the Component Table

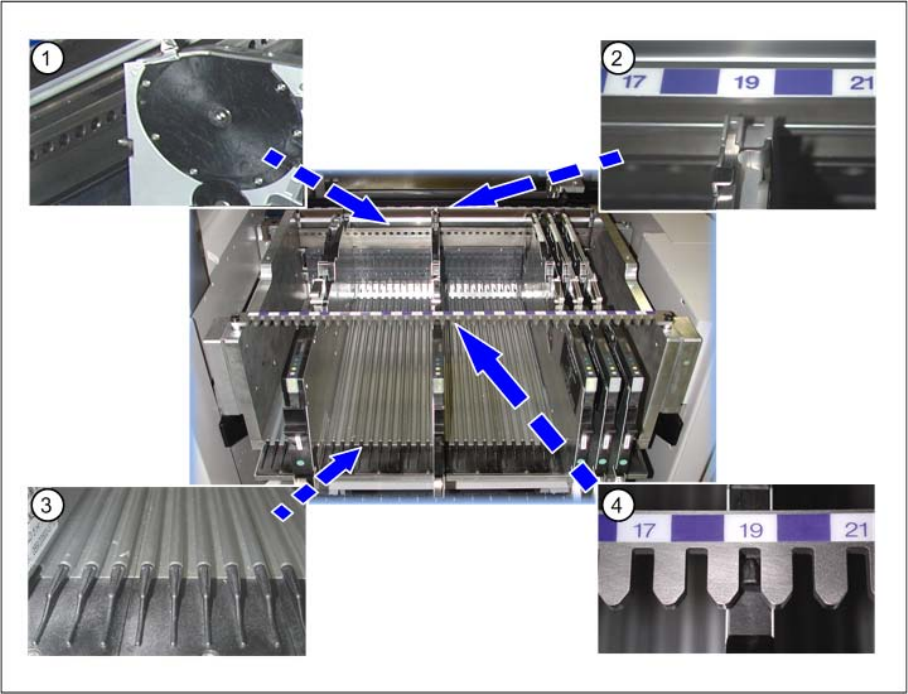

The following figure gives an overview of the component table elements that have to be considered for
correctly inserting the feeder modules.
Legend
1. Centering holes – front
2. Centering – front
3. Omega profile = Low feeder guide rails
4. Centering bar – rear
