Operating Tape Feeder Modules
Regular Maintenance Regular Maintenance on 2x8 mm Feeder Modules
76 User Manual X Feeder Modules SIPLACE Family
4.5 Regular Maintenance
4.5.1 Regular Maintenance on 2x8 mm Feeder Modules
Emptying the Foil Container
During feeder module operation, the cover foil is stripped
off the tape and pressed through the foil removal into the
foil container. As operations proceed, the foil container
fills up and the foil flap at the back of the feeder module
is subjected to greater pressure.
The foil should now be removed and disposed of.
However, do not tear off the foil by pulling on it as it could
then be caught between the foil disposal rolls and might
cause feeder module malfunctions.
►Cut the cover foil with a pair of scissors or with the
help of the integrated blade. While doing this, pull the
foil just slightly upwards, against the blade.
►Now close the foil flap again.
A) Foil flaps open
1. Blade for left track
2. Blade for right track
B) Foil flaps closed
Operating Tape Feeder Modules
Regular Maintenance on 8 - 88 mm Feeder Modules Regular Maintenance
User Manual X Feeder Modules SIPLACE Family 77
4.5.2 Regular Maintenance on 8 - 88 mm Feeder Modules

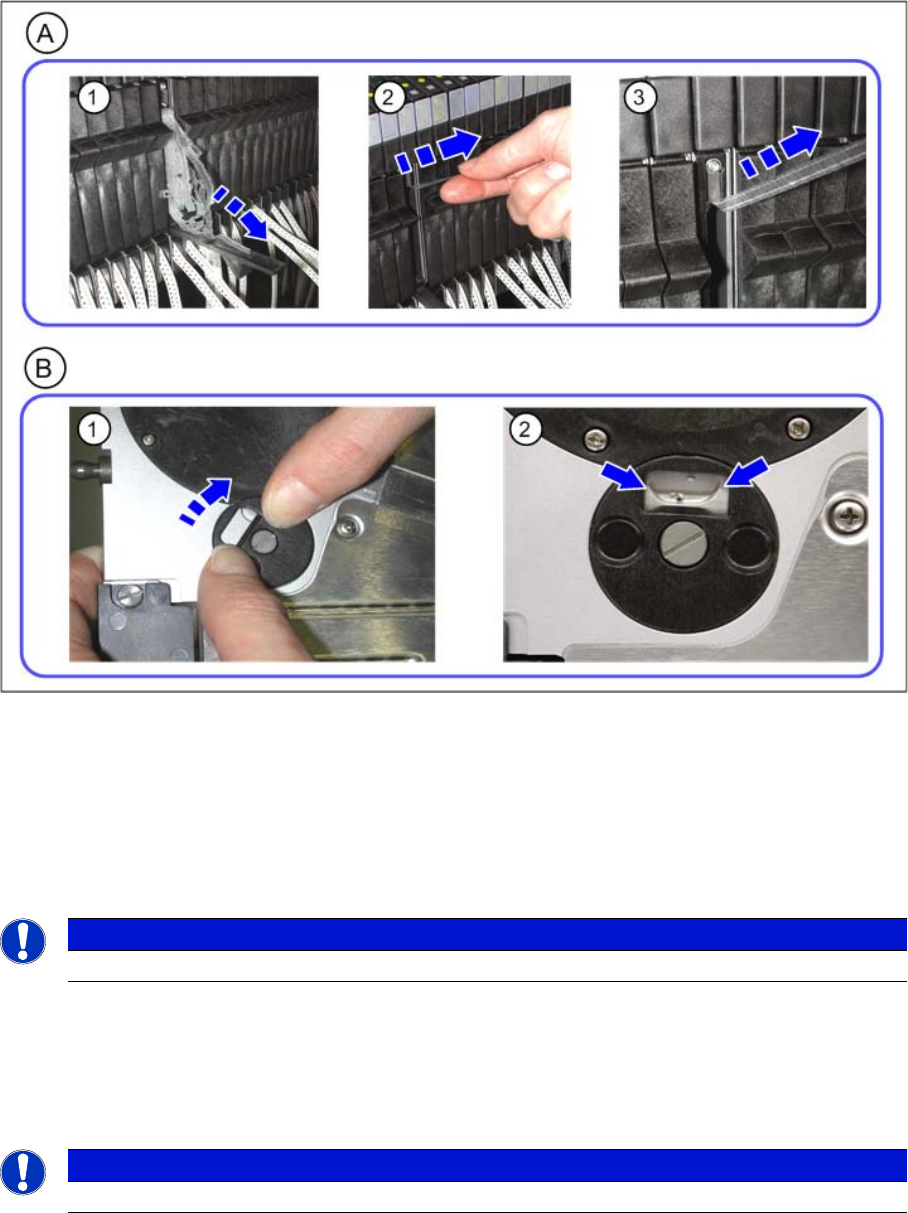

A) Emptying the Foil Container
►(1) Open the foil container flap.
►(2) Pull out the cover foil.
►(3) Cut off the cover foil at the integrated blade.
►Close the foil container flap.
B) Empty Component Disposal
►(1) Open the component disposal.
►(2) Empty the component disposal.
►Close the component disposal.
NOTICE
The foil container should be emptied after each splicing of a new tape.
NOTICE
The component disposal should be emptied once per week.
